| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | CE CNEX ISO9001-2015 |
| Model Number: | YT-95H-C2H4-A |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton Box |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500PCS/DAY |
| Detected Gas: | Ethylene, C2H4 | Measure Range: | 0-1ppm,0-5ppm,0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm,0-500ppm. 0-1000ppm, 0-2000ppm, 0-5000ppm |
|---|---|---|---|
| Color: | Blue | Packing: | Paper Box |
| Install Method: | Wall-mounted, Piping-type, Flow-type | Power: | 12-36Vdc |
| Highlight: | voc gas analyzer,voc monitoring equipment |
||

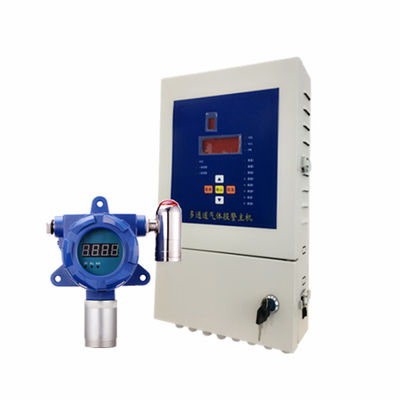

Controller VOC Gas Detector C2H4 Ethylene Gas Alarm for Fruit Ripening
Application areas: ripening of fruits and vegetables, cold storage, agricultural research institutes, chemical plants. Our C2H4 gas detector is with wide measure ranges.
Characteristics:
1. Standard equipped with three-wire system 4-20mA analog output; relay output; RS485 output.
2. Unique infrared ray control function, which can non-contacted control the device.
3. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
4. Alarm Mode is sound and light, alarm point is settable.
5. Explosion-proof design, fast, reliable and stable.
6. Explosion-proof grade: Ex dⅡCT6
7. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
8. Detachable probe/gas cell: It is very easy to calibrate and replace sensor
Funtions:
1. Monitor the Ethylene, C2H4 gas in environment or pipeline.
2. With self-calibration and zero calibration function, makes the detection more accurate and reliable.
3. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
4. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification. (optional)
5. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices. (optional)
6. Working Voltage:24V DC
7. Case: die-cast aluminum
Specification
Gas detected | Ethylene, C2H4 | ||
Detection principle | PID, Electrochemistry | ||
Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
Measure range | 0-1ppm,0-5ppm,0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm,0-500ppm. 0-1000ppm, 0-2000ppm, 0-5000ppm | ||
Resolution | 0.001ppm, 0.01ppm, 0.1ppm, 1ppm | ||
Precision | ≤± 1% FS, 2-3%FS | ||
Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
Response time | ≤10S | Recovery time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%(FS/year) | Display | High-light nixie tube display |
Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm |
Temperature | -20 to 50°C | Humidity | 0-95%RH |
Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
Alarm | Sound, light | Operating time | 24H |
Dimensions | 180*150*90mm | Weight | ≤2kg |
