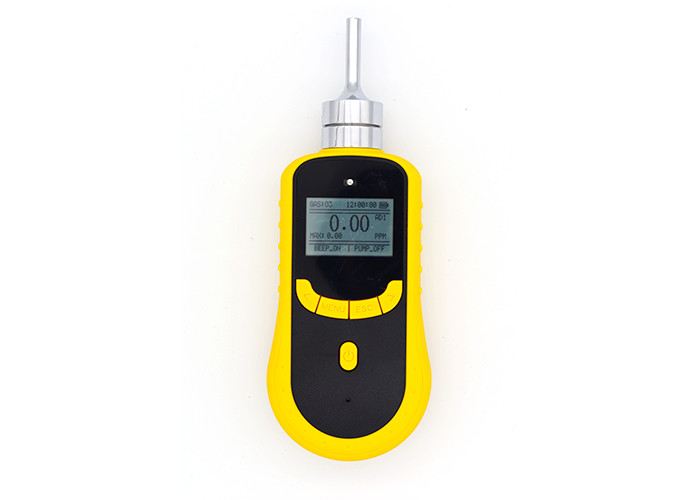

Portable VOC Gas Detector C8H8 Styrene Gas Detection Equipment With PID Sensor

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX,ISO9001,CE
Model Number: SKY2000-C8H8
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Detected Gas: C8H8 Styrene Measure Range: 0-50ppm、200ppm、1000ppm、10000ppm,0-100PPM,0-200ppm,0-1000ppm、0-6000ppm
Sampling Method: Pumping Suction Alarm Type: Sound, Light, Vibration
Size: 205*75*32mm Weight: 300g
Charging Method: Power Adapter, USB Cable Packing: Aluminum Suitcase
High Light:

pid voc detector

,

voc monitoring equipment


Product Description



Portable VOC Gas Detector C8H8 Styrene Gas Detection Equipment With PID Sensor



YuanTe's C8H8 Styrene gas sensor are usually used in School, chemical factories, new material companies,etc.



Specifications

Gas Detected    CH4S CH3SH Methyl Mercaptan
Detection principle Electrochemistry/PID
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range  0-50ppm,200ppm,1000ppm,10000ppm,0-100PPM,0-200ppm,0-1000ppm,0-6000ppm
Resolution 0.01ppm,0.001ppm,0.1ppm,1ppm
Precision ≤± 2% F.S.
Signal Output

High-speed data transmission by USB, available for data downloading and
printing (optional function)

Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT4 Degree of protection IP66
Alarm mode Sound, light, vibration Operating time 100h(pump off)
Dimensions 205*75*32mm Weight 300g


Functions:

1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the C8H8 Styrene concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.





Why choose YuanTe's gas detector?



1.Strict Quality Control

Once a detector is finished production, it must pass one final rigorous review process and a tough line of questioning: Have all design review issues been addressed? Does the product meet Safegas' standard of excellence? Have all approvals been secured? Can it be manufactured at a cost that provides genuine value to a customer? Hence we will do aging test on all the raw material and PCB, and during production we will calibrate all the detectors well, last but the most important, we have professional QC team to inspect the detectors pc by one pc before shipment. If all the tests are passed, then is the product ready to bear the Safegas' name.



2.Excellent Sales Service

If the customers don't know how to operate our detectors, we will provide 24h online service by email, phone calls or videos. If customers want to sell our detectors in domestic market as distributors, first we will support sample orders for customers to test the detectors, and then we will provide training classes to teach them how to install and sell the detectors. The training classes including a series of literature guidance, video course, and company visit.

All the detectors are under warranty of 12months, free charge of repair under correct operation. Therefore, no matter you are the end users or distributors of our detector, you don't need to worry anything about the quality or after-sales service.
