Built In Pump Multi Gas Detector Universal CO EX H2S O2 CO2 Coal Mine Detector

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX,ISO9001,CE
Model Number: SKY2000-M5
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Detected Gas: CO EX H2S O2 CO2 Measure Range: 0-1000ppm, 0-30%VOL, 0-100ppm, 0-100%LEL, 0-5000ppm
Sampling Method: Pumping Suction Alarm Type: Sound, Light, Vibration
Size: 205*75*32mm Weight: 300g
Charging Method: Power Adapter, USB Cable Packing: Aluminum Suitcase
High Light:

multi gas meter

,

multi gas monitor


Product Description

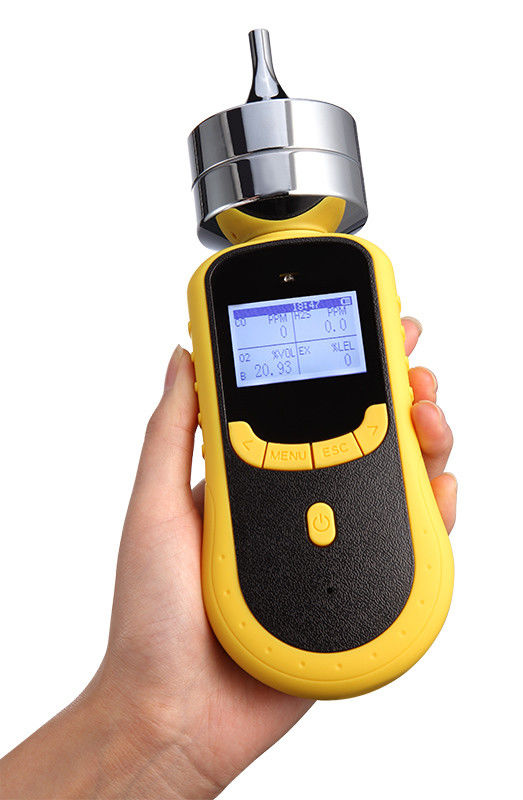

Built-in pump Multi Gas Detector Universal CO EX H2S O2 CO2 Coal Mine Detector



Characteristics and functions:


1. One press to restore factory setting, free from the bother of miss-operation

2. Self-calibration and zero calibration functions, makes the detection more accurate and reliable

4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4
5. Monitor the CO O2 H2S EX CO2 gas concentration in environment and enclosed space and alarm
6. Supports Chinese and English operation, easy to shift

3. Gas concentration unit ppm and mg/m3 can be shifted quickly

7. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen
8. Temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures
9. Two stages alarm with sound and light, alarm point is settable
10. Rechargeable Lithium-polymer battery of large capacity

11. (Optional) High speed data transmission by USB, which can download and print data.


Specifications

Gas Detected  CO O2 H2S EX CO2
Detection principle Electrochemistry, Catalytic Combustion
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 0-1000ppm, 0-30%VOL, 0-100ppm, 0-100%LEL, 0-5000ppm
Resolution CO: 1ppm, O2: 0.01%VOL, H2S: 0.1ppm, EX: 1%LEL, CO2: 1ppm
Precision ≤± 2% F.S.
Signal Output

High-speed data transmission by USB, available for data downloading and
printing (optional function)

Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT4 Degree of protection IP66
Alarm mode Sound, light, vibration Operating time 100h(pump off)
Dimensions 205*75*32mm Weight 300g



Built In Pump Multi Gas Detector Universal CO EX H2S O2 CO2 Coal Mine Detector 0



Our service:

1.For all our customers, we guarantee one year warranty, and life-long maintenance.

2.All inquiries will be replied in 24 hours.

3.We will provide technical support, our engineers will help to solve the problems you met.

4.We can provide OEM service.

5.We are manufacturer with own factory, welcome to visit our factory.

6.All products will be well checked and well packed before shipment, and qualification certificatewill be provided.
