High Precision Multi Gas Detector Handheld Infrared Ray Sensor CH4/CO2 For Biogas Plant

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX,ISO9001,CE
Model Number: SKY6000-M2
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Detected Gas: CH4/CO2 Measure Range: 0-100%vol, 0-100%vol
Sampling Method: Pumping Suction Alarm Type: Sound, Light, Vibration
Charging Method: Power Adapter, USB Cable Resolution: 1ppm, 1ppm
High Light:

multi gas meter

,

multi gas monitor


Product Description

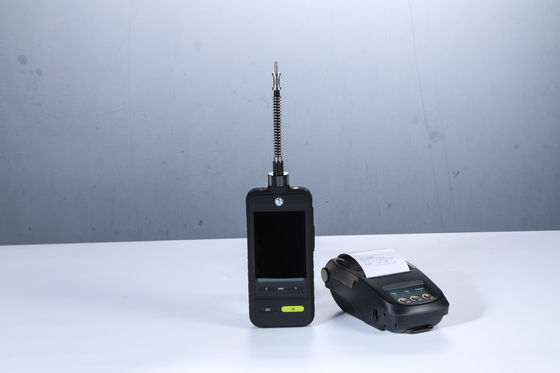

Handheld High Precision Multi Gas Detector with Infrared Ray sensor CH4/CO2 for Biogas Plant





Product Overview


The Sky6000 Series Gas Detector is a Portable Equipment Which Can Be Used in Scientific Research, University, Complex Working Environment and so on. The Sky6000 Series Gas Detector Can Detect Up to Four Gases at The Same Time. It Can Fuse Electrochemistry, Catalysis, Thermal Conduction, Infrared, Photoion, Ultraviolet and Other Detection Principles. We are Committed to Providing Customers With The Most Reliable, Accurate and Safe Gas Detection Instrument.



Specifications



Gas Detected CH4/CO2
Detection principle Electrochemistry/Catalytic combustion
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 0-100%VOL, 0-100%VOL
Resolution 0.01%VOL, 0.01%VOL
Precision ≤± 2% F.S.
Signal Output

High-speed data transmission by USB, available for data downloading and
printing (optional function)

Response Time ≤10S Recovery Time ≤10S
Network frequency 2.4G high frequency Pressure measurement 0.5-2.0 bar (optional)
Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof Ex ic IIC T3 Gc Degree of protection IP65
Alarm mode Sound, light, vibration Operating time 100h(pump off)
Dimensions 270*75*41mm Weight 400g

Product Advantages

1.Plus spring protection layer, 360 degree bendable and hardly deformed. Specially designed flashlight button which can turn on with one button and operator can detect with lighting in the dark environment.
2.With pinhole type one-key recovery button, can restart the instrument with one button for recovering caused by misoperation
3.Integrated built-in pumping gas detector can detect and display one or more gases simultaneously.








High Precision Multi Gas Detector Handheld Infrared Ray Sensor CH4/CO2 For Biogas Plant 0
