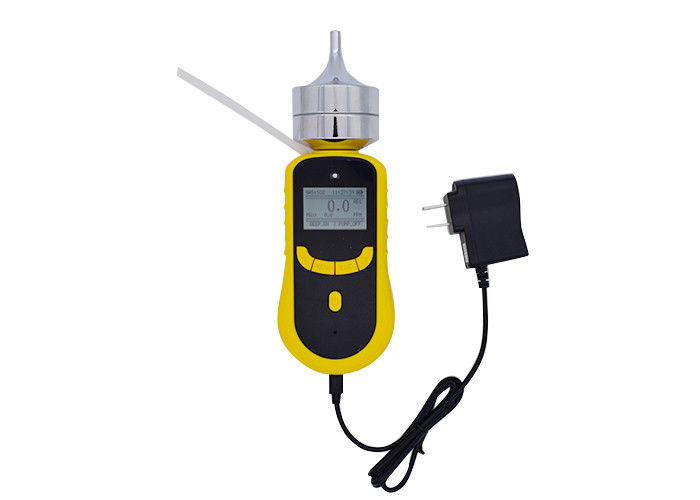

High Sensitivity Multi Gas Detector Portable Gas Analyzer For NH3 O2 LEL

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: ATEX, CNEX, ISO9001, CE
Model Number: SKY2000-M3
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Product: NH3 O2 LEL Multi Gas Detector Measure Gas: NH3 O2 LEL
Sampling Method: Pumping Suction Alarm Type: Sound, Light, Vibration
Size: 205*75*32mm Weight: 300g
Charging Method: Power Adapter, USB Cable Packing: Aluminum Suitcase
High Light:

multi gas meter

,

multi gas monitor


Product Description



High Sensitivity Sensor Portable Handheld Multi Gas Detector For NH3 O2 LEL


It has large LCD screen and two instant alarms with audio/visual and vibratory indicators, making it a favorite indicator for operators working in demanding industrial environments.

Specifications

Gas Detected NH3 O2 LEL
Detection principle Electrochemistry for NH3 O2, Catalytic Combustion for LEL
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 0-100ppm, 0-30%VOL, 0-100%LEL
Resolution 0.01ppm, 0.01%VOL, 1%LEL
Precision ≤± 2% F.S
Signal Output

High-speed data transmission by USB, available for data downloading and
printing (optional function)

Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT4 Degree of protection IP66
Alarm mode Sound, light, vibration Operating time 100h(pump off)
Dimensions 205*75*32mm Weight 300g


Functions:

1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the CO H2S CO LEL gas concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.

 High Sensitivity Multi Gas Detector Portable Gas Analyzer For NH3 O2 LEL 0
