Portable UK Sensors 0.001ppm O3 Ozone Gas Meter CE ATEX

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX, ISO9001, CE, CNEX
Model Number: SKY2000-O3
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 1 working days
Payment Terms: Credit Card, Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Detected Gas: O3 Ozone Measure Range: 0-1ppm, 5ppm, 10ppm, 50ppm, 100ppm, 200ppm, 1000ppm, 0-2000ppm
Sampling Method: Pumping Suction Alarm Mode: Sound And Light
Resolutions: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm Package: Aluminum Suitcase
Protection Level: IP66 Charger: Standard Accessory
Precision: 1%FS
High Light:

0.001ppm Toxic Gas Monitor

,

O3 Ozone Gas Analyzer


Product Description

ATEX CE Portable O3 Ozone Gas Meter Toxic Gas Detector 0.001ppm UK Sensors Highest precision



To detect the Ozone O3 is very important in hospital, research institute or different disinfection environments. It’s very necessary to detect the Ozone level after disinfection and disinfection process. This ozone gas meter is accurate and can be trusted for different applications.

SKY2000 Ozone gas meter is a single gas detector with high performance-price ratio. And this ozone gas meter adopts high quality imported sensors and embedded MCU micro-control technology. It has fast response speed, high measurement accuracy, good stability and repeatability. Meanwhile, we will calibrate the ozone gas meter with O3 generator to keep its high precision, the lowest detection data is 0.001ppm for ozone gas meter.



Ozone gas meter Specifications



Gas Detected O3 Ozone
Detection principle Electrochemisty
Sampling Method Pumping Suction
Measure Range 0-1ppm, 5ppm, 10ppm, 50ppm, 100ppm, 200ppm, 1000ppm, 0-2000ppm
Resolution 0.001ppm, 0.01ppm, 0.1ppm, 1ppm
Precision ≤± 1% F.S for high precision sensor, ≤± 2% F.S for normal sensor
Signal Output High-speed data transmission by USB, available for data downloading and
printing (optional function)
Charging Time

4~6h

Working Time 14h

Battery

3.7V

Capacity

2300mAh

Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof II 2G Ex ia IIC T4 Ga IP66 Degree of protection IP66
Alarm mode Sound, light, vibration

Housing Material

ABS+ leather case
Dimensions 131*83*35mm Weight

240g





Ozone gas meter Characteristics



1. Employing original imported first-class brand sensor.
2. (optional) High speed data transmission by USB, which can download and print data.
3. LCD dot matrix display, the gas type, unit, concentration,
4. Local time can be showed on the screen.
5. Support Chinese and English operation, easy to shift.
6. The gas concentration unit PPM and mg/m3 can be shifted quickly. Built-in micro sampling pump, 10 grades of suction are available.

7. Explosion-proof certification, explosion-proof grade: II 2G Ex ia IIC T4 Ga IP66.



Ozone gas meter functions



1. Monitor the specified gas concentration in environment and enclosed space and alarm.
2. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
3. One press to restore factory setting, free from the bother of mis-operation With temperature and pressure compensation, this is able to realize gas concentration compensation under conditions of different temperatures or pressures.
4. Two-stage alarm with sound and light, alarm point is settable.
5. Rechargeable lithium polymer battery of large capacity.
6. Employing pumping sampling method and the pumping suction is adjustable.
7. Special engineering plastics housing of high intensity, anti-skipping,
8. Water-proof, dust-proof, explosion-proof.
9. Elegant and exquisite aluminum alloy suitcase

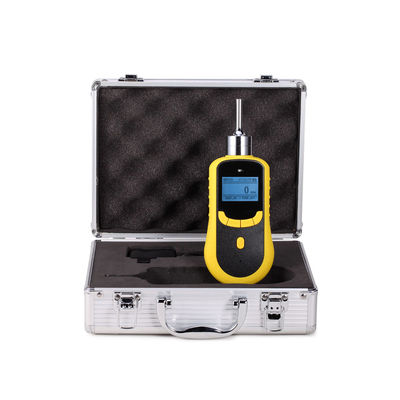

Portable UK Sensors 0.001ppm O3 Ozone Gas Meter CE ATEX 0

Portable UK Sensors 0.001ppm O3 Ozone Gas Meter CE ATEX 1



Ozone gas meter standard accessories:



  • SKY2000 ozone gas meter
  • Aluminum suitcase
  • A charging adapter
  • User manual
  • Qualification certificate
  • Calibration certification



Ozone gas meter optional accessories:



  • USB cable and sofware for Storage function
  • Hose
  • Probe
  • Leather case







Ozone gas meter Factory information



Established in 2010, SHENZHEN YUANTE TECHNOLOGY CO.,LTD, is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector” as the core product, we have completed production line and solutions according to different industries, such as: Oil, Chemical, Medicine, Energy, Environment protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Safegas becomes the influential supplier for gas detection equipment and system in the domestic and overseas market.

Shenzhen YuanTe is gathered by a group of industry experts who are experienced in gas detectors R&D, manufacturing and investment. Every year, 5% of Shenzhen YuanTe’s income will be invested as R&D fund. To select out these new product, new technology and new services which will meet market demand is the most important task for R&D team.

For manufacturing, we have independent production workshop, modern production equipment, aging room, calibration room and professional staff.

For marketing, we implement flexible and competitive price and diversified sales strategy. We penetrate the market by various methods such as OEM, ODM, agent and direct selling, and ensure profit of every partner.

For service, we provide 24h/day service to users, rapid in response, technical guidance in place, convenience in repair and maintenance. At present, detectors are with ATEX CE EMC international certifications, Company has got ISO9001-2015 Quality management system certificate.



Portable UK Sensors 0.001ppm O3 Ozone Gas Meter CE ATEX 2Portable UK Sensors 0.001ppm O3 Ozone Gas Meter CE ATEX 3

Portable UK Sensors 0.001ppm O3 Ozone Gas Meter CE ATEX 4



FAQ

Q1: Are you factory or trade company?
A1: We are factory for different gas detectors, especially ozone gas meter.


Q2: What about the payment method?
A2: Credit card, T/T and Paypal are available for ozone gas meter.


Q3: Does your company accept customization?
A3: We do customizing service for customers.

For example, we can put your company name, company logo, company contact information on the ozone gas meter.


Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of ozone gas meter, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.


Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for ozone gas meter



Q6: How about the Calibration?

A5: Before send out, we will calibrate each ozone gas meter well with O3 generator.
