Mini Size 0-100% LEL Portable Combustible Gas Detector With ABS And Leather Case

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-1200H-S-LEL
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Color box and carton
Delivery Time: 3 working days
Payment Terms: T/T
Supply Ability: 3000 pieces/month
Detail Information
Model Number: YT-1200H-S-LEL Detected Gas: LEL
Measure Range: 0-100%LEL Resolution: 1%LEL
Sensor Principle: Catalytic Combustion Application: Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking
Housing Material: ABS+ Leather Case Package: Color Box And Carton
High Light:

100% LEL Combustible Gas Detector

,

2300mAh Combustible Gas Detector

,

IP65 Portable Methane Gas Detector


Product Description

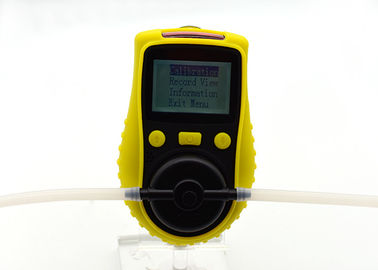

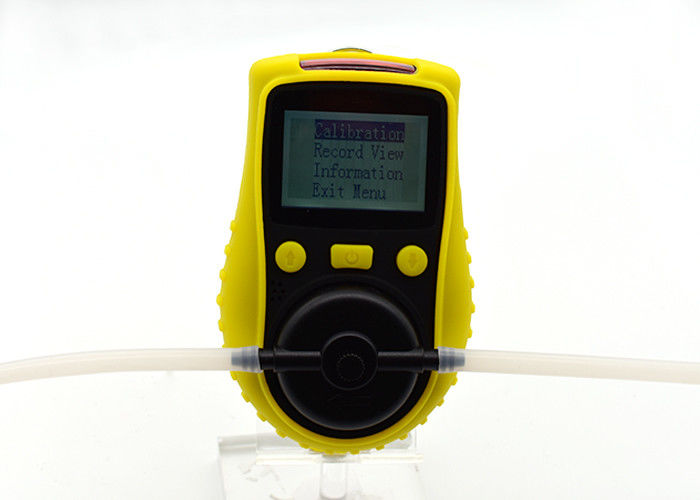

Mini Size 0-100% LEL Portable Combustible Gas Detector With ABS And Leather Case



Product Overview



YT-1200H-S is small-size, safe and energy saving, with English display and easy operation. The instrument has 3 buttons, a liquid crystal display and the associated alarm device (alarm light, buzzer and vibration). The instrument itsself also has real-time storage function, can record the alarm status and in real time.

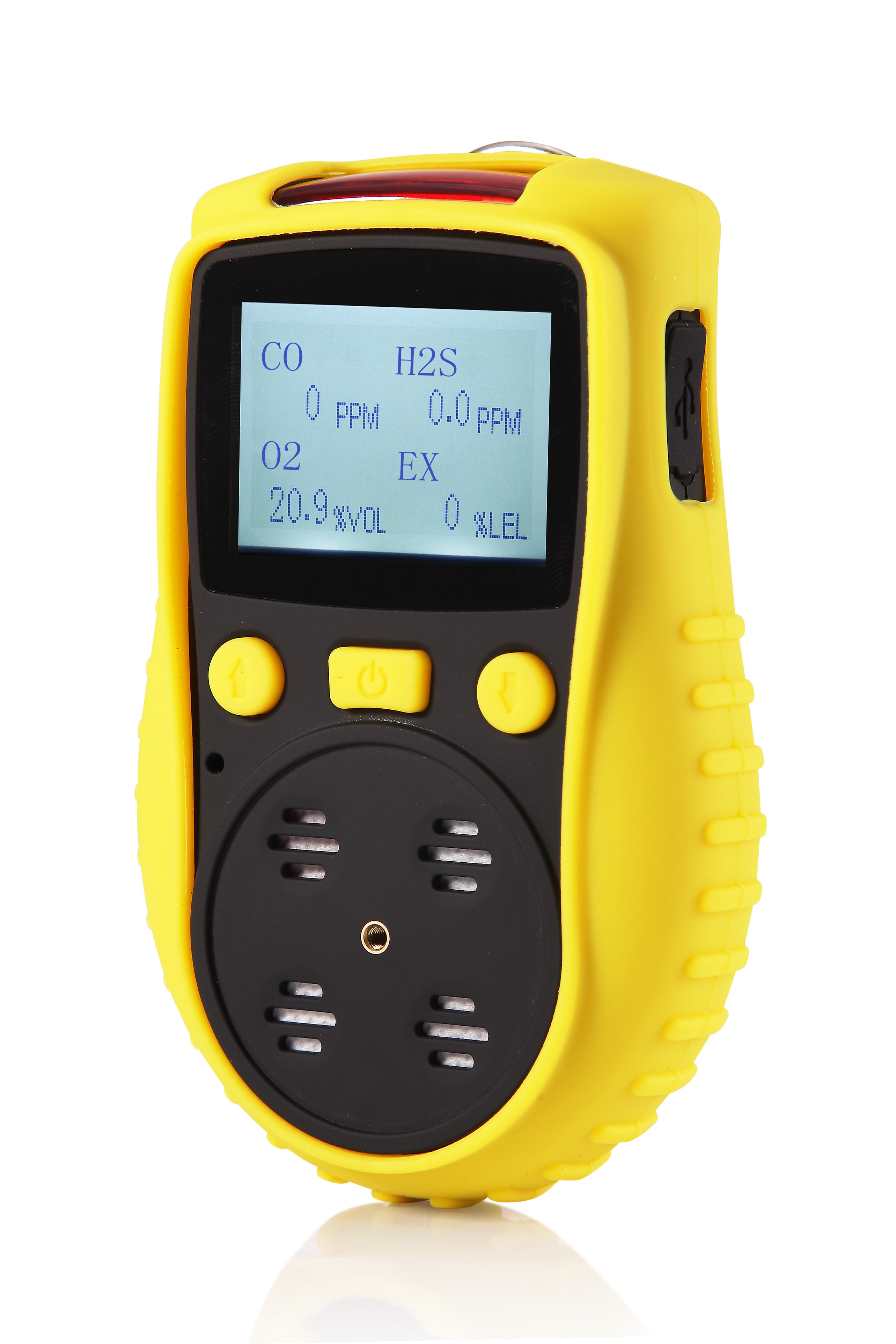

The instrument can be customized according to customer needs, single gas, 2 in1, 3 in1, 4 in1 , can display up to 4 kinds of gas values, when the gas to be tested exceeded or below the set standard, the instrument will automatically alarm, in sound, light, vibration alarm wats, the alarm can be removed by manual switch. It is widely used in power plant, petrochemical, pharmaceutical, building, mine, metallurgical coking to prevent the occurrence of accidents. It's a compound gas detection alarm which can be configurated flexiblely.
        Mini Size 0-100% LEL Portable Combustible Gas Detector With ABS And Leather Case 0

Specification



Gas Detected LEL
Detection principle Catalytic Combustible
Sampling Method diffusion
Measure Range 0-100%LEL
Resolution 1%LEL
Precision ≤± 5% F.S.
Data recording

Storage capacity of over one hundred thousand sets.

Interval time ranges from 10-3600seconds are settable.(Optional function)

Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(F.S/year) Display Monochrome dot matrix display
Operating language Chinese/English Gas unit ppm, mg/m3,%VOL,%LEL
Temperature -20~50 Humidity 0-95%RH
Explosion-Proof ExiaCT3 Degree of protection IP65
Alarm mode Sound, light, vibration Operating time 14 hour continuously
Dimensions 131*83*35mm Weight 240g
Charger Travel charger with USB Charging time 4-6 hours





Other normal gas types (Gases are not listed can be customized):
Flammable gas(EX)
Oxygen(O2)
Carbon monoxide(CO)
Hydrogen sulfide(H2S)
Ammonia(NH3)
Chlorine(CL2)
Hydrogen Chloride (HCL)
Nitric oxide(NO)
Nitrogen dioxide(NO2)
formaldehyde(CH2O)
Ozone(O3)
Carbon dioxide(CO2)



More Application

  • Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy,Health Care, Foodstuff, Antiseptic.
  • Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
  • Livestock Farm, Refuse Processing Plant, Perm Place. Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics,Brewing And Fermentation, Agricultural Production.
