IP65 High Grade Protection Fixed Combustible Gas Leak Detector With RS485 Output Signal

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-95H-LEL
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-95H-LEL Detected Gas: LEL
Measure Range: 0-100%LEL Resolution: 1%LEL
Install Method: Wall-mounted, Piping Type, Flow-type Power Supply: 24V DC
Gross Weight: 3 KG Product Size: 180*150*90mm
Warranty: 1 Year
High Light:

IP65 Combustion Gas Leak Detector

,

1%LEL Combustion Gas Leak Detector

,

RS485 Combustible Gas Analyzer


Product Description

IP65 High Grade Protection Fixed Combustible Gas Leak Detector With RS485 Output Signal



Company Profile



Shenzhen YuanTe Technology Co., Ltd. is a high-tech enterprise integrated research and development, manufacturing and service of gas detectors and gas analyzers. By independent research and development, cooperative development and learning the latest developed countries’ technologies, YuanTe has guaranteed its leading position domestically and in line with foreign counterparts in its products and technologies. We welcome distribution agent, OEM, ODM. YuanTe would like to join hands with you to create a better future.




Product Overview

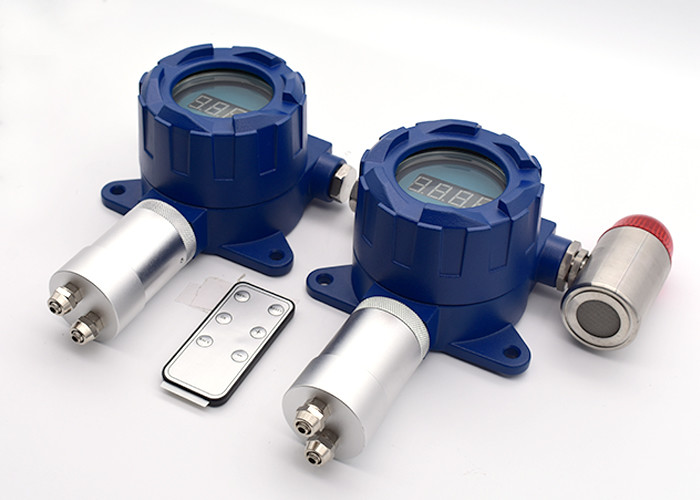

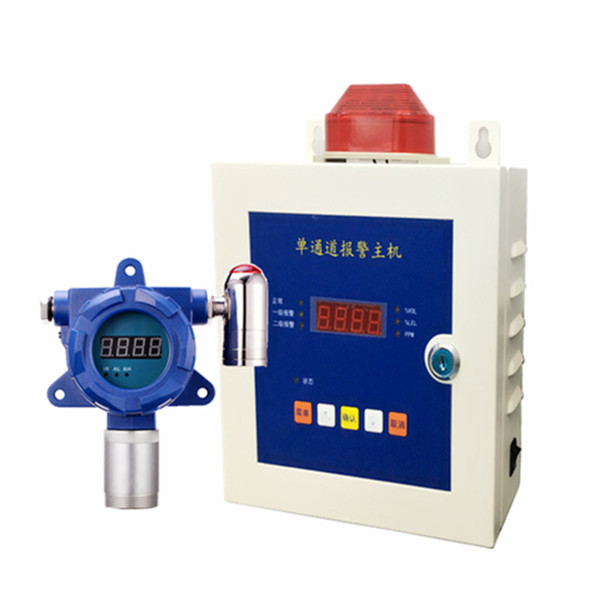

YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations

IP65 High Grade Protection Fixed Combustible Gas Leak Detector With RS485 Output Signal 0



Product Advantages

  • Employing overseas original sensor.
  • Tandard equipped with three-wire system 4-20mA analog output;
  • relay output; RS485 output (optional)
  • Unique infrared ray control function, which can non-contacted controlthe device.
  • Being compatible with all kinds of controlled alarms, PLC, DCS and
  • other control system, can be remote monitored.
  • Explosion-proof design, fast, reliable and stable.
  • Explosion-proof grade: Ex dⅡCT6
  • With self-calibration function and three standard keys will be used to
  • realize on-site maintenance.


Specification

Gas detected LEL
Detection principle Catalytic combustion
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range 0-100%LEL
Resolution 1% LEL
Precision ± 2-5% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex dⅡCT6 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg





More Application

  • Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy,Health Care, Foodstuff, Antiseptic.
  • Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
  • Livestock Farm, Refuse Processing Plant, Perm Place. Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics,Brewing And Fermentation, Agricultural Production.
