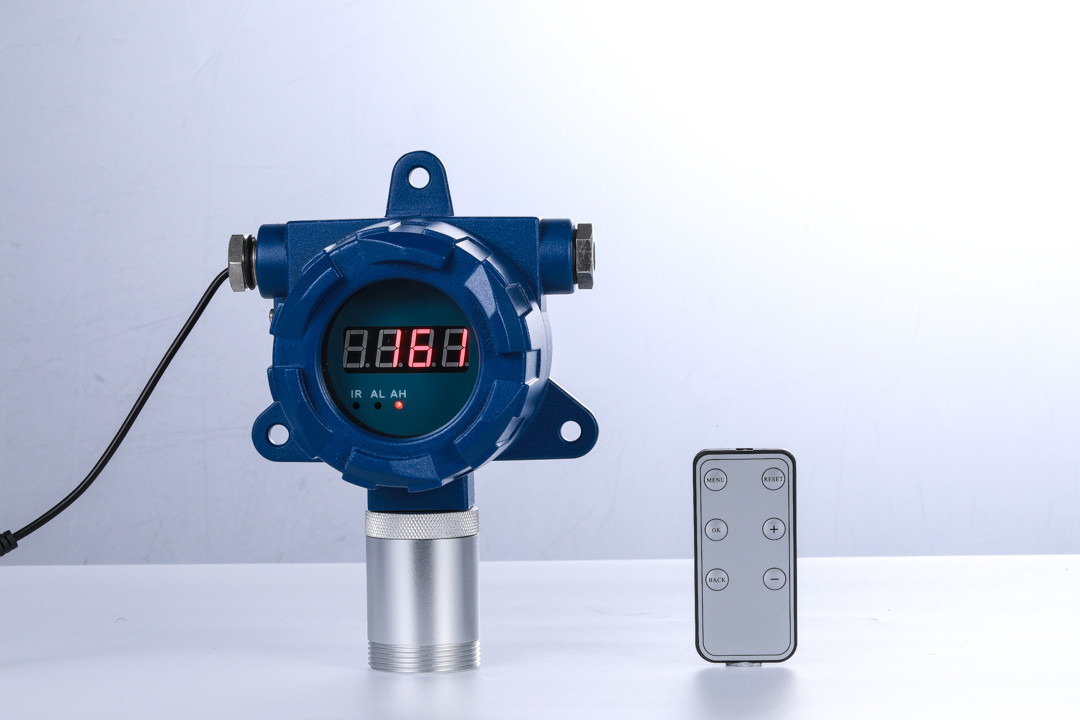

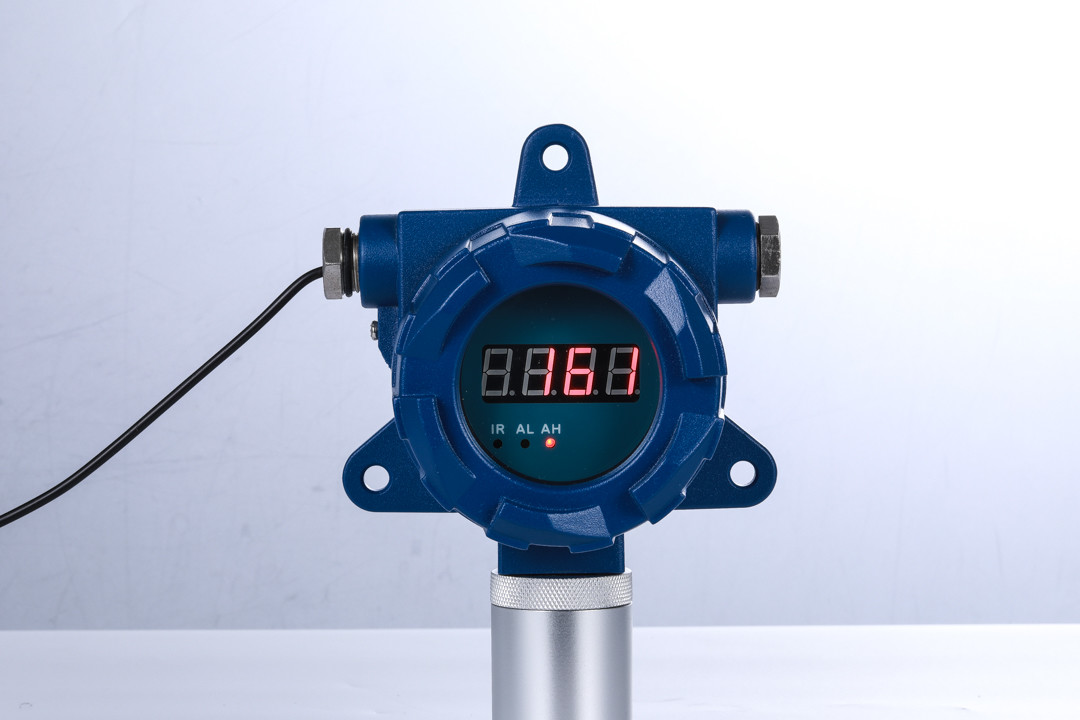

ATEX Wall Mounted 20mA 0-10PPM Cl2 Gas Detector

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-95H-CL2
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-95H-CL2 Detected Gas: CL2
Measure Range: 0-10/20/50/100PPM Resolution: 0.001PPM, 0.01PPM
Install Method: Wall-mounted, Piping Type, Flow-type Power Supply: 24V DC
Gross Weight: 3 KG Product Size: 180*150*90mm
Warranty: 1 Year
High Light:

10PPM Cl2 Gas Detector

,

20mA Cl2 Gas Detector

,

ATEX Wall Mounted Cl2 Detector


Product Description

Company Profile



For years, Yuante always insists on the management concept Market is Orientation; Innovation is motivation; Quality to survival; Development to growth” . With friendly, open and strict cor-porate culture and standardized management, Yuante gathers a lot of talents, and builds up the management team and R&D team. All the staff cooperates well in product development, pro-duction and maintenance, and has a deep understanding of the concept of customer oriented” , and has the service spirit through the company operation and management, to win the trust and support from customers.




Product Overview



YT-95H series gas detector is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations



Product Advantages

  • Employing overseas original sensor.
  • Tandard equipped with three-wire system 4-20mA analog output;
  • relay output; RS485 output (optional)
  • Unique infrared ray control function, which can non-contacted controlthe device.
  • Being compatible with all kinds of controlled alarms, PLC, DCS and
  • other control system, can be remote monitored.
  • Explosion-proof design, fast, reliable and stable.
  • Explosion-proof grade: Ex dⅡCT6
  • With self-calibration function and three standard keys will be used to
  • realize on-site maintenance.


Specification

Gas detected CL2
Detection principle electrochemical
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range 0-10/20/50/100PPM
Resolution 0.001PPM, 0.01PPM
Precision ± 2-5% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex dⅡCT6 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg



Big clients



_05

Other normal gas types (Gases are not listed can be customized):
Flammable gas(EX)
Oxygen(O2)
Carbon monoxide(CO)
Hydrogen sulfide(H2S)
Ammonia(NH3)
Chlorine(CL2)
Hydrogen Chloride (HCL)
Nitric oxide(NO)
Nitrogen dioxide(NO2)
formaldehyde(CH2O)
Ozone(O3)
Carbon dioxide(CO2)



More Application

  • Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy,Health Care, Foodstuff, Antiseptic.
  • Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
  • Livestock Farm, Refuse Processing Plant, Perm Place. Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics,Brewing And Fermentation, Agricultural Production.
