| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | IECEX, ATEX, ISO9001, CE, CNEX.SIL,RoHs |
| Model Number: | SKY3000-M4 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 1 working days |
| Payment Terms: | Credit Card, Western Union, T/T |
| Supply Ability: | 1000 pieces/week |
| Detected Gas: | Oxygen, Combustible Gas, Carbon Monoxide, Hydrogen Sulfide | Measure Range: | 0-30%VOL,0-100%LEL,0-1000PPM,0-100PPM |
|---|---|---|---|
| Ampling Method: | Pumping Suction | Alarm Type: | Sound, Light |
| Resolution: | 0.01%VOL,1%LEL,1PPM, 0.01PPM | Packing: | Aluminum Suitcase |
| Material: | PC + ABS | USB Port: | Micro USB Port |
| Precision: | 2%FS | ||
| High Light: | IECEX Toxic Gas Detector,LEL VOCs Toxic Gas Detector,1PPM Confined Spaces Gas Detector |
||

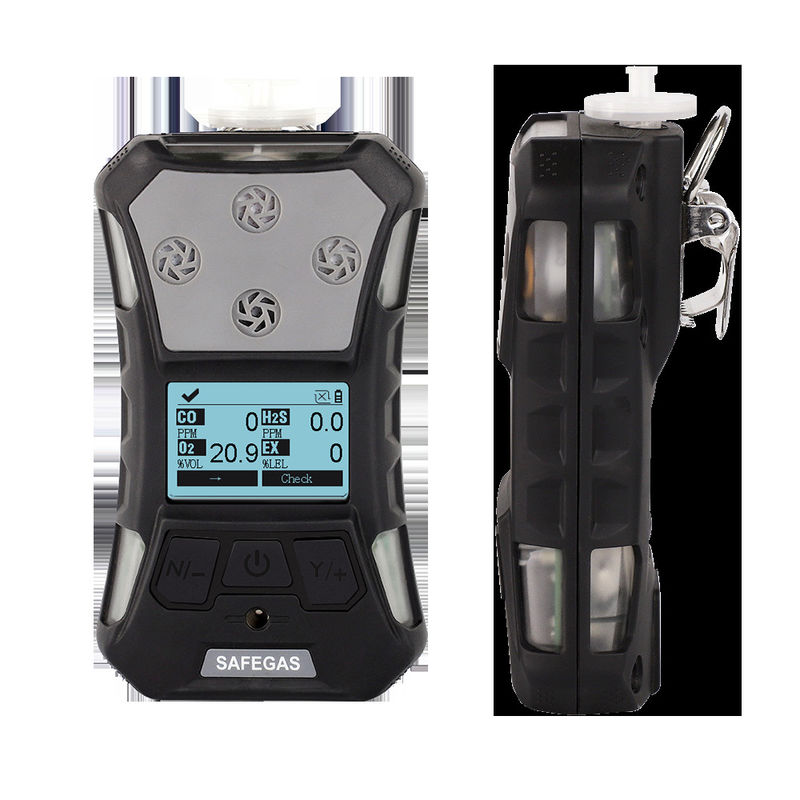

Factory Price IECEX Certificated Toxic Gas Detector For Confined Spaces Gas Leak Detection
Rugged and durable
The instrument can effectively resist a three-meter drop
The protection level of the instrument reaches IP67
The instrument has passed the EMC anti-static interference test and can work normally in the walkie-talkie environment
Explosion-proof circuit design, safe and reliable
The instrument has got IECEX, ATEX, Chinese explosion-proof certificates and the explosion-proof level reaches Exia IICT4 Ga
Multiple security protection
The man down alarm function has upgraded the safety of underground operators.
Password protection function prevents non-operators from modifying menu parameters.
With safety reminder function, sound and light vibration alarm function, let operators work without worries
The high and low alarm latched function allows the operator to better capture the sudden change of the gas concentration value.
Simultaneous measurement of multiple gases, multiple numerical display
The instrument can detect 1-4 gases at the same time
Real-time value, TWA, STEL, MAX, MIN multiple numerical display
Large screen display, flexible detection system, multiple filtering devices
The screen can be automatically turned 180 degrees, which is convenient for viewing in special operating environments
Built-in powerful sampling pump, fast detection speed
Can be connected 20m sampling tube externally, which is convenient for long-distance or confined space detection
Pump suction and diffusion dual use, to provide operators with more reliable protection
With a water trap filter, it can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields.
Powerful function, more user-friendly operation
Beautiful and friendly user interface, reasonable and easy-to-use interactive mode
Optional Bluetooth function, data can be transmitted to the mobile phone or PC in real time
Standard storage function, one-click data export, convenient for users to analyze
Unique modifiable ID identification function, convenient for users to allocate and manage the instrument
A full range of automatic detection functions, automatic prompts for voltage, pump failure alarms, etc., more comfortable to use One-key security detection, one-key open storage, automatic image flip
Support PPM and mg/m³ gas unit switch, the concentration value is automatically converted by the system
Support each channel sensor to restore the factory setting separately
Support multi-language including English.Chinese and etc.
| Sampling method | pump suction & diffusion dual-use type |
| Gas type | Oxygen, Combustible gas, Carbon monoxide, Hydrogen sulfide |
| Measure range | 0-30%VOL,0-100%LEL,0-1000PPM,0-100PPM |
| Resolution | 0.01%VOL,1%LEL,1PPM, 0.01PPM |
| Response time | ≤30 seconds |
| Precsiion | ≤±2%F.S |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched |
| Disaply | monochrome graphics (160 x96) ,screen can be automatically flipped |
| Backlight | The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
| Data record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2200mA |
| Working hours | More than 15 hours in continuous pumping mode |
| Charger | Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-proof grade | IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga |
| Certification (EU regulations) |
2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX) |
| Protection grade | IP67 |
| Working temperature | -20ºC~+50ºC |
| Humidity | 0~90%RH(no condensation) |
| Environmental pressure | 86~106Kpa |
| Size | 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
| Weight | 365g (including battery, belt clip and filter) |
Package
FAQ
Q: Are you trading company or manufacturer?
A: Yuante Instrument is an ISO9001-2015 approved manufacturer with around 10 years experiences.
Q: How long is Yuante's lead time?
A: It depends on your purchasing quantity, it's 2~3 workdays after payment generally.
Q: What about the Shipment?
A: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.
Q: What about after-sale service?
A: 12 months warranty for all kinds of products;
