| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | IECEX, ATEX, ISO9001, CE, CNEX |
| Model Number: | SKY3000-M4 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 1 working days |
| Payment Terms: | Credit Card, T/T |
| Supply Ability: | 1000 pieces/week |
| Detected Gas: | Carbon Monoxide(CO), Hydrogen Sulfide(H2S), Oxygen(o2), Combustible Gas(LEL) | Measure Range: | CO: 0-1000PPM, H2S: 0-100PPM, O2: 0-30%VOL, EX: 0-100%LEL |
|---|---|---|---|
| Ampling Method: | Pumping Suction | Alarm Type: | Sound, Light |
| Resolution: | CO: 1PPM, H2S: 0.1PPM, O2: 0.1%VOL, EX: 1%LEL | Packing: | Aluminum Suitcase |
| Material: | PC + ABS | USB Port: | Micro USB Port |
| Precision: | 2%FS | Color: | Black |
| High Light: | IECEX Multi Gas Detector,H2S Mining Gas Detector,ATEX Multi Gas Detector |
||

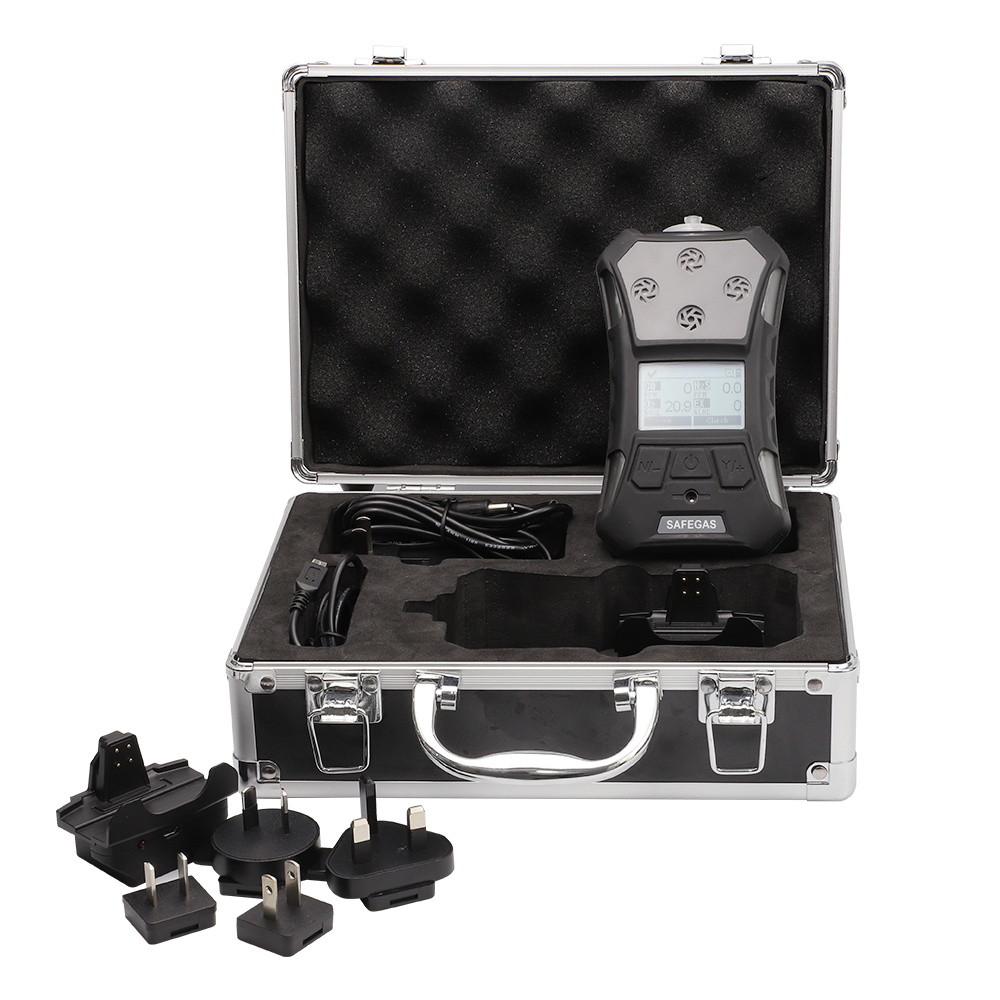

H2S CO O2 LEL Multi Gas Detector IEXEC ATEX CE Certified For Mining UK Imported Sensors
SKY3000 is a suction and diffusion dual purpose instrument. When the pump can't work, it can automatically switch to the diffusion sampling mode. And this H2S CO O2 LEL multi gas detector is with IECEX, ATEX explosion-proof certification and protection level is IP67/IP68. Meanwhile, the device can show real-time data and send alarms when the reading reaches the set value. It is also with back clip so user can conveniently carry. It is with storage function which is not only able to store data on device but also transfering data to PC by USB cable.
|
Sampling method |
pump suction & diffusion dual-use type |
|
Gas type |
Carbon monoxide(CO), Hydrogen Sulfide(H2S), Oxygen(o2), Combustible gas(LEL) |
|
Measure range |
CO: 0-1000PPM, H2S: 0-100PPM, O2: 0-30%VOL, EX: 0-100%LEL |
|
Resolution |
CO: 1PPM, H2S: 0.1PPM, O2: 0.1%VOL, EX: 1%LEL |
|
Response time |
≤30 seconds |
|
Precsiion |
≤±2%F.S |
|
Language |
English(Other languages can be customized) |
|
Automatically test and calibrate after power-on |
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
|
Unit |
PPM and mg/m³ can be switched |
|
Disaply |
monochrome graphics (160 x96) ,screen can be automatically flipped |
|
Backlight |
The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
|
Data record |
Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
|
Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
|
Battery |
3.7V rechargeable lithium battery, battery capacity 2200mA |
|
Working hours |
More than 15 hours in continuous pumping mode |
|
Charger |
Travel charger with DC interface, charging time ≥ 4 hours |
|
Explosion-proof grade |
IECEX/ATEX(II IG Ex ia IIC T4 |
|
Certification |
2004/108/EC(EMC) |
|
Protection grade |
IP67 |
|
Working temperature |
-20ºC~+50ºC |
|
Humidity |
0~90%RH(no condensation) |
|
Environmental pressure |
86~106Kpa |
|
Size |
157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
|
Weight |
365g (including battery, belt clip and filter) |
H2S CO O2 LEL Multi Gas Detector Factory information
Shenzhen YuanTe is gathered by a group of industry experts who are experienced in gas detectors R&D, manufacturing and investment. Every year, 5% of Shenzhen YuanTe’s income will be invested as R&D fund. To select out these new product, new technology and new services which will meet market demand is the most important task for R&D team.
For manufacturing, we have independent production workshop, modern production equipment, aging room, calibration room and professional staff.
For marketing, we implement flexible and competitive price and diversified sales strategy. We penetrate the market by various methods such as OEM, ODM, agent and direct selling, and ensure profit of every partner.
For service, we provide 24h/day service to users, rapid in response, technical guidance in place, convenience in repair and maintenance. At present, detectors are with IECEX ATEX CE EMC international certifications, Company has got ISO9001-2015 Quality management system certificate.
3. What can you buy from us?
H2S CO O2 LEL Multi Gas Detector, Gas Detector, Gas Panel Controller, Flue gas analyzer, Gas Sensor, Pretreatment gas detection system.
