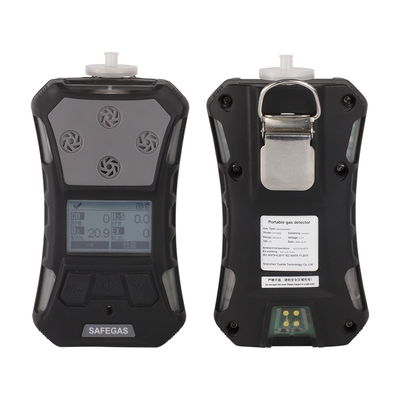

IP67 Men Down Alarm Gas Meter Pump Gas Detector for Tunnels Steel Works

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX,ISO9001,CE
Model Number: SKY3000
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Degree Of Protection: IP67 Function: Men Down Alarm
Product Name: Gas Meter Pump Gas Detector Sampling Type: Pump And Diffusion
Application: Tunnels Steel Works Model: SKY3000
High Light:

IP67 Multi Gas Detector

,

95dB Multi Gas Detector

,

IP67 Multi Gas Meter


Product Description

IP67 Men Down Alarm Gas Meter Pump Gas Detector for Tunnels Steel Works



Yuante portable multi gas detector adopt advanced gas sensor and micro control technical, has quick response, high accuracy, great stability and repeatability, it's easy to operate, performance is in the leading level of gas detection industry.



SKY3000 is a professional multi-gas detector with all advanced specifications, features and functions made with premium electrochemical gas sensors. This detector features the most advanced 32-bit microprocessor with Color LCD and graphing capability. Made for industrial use for utility workers, refinery workers, firefighters, maintenance engineers, those who spend time in sewers and waterworks, underground storage tanks, oil rigs, in tanks and silos in the maritime industry, and many others who need personal protective equipment to know that the atmosphere is healthy. Product comes with the Multi-Gas Detector, English Manual, USB recharge cable. 100% customer satisfaction. Comes FACTORY CALIBRATED. Open the box, turn ON and GO. 100% QA by real sensor and gas detector engineers.




IP67 Men Down Alarm Gas Meter Pump Gas Detector for Tunnels Steel Works 0


Product specifications​

Gas type Tunnels Steel Gas
Measure range CO CO2 H2S H2 O2 etc
Resolution Optional
Response time ≤30 seconds
Precsiion ≤±2%F.S
Automatically test and calibrate after power-on Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM and mg/m³ can be switched
Data record Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery 3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours More than 15 hours in continuous pumping mode
Charger Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade IECEX/ATEX(II IG Ex ia IIC T4
CNEX:Ex ia IIC T4 Ga
Certification
(EU regulations)
2004/108/EC(EMC)
1995/5/EC(Radio)
94/9/EC(ATEX)
Protection grade IP67
Working temperature -20ºC~+50ºC
Humidity 0~90%RH(no condensation)
Environmental pressure 86~106Kpa

IP67 Men Down Alarm Gas Meter Pump Gas Detector for Tunnels Steel Works 1
IP67 Men Down Alarm Gas Meter Pump Gas Detector for Tunnels Steel Works 2





The measuring instrument detector alarm monitors gas leak density by natural diffusion and adopts imported electro-chemical sensor, PID sensor, featuring good sensibility and excellent repeat ability.

The device has embedded micro control technique and simple signal display and English instruction menu, making the operation easy.Complete function and dependability makes the whole device a leader in the nation.

The cover of the detector is refined from high-intensive engineering material (compound elastic rubber), which made the detector touches well, waterproof and explosion-protection

IP67 Men Down Alarm Gas Meter Pump Gas Detector for Tunnels Steel Works 3

1. Astigmatic design is applied to rugged surroundings;
2. Continuously gas concentration and composition colorful LCD real-time display;
3. Rechargeable lithium battery (continuous working period can be 16~18 hours);
4. Concentration units ppm and mg/m3 can be switched
5. Built-in vibration alarm which is applied for noisy environment;
6. Two stage alarm threshold: the low alarm and high alarm point can be adjusted based on actual needs;
7. Simple automatic calibration program and plug-in replaceable sensor;
8. Fully functional self-testing: sensor, integrity of battery and circuit, acoustic & visual & vibration three-stage alarm;
9. Small figure and light weight;
10. Password protection capability: only the authorized user can modify the preset parameter.


IP67 Men Down Alarm Gas Meter Pump Gas Detector for Tunnels Steel Works 4

Company Information

IP67 Men Down Alarm Gas Meter Pump Gas Detector for Tunnels Steel Works 5





We are a production-oriented high-tech enterprise focusing on R & D,R & D department as the core department,Responsible for the core technology design, function upgrading and development, equipment installation technical support, maintenance and testing of the company's products, currently composed of 6 senior engineers.
IP67 Men Down Alarm Gas Meter Pump Gas Detector for Tunnels Steel Works 6



FAQ



Q1:Does the Gas Detector come with the case which includes the charger, calibration gas, and attachment?

A1:It come with the case which includes the charger, instruction and qualification certificate.

Q2:What is the moq?
A2:Usually it is 1 piece.

Q3:Does this Gas Detector come with a clip to attach to my FR shirt?
A4:The detector has installed on its back a belt clip.


Q4:How long is the warranty time of the products?
A5:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
