| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | CNEX,ISO9001,CE |
| Model Number: | SKY8000 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 pieces/week |
| Test Gas: | O2 CH4 H2S CO2 N2 H2 SO2 NH3 TVOC Etc | Product Name: | 18 In 1 Gas Detector |
|---|---|---|---|
| Sampling Type: | Pump | Battery: | Rechargeable |
| Application: | Landfill | Degree Of Protection: | IP65 |
| Explosion-proof: | Ex Ic IIC T3 Gc | Pressure Measurement: | 0.5-2.0 Bar (optional) |
| High Light: | CNEX Gas Monitoring Device,CNEX Landfill Gas Detector,IP65 Gas Monitoring Device |
||

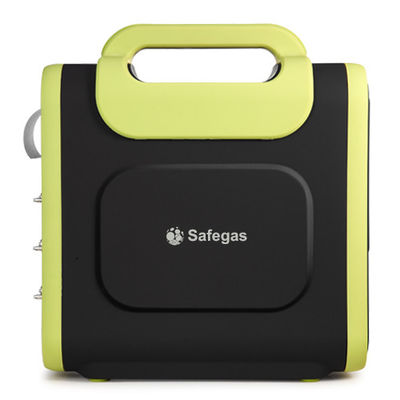

Landfill Gas Monitoring Device 18 in 1 Gas Detector Rechargeable Operated Equipment With Pump
SKY8000 series gas analyzer is a data collector which can quickly acquire and analyze gas concentration components in scientific research, university and complex working environment. SKY8000 gas analyzer can detect up to 18 gases simultaneously. It can integrate electrochemistry, catalysis, thermal conductivity, infrared, light ion, ultraviolet and other detection principles, focus-ing on the accuracy of gas detection and user experience.
Feature
Modular internal structure
1). Adopting a modular internal structure and obtaining a structural design patent
2). It is divided into 3 detection modules, each of which can detect up to 6 gases
3). It can built-in maximum 18 gas detection
4). The modules are independent of each other and separate the air intake, which can effectively avoid the cross interference of gas to other sensors, and the detection is more accurate.
Flexible, multi-pump system
The air supply system of up to three pumps can switch the pump arbitrarily, blocking the loss of the cross-gas to the relevant sensor and prolonging the service life of the sensor
| Sensors | PID & Electrochemistry&Infrared Ray |
| Gas detected | Upto 18 Gas monitored |
| Measure range | Depends on customer needs |
| Resolution | Depends on customer needs |
| Display | Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm | Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage | Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval. |
| Data transmission and download | RS232,RS485 singnal output,USB interface data transmission, with the upper computer software, can download storage, analyze and print data |
| Print function(Optional) | Optional with internal portable printer or external bluetooth printer |
| Print content(Optional) | Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
| Charger | Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer ) |
| Wireless network (optional) | Bluetooth |
| Network frequency | 2.4G high frequency. |
| wireless transmission distance | Bluetooth is less than 10m |
Standard Accessories
1. Instruction
2. Qualification certificate
3. warranty card
4. a Micro-USB cable
5. a water,vapour,smoke filter
6. an intake sampling rod
7. 600mm tube
8. Non - toxic, tasteless, explosion-proof,
9. waterproof, heat - resistant,
10. high - temperature resistant,
11. corrosion resistant suitcase (1 set)
Optional Accessories
1. Printer (built-in printer or external bluetooth printer)
2. Pressure Sensor
3. High Temperature Gun
