Easy Operation Multi Gas Detector H2S 0-100PPM ATEX Certified With Large Screen Display

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/IECEX/CE/EMC
Model Number: SKY3000
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 100 pieces/day
Detail Information
Model Number:: SKY3000 Sensor Principle: Catalytic Combustion,Electrochemistry
Measure Range: Customized, Please Contact Us For Details Resolution: Customized, Please Contact Us For Details
Sampling Method:: Pumping Suction Precision: ≤±2%F.S Except For Special Gases
Working Hours: More Than 15 Hours In Continuous Pumping Mode Disaply: Monochrome Graphics (160 X96) ,screen Can Be Automatically Flipped
Language: Chinese/English(More Language Can Be Customized) Battery Type: Lthium Polymer
Response Time: ≤30 Seconds
High Light:

30s Multi Gas Detector

,

100PPM H2S Multi Gas Detector

,

IP67 H2S Gas Detector


Product Description

Easy Operation Multi Gas Detector H2S 0-100PPM ATEX Certified With Large Screen Display



Product advantage

  • 1. Rugged and durable
  • 2. Explosion-proof circuit design, safe and reliable
  • 3. Multiple security protection
  • 4. Simultaneous measurement of multiple gases, multiple numerical display
  • 5. Large screen display, flexible detection system, multiple filtering devices
  • 6. Powerful function, more user-friendly operation
  • 7. Explosion-proof certification, explosion-proof frade: IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga

Specifications

Gas Detected CO, EX, H2S, O2
Detection principle Electrochemistry/ Catalytic combustion
Sampling Method Pumping suction
Measure Range 0-30%VOL(O2) /0-100ppm(H2S)/0-1000ppm(CO)/0-100%LEL(EX)
Resolution 0.01%VOL(O2)/0.01PPM(H2S)/1ppm(CO)/1%LEL(EX)
Precision ≤±2%F.S except for special gases
Response Time ≤30 seconds Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%F.S/year Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃-50℃ Humidity 0-90%RH
Explosion-Proof IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga Degree of protection IP67
Alarm mode Sound, light, vibration Environmental pressure 86~106Kpa
Dimensions 157*84.5*59.5mm Weight 365g

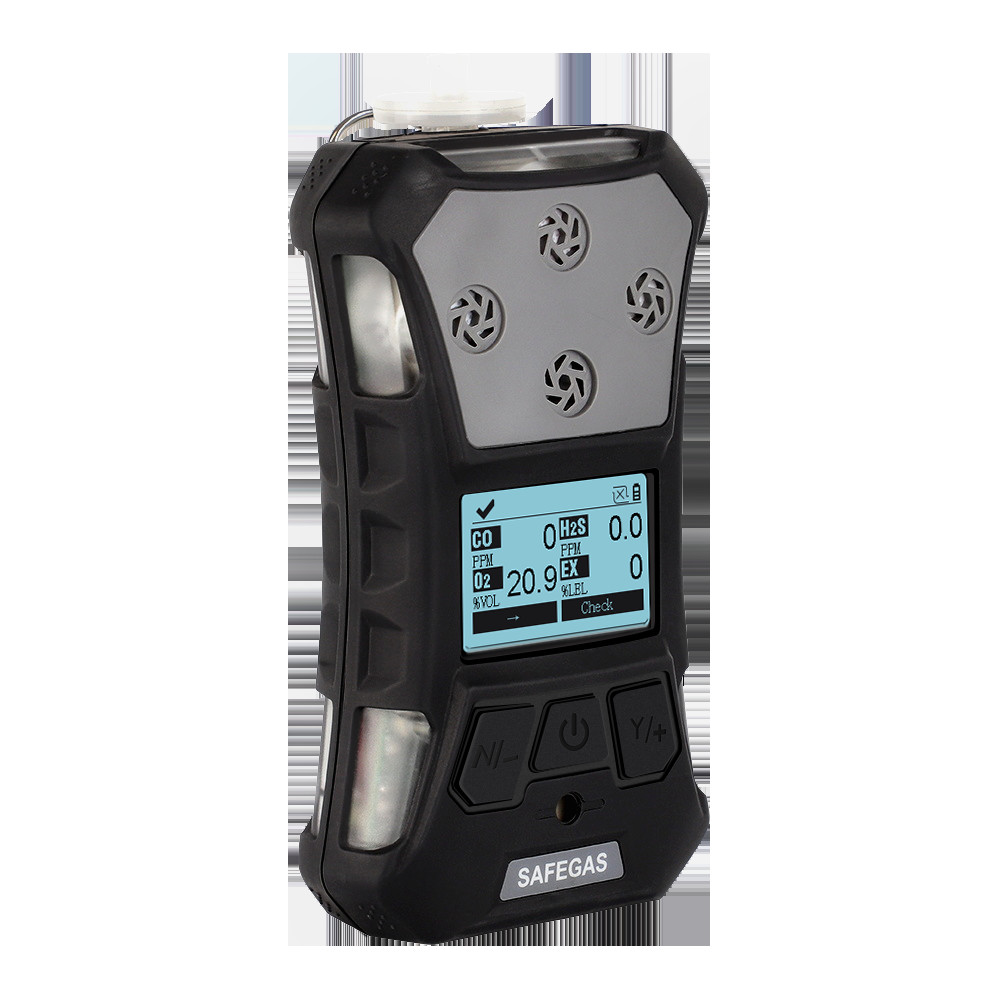

Product Overview


SKY3000 series is a high-performance portable gas detector that can detect multiple gases.The device has humanized operation functions such as one-key security detection, one-key storage, automatic image flipping, as well as the man down alarm function; With optional Bluetooth transmission function, allowing safety personnel to obtain real-time data and the alarm status. It has obtained international IECEX, ATEX explosion-proof certification.The instrument is mainly working in suction mode. When the air pump fails or in special emergency situations, it can automatically switch to the diffusion sampling method, thereby improving the protection to a new Level.
Easy Operation Multi Gas Detector H2S 0-100PPM ATEX Certified With Large Screen Display 0





Easy Operation Multi Gas Detector H2S 0-100PPM ATEX Certified With Large Screen Display 1



Product package

Easy Operation Multi Gas Detector H2S 0-100PPM ATEX Certified With Large Screen Display 2




Certifications

Easy Operation Multi Gas Detector H2S 0-100PPM ATEX Certified With Large Screen Display 3
