SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 Gas Detector Analyzer SO2 4-20mA RS485 UK Sensor

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: SIL CE ATEX CNEX ISO9001-2015
Model Number: YT-95H-SO2-A
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union, Credit Card
Supply Ability: 500PCS/DAY
Detail Information
Detected Gas: SO2 Sulphur Dioxide Measure Range: 0-10, 0-20, 0-50, 0-100, 0-200, 0-500, 0-1000, 0-2000, 0-5000ppm
Sampling Method: Natural Diffusion, Can Be With External Pump Sensor Type: Electrochemical Sensors
Install Method: Wall-mounted, Piping-type, Flow-type And Confined Space Power: 12-36Vdc
Usage: Industrial Measurement Signal: 4-20mA, RS485, Inner Relay, External AC Relay Is Optional
Materials: Die-cast Aluminum Application: Measure SO2 Sulphur Dioxide Concentration And Leakage
High Light:

RS485 Toxic Gas Detector

,

DC36V Toxic Gas Detector

,

RS485 SO2 Gas Detector


Product Description

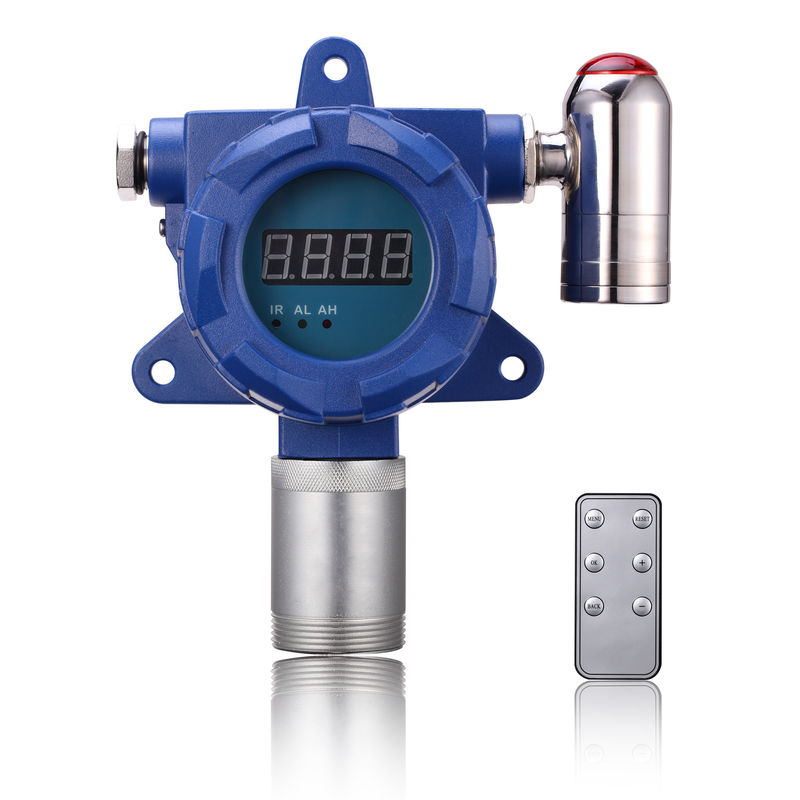

SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 gas detector Analyzer SO2 4-20mA RS485 UK Sensor



SO2 Sulphur Dioxide Gas detector has wide measuring range, high precision, good linearity, universal model, convenient use, easy installation and long transmission distance. It is widely used in industrial, agricultural, scientific research and other fields.



To make sure safety or air emission quality, we need to test SO2 Sulphur Dioxide leakage. If you want to test SO2 Sulphur Dioxide leakage, we suggest you use measure range 0-100ppm, resolution is 0.1ppm; If you want to test SO2 Sulphur Dioxide in air quality, we suggest you use measure range 0-10ppm, resolution is 0.001ppm. Besides, our wall-mounted SO2 Sulphur Dioxide Gas detector can be with controller panel, it can be connected with detectors, the readings will show on the panel by 4-20mA or RS485 signal output.



Sulphur Dioxide SO2 Gas Monitor Advantages:



  • Use imported US/UK original sensors to keep the high precision and fast response.

  • Sandard equipped with three-wire system 4-20mA, RS485 and Inner Relay(24Vdc 50mA) output, external AC relay is optional;

  • Infrared ray control function, which can non-contacted control the detector. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system.

  • Explosion-proof design, fast, reliable and stable.

  • Explosion-proof grade: II 2G Ex db IIC T6 Gb IP65

  • With self-calibration function and three standard keys will be used to realize on-site maintenance.


Sulphur Dioxide SO2 Gas Monitor Features:



  • Monitor the Sulphur Dioxide SO2 gas concentration in environment or pipeline and alarm.

  • With self-calibration and zero calibration function to make sure the detection more accurate and reliable.

  • With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.

  • Two-stage alarm with sound and light, alarm point is settable.

  • Infrared ray controller can remote control alarm point settings,

  • zero calibration, and address modification.

  • Can output one or two on-off signals, can drive ventilator or

  • solenoid valve and other external devices.

  • Working Voltage:12-36V DC

  • Case:die-cast aluminum + stainless steel (alarm light)




Sulphur Dioxide SO2 Gas Monitor Specification



Gas detected

Sulphur Dioxide, SO2

Detection principle

Electrochemistry, sensor and ic are imported from US/UK

Install method

Wall-mounted, piping type, flow-type (according to the detected environment)

Measure range

0-10, 0-20, 0-50, 0-100, 0-200, 0-500, 0-1000, 0-2000, 0-5000ppm(Measure range is optional)

Resolution

0.001ppm, 0.01ppm, 0.1ppm, 1ppm

Precision

≤± 2-3% FS for normal sensor, ≤± 1% FS for high precision sensor

Signal output

4-20mA, 0-5V, RS485, relay(optional)

Response time

≤10S

Recovery time

≤10S

Repeatability

≤±1%

Linearity error

≤±1%

Zero shift

≤±1%(FS/year)

Display

High-light nixie tube display

Connection mode

G1/2 external thread explosion-proof flexible pipe

Unit

%VOL

Temperature

-20 to 50°C

Humidity

0-95%RH

Explosion-proof

II 2G Ex db IIC T6 Gb IP65

Degree of protection

IP65

Alarm

Sound, light

Operating time

24H

Dimensions

180*150*90mm

Weight

≤2kg



SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 Gas Detector Analyzer SO2 4-20mA RS485 UK Sensor 0



Applications for Sulphur Dioxide SO2 Gas Monitor



Garbage station, Wastewater treatment, Air quality, Chemical industry, food factory, software engineering, environmental protection, animal husbandry, mining, power engineering, etc.

At present, we have cooperated with Coca-Cola Company, Nestle, State Grid Administration, Samsung, HuaWei, etc for wall-mounted H2S Hydrogen Sulfide Gas detector.



SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 Gas Detector Analyzer SO2 4-20mA RS485 UK Sensor 1



SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 Gas Detector Analyzer SO2 4-20mA RS485 UK Sensor 2



SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 Gas Detector Analyzer SO2 4-20mA RS485 UK Sensor 3





Installation



SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 Gas Detector Analyzer SO2 4-20mA RS485 UK Sensor 4



SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 Gas Detector Analyzer SO2 4-20mA RS485 UK Sensor 5







Factory information



Professional: We have been focused on gas detection devices for more than 10 years and been cooperating with PB group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc famous companies. We are with rich experience to provide you professional solutions.

B Innovation: Strong R&D team (invest 40% revenues into research and experienced engineers team) makes our products stand out in the market.
C Quality: International top brands sensor and IC /100% production test, make sure a good quality.
D Professional technical support: Provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.
E Completed certifications: ATEX / SIL / CE / CNEX / ISO9001/, meet government standard as well guarantee your safety health.
F Services: We provide 24*7 hours service, if there have any question, Celia will reply you in 1 hours. Meanwhile, we can provide OEM services.
G Delivery: We can ship it out in 2-3 days. For some mass production and special customised gas analyzer, we can ship it out in 7 days.



Established in 2010, SHENZHEN YUANTE TECHNOLOGY CO.,LTD, is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector” as the core product, we have completed production line and solutions according to different industries, such as: Oil, Chemical, Medicine, Energy, Environment protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Safegas becomes the influential supplier for gas detection equipment and system in the domestic and overseas market.

Shenzhen YuanTe is gathered by a group of industry experts who are experienced in gas detectors R&D, manufacturing and investment. Every year, 40% of Shenzhen YuanTe’s income will be invested as R&D fund. To select out these new product, new technology and new services which will meet market demand is the most important task for R&D team.

For manufacturing, we have independent production workshop, modern production equipment, aging room, calibration room and professional staff.

For marketing, we implement flexible and competitive price and diversified sales strategy. We penetrate the market by various methods such as OEM, ODM, agent and direct selling, and ensure profit of every partner.

For service, we provide 24h/day service to users, rapid in response, technical guidance in place, convenience in repair and maintenance. At present, detectors are with ATEX CE EMC international certifications, Company has got ISO9001-2015 Quality management system certificate.



SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 Gas Detector Analyzer SO2 4-20mA RS485 UK Sensor 6SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 Gas Detector Analyzer SO2 4-20mA RS485 UK Sensor 7

SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 Gas Detector Analyzer SO2 4-20mA RS485 UK Sensor 8

SO2 Gas Monitor Sulphur Dioxide Gas Monitor SO2 Gas Detector Analyzer SO2 4-20mA RS485 UK Sensor 9



Certifications:



CE, ATEX, CNEX, ISO9001
