Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/CE/EMC
Model Number: SKY2000-CH2O
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 100 pieces/day
Detail Information
Model Number:: SKY2000-H2 Sensor Principle: Electrochemical
Measure Range: 0-1000,2000,5000ppm,0-10000ppm, 0-20000ppm, 0-40000ppm,0-100%LEL Resolution: 1PPM, 1%LEL
Sampling Method:: Pumping Suction Alarm Type: Sound, Light, Vibration
Package: Aluminum Suitcase Gross Weight: 2.5KG
Explosion-Proof: Exia II CT4 Package Size: 30x22x12.5cm
High Light:

1PPM H2 Gas Analyzer

,

1PPM Hydrogen Gas Detector

,

IP66 H2 Gas Analyzer


Product Description

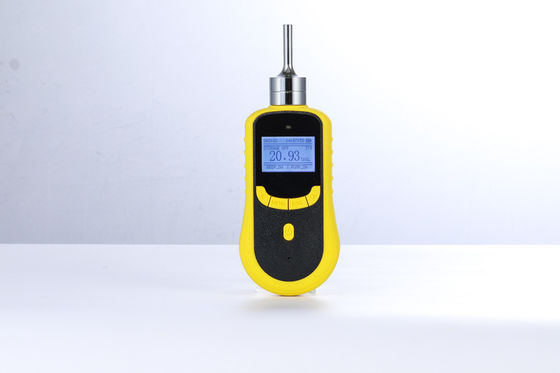

Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room



Specifications

Gas Detected H2
Detection principle Electrochemical
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 0-1000/2000/5000/10000/20000/40000PPM, 0-100%LEL
Resolution 1ppm, 1%LEL
Precision ≤±3% F.S.
Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%F.S/year Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃-50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT4 Degree of protection IP66
Alarm mode Sound, light, vibration Operating time

100h

pump off

Dimensions 205*75*32mm Weight 300g


Product advantage

  1. Employing original imported first-class brand sensor, for example Alpha, CITY, ION, Dynament, Honeywell and etc.
  2. (optional) High speed data transmission by USB, which can download and print data.
  3. LCD dot matrix display, the gas type, unit, concentration, local time can be showed on the screen.
  4. Support Chinese and English operation, easy to shift.
  5. The gas concentration unit PPM and mg/m3 can be shifted quickly.
  6. Built-in micro sampling pump, 10 grades of suction are available.
  7. Explosion-proof certification, explosion-proof grade: Ex ia IIC T4 G



Why choose us?



A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.
B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market
C Quality: international top brands sensor and IC /100% production test, make sure a good quality
D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.
E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety health



Toxic Hydrogen Gas Detector Product Overview

SKY2000 series gas detector is a kind of fast response and high accuracy gas measurement device. With internal sampling pump, fast sampling speed and high flow rate, ensuring the response time of the detector. Unique design, small size and easy to carry with. Special high intensity engineering plastics housing, suitable for different kinds of situation and environment. We dedicate to provide you the most reliable, accurate and the safest solution of gas detection.

Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room 0





                      Single gas detector           Multi gas detector

Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room 1Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room 2

  1. Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room 3

Production line
Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room 4
Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room 5
Certifications
Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room 6
Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room 7
Aluminum Product package
Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room 8

Services:
  • 1. One year free warranty.
  • 2. All machines are debugged before shipment.
  • 3. Lifetime technical support and service.
  • 4. 24 hours on line or phone or by email technical support.
  • 5. We offer detailed machine manual and software manual.
  • 6. Our factory make a vivid training CD.
  • 7. Life-long free maintenance.
  • 8. Free training in our factory.
  • Welcome to visit our factory, learn machine face to face.
