IECEX Certified 5 in 1 Multi Gas Detector CO H2S LEL O2 VOC Gas Meter For Leakage Detection

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/IECEX/CE/EMC
Model Number: SKY3000
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 100 pieces/day
Detail Information
Model Number:: SKY3000 Sensor Principle: Electrochemical, Catalytic Combustion, PID
Measure Range: H2S 0-100PPM, CO 0-1000PPM, LEL 0-100%LEL, O2 0-30%VOL, VOC 0-100PPM Resolution: H2S 0.1PPM, CO 1PPM, LEL 1%LEL, O2 0.01%VOL, VOC 0.1PPM
Response Time: ≤30 Seconds Precision: ≤±2%F.S Except For Special Gases
Working Hours: More Than 15 Hours In Continuous Pumping Mode Disaply: Monochrome Graphics (160 X96) ,screen Can Be Automatically Flipped
Language: Chinese/English/ Russian Backlight: The Backlight Time Can Be Manually Set, And Will Be Turned On Automatically When An Alarm Is Issued
High Light:

IECEX Multi Gas Detector

,

H2S LEL Multi Gas Detector

,

IECEX Multi Gas Meter


Product Description

IECEX Certified 5 in 1 Multi Gas Detector CO H2S LEL O2 VOC Gas Meter For Leakage Detection



Company profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Pro- tection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.



Our advantage



1. All the sensors are first-class brand sensors and imported from Europe, faster response and higher accuracy

2. For all our customers, we gurantee one year warranty, and life-long maintenance.

3. All inquiries will be replied in 24 hours.

4. We will provide technical support, our engineers will help to solve the problems you meet.

5. We can provide OEM service, fast delivery. Goods can be sent in 3 days

6. We are manufacturer with own factory and specialized in gas detection for about 16 years, welcome to visit our factory.

7. All products will be well checked and well packed before shipment and qualification certificate will be provided.

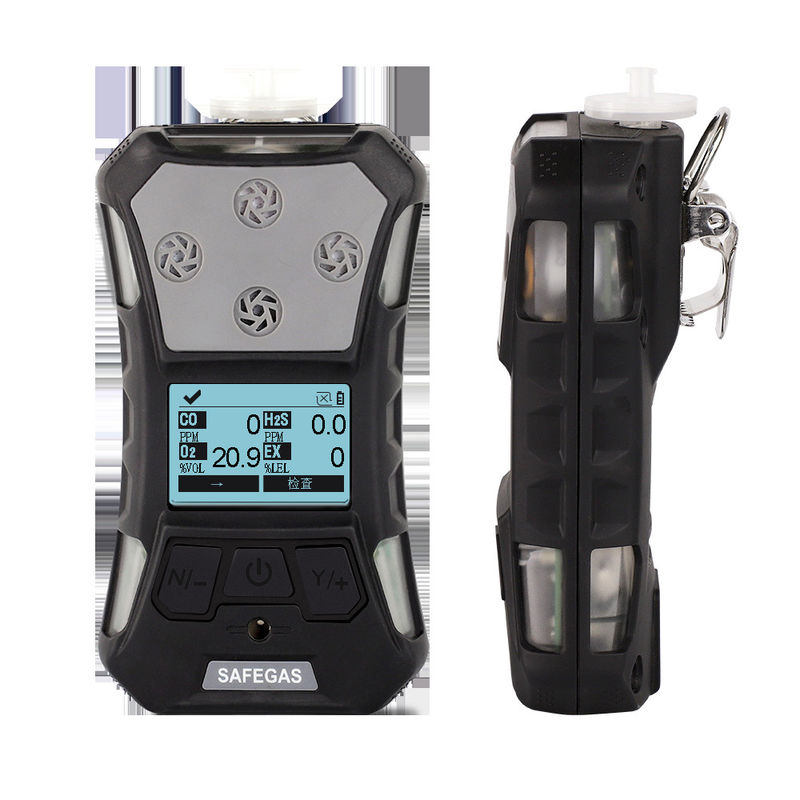

Product Overview



SKY3000 series is a high-performance portable gas detector that can detect multiple gases.The device has humanized operation functions such as one-key security detection, one-key storage, automatic image flipping, as well as the man down alarm function; With optional Bluetooth transmission function, allowing safety personnel to obtain real-time data and the alarm status. It has obtained international IECEX, ATEX explosion-proof certification.The instrument is mainly working in suction mode. When the air pump fails or in special emergency situations, it can automatically switch to the diffusion sampling method, thereby improving the protection to a new Level.


Specifications

Gas Detected H2S, CO, LEL, O2, VOC
Detection principle Electrochemical, catalytic combustion, PID
Sampling Method Pumping suction
Measure Range H2S 0-100PPM, CO 0-1000PPM, LEL 0-100%LEL, O2 0-30%VOL, VOC 0-100PPM
Resolution H2S 0.1PPM, CO 1PPM, LEL 1%LEL, O2 0.01%VOL, VOC 0.1PPM
Precision ≤±2%F.S except for special gases
Response Time ≤30 seconds Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%F.S/year Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃-50℃ Humidity 0-90%RH
Explosion-Proof IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga Degree of protection IP67
Alarm mode Sound, light, vibration Environmental pressure 86~106Kpa
Dimensions 157*84.5*59.5mm Weight 365g



IECEX Certified 5 in 1 Multi Gas Detector CO H2S LEL O2 VOC Gas Meter For Leakage Detection 0



Product advantage

  • 1. Protection level IP67 can pass three-meter drop test and EMC anti-static interference test. It's also IECEX, ATEX certified, explosion-proof grade is Exia IICT4 Ga.
  • 2. Built-in sampling pump, faster response. It can be connected to sampling hose, which is convenient for long-distance or confined space detection.
  • 3. Up to 5 gas can be monitored, show real-time data, TWA, STEL, MAX, MIN multiple numerical.
  • 4. The screen can be automatically turned 180 degrees, convenient for viewing.
  • 5. Multiple security protection including man down alarm function, password protection function, safety reminder function, alarm function, high and low alarm latched function.
  • 6. With datalog function, one-click data export, convenient for users to analyze.
  • 7. Optional Bluetooth function, data can be transmitted to the mobile phone or PC in real time
  • 8. Support multiple language switch.

IECEX Certified 5 in 1 Multi Gas Detector CO H2S LEL O2 VOC Gas Meter For Leakage Detection 1



Other normal gas types (Gases are not listed can be customized):

Flammable gas(EX)
Oxygen(O2)
Carbon monoxide(CO)
Hydrogen sulfide(H2S)
Ammonia(NH3)
Chlorine(CL2)
Hydrogen Chloride (HCL)
Nitric oxide(NO)
Nitrogen dioxide(NO2)
formaldehyde(CH2O)
Ozone(O3)
Carbon dioxide(CO2)

Product package

IECEX Certified 5 in 1 Multi Gas Detector CO H2S LEL O2 VOC Gas Meter For Leakage Detection 2




Certifications

IECEX Certified 5 in 1 Multi Gas Detector CO H2S LEL O2 VOC Gas Meter For Leakage Detection 3
