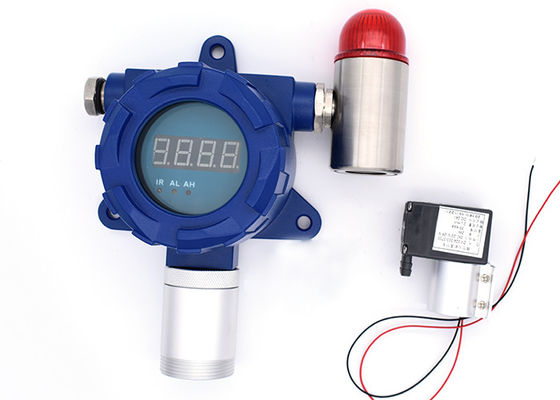

Pipeline Mounted Ethylene Gas Detector C2H4 PLC With IR Sensor

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-95H-C2H4
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-95H-C2H4 Detected Gas: C2H4
Sensor Principle: IR (Infrared) Measure Range: 0-100%LEL, 0-3%VOL
Resolution: 1%LEL, 0.01%VOL Install Method: Wall-mounted, Piping Type, Flow-type
Power Supply: 24VDC Gross Weight: 3 KG
Product Size: 180*150*90mm Warranty: 1 Year
High Light:

Pipeline Mounted Ethylene Gas Detector

,

PLC Ethylene Gas Detector

,

C2H4 Toxic Gas Analyzer


Product Description

Pipeline Mounted C2H4 Ethylene Gas Detector %VOL Gas Analyzer With IR Sensor





Our advantage



1. All the sensors are first-class brand sensors and imported from Europe, faster response and higher accuracy

2. For all our customers, we gurantee one year warranty, and life-long maintenance.

3. All inquiries will be replied in 24 hours.

4. We will provide technical support, our engineers will help to solve the problems you meet.

5. We can provide OEM service, fast delivery. Goods can be sent in 3 days

6. We are manufacturer with own factory and specialized in gas detection for about 16 years, welcome to visit our factory.

7. All products will be well checked and well packed before shipment and qualification certificate will be provided.



Wall Mounted Hydrogen Gas Detector Industrial High Accuracy H2 Gas Analyzer For Battery Room



Product Overview

YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations



Product Advantages



  • 1. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
  • 2. Explosion-proof design, fast, reliable and stable. Explosion-proof grade: Ex dⅡCT6
  • 3. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
  • 4. Monitor the C2H4 acetylene gas concentration in environment or pipeline and alarm.
  • 5. Data display, can be connect to on/off valve.
  • 6. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
  • 7. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.



      Without alarm                                     With alarm

Pipeline Mounted Ethylene Gas Detector C2H4 PLC With IR Sensor 0 Pipeline Mounted Ethylene Gas Detector C2H4 PLC With IR Sensor 1
Specification

Gas detected C2H4
Detection principle IR(Infrared)
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range 0-100%LEL, 0-3%VOL
Resolution 1%LEL, 0.01%VOL
Precision ± 2-5% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex dⅡCT6 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg



Work with control together

Pipeline Mounted Ethylene Gas Detector C2H4 PLC With IR Sensor 2Pipeline Mounted Ethylene Gas Detector C2H4 PLC With IR Sensor 3

Other normal gas types (Gases are not listed can be customized):
Flammable gas(EX)
Oxygen(O2)
Carbon monoxide(CO)
Hydrogen sulfide(H2S)
Ammonia(NH3)
Chlorine(CL2)
Hydrogen Chloride (HCL)
Nitric oxide(NO)
Nitrogen dioxide(NO2)
formaldehyde(CH2O)
Ozone(O3)
Carbon dioxide(CO2)
