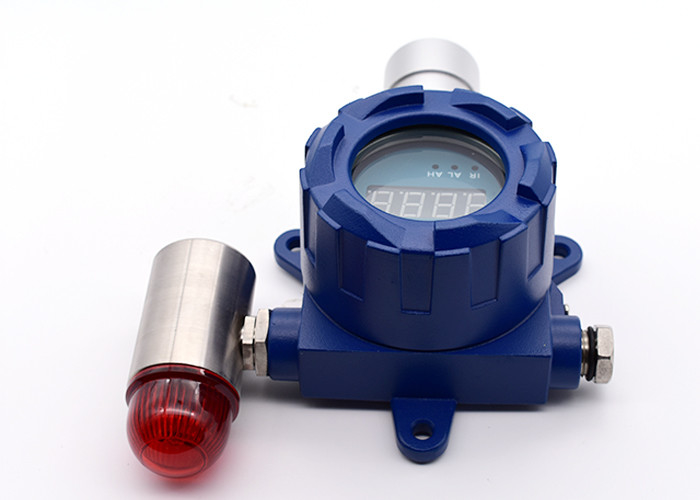

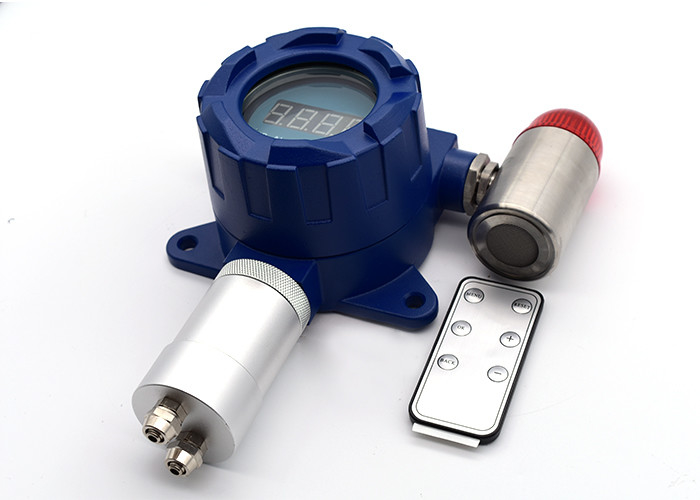

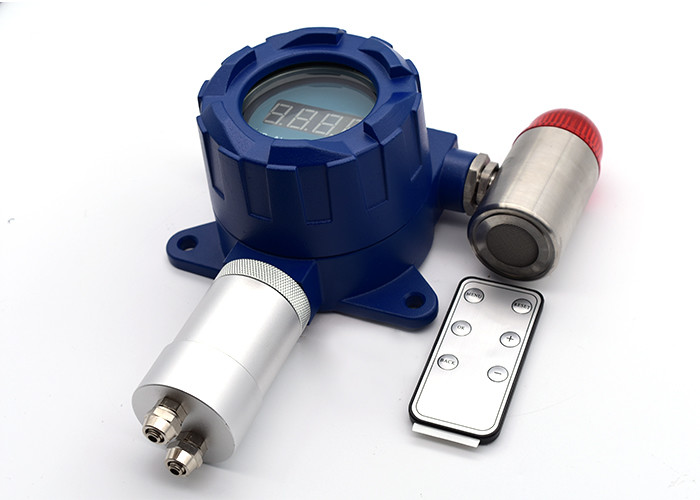

HCN Hydrogen Cyanide Toxic Gas Detector Wall Mounted 0.01PPM 20mA

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-95H-HCN
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-95H-HCN Detected Gas: HCN
Sensor Principle: Electrochemical Measure Range: 0-10/50/100PPM
Resolution: 0.01PPM Install Method: Wall-mounted, Piping Type, Flow-type
Power Supply: 24VDC Gross Weight: 3 KG
Product Size: 180*150*90mm Warranty: 1 Year
High Light:

Hydrogen Cyanide Toxic Gas Detector

,

20mA Toxic Gas Detector

,

Gas Leak Detector 0.01PPM


Product Description

Wall-mounted HCN hydrogen cyanide Toxic Gas Detector For Leak Monitoring Made By Aluminum



Product Overview



YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations





Features

  • Monitor the specific gas concentration in environment or pipeline and alarm.
  • With self-calibration and zero calibration function, makes the detection more accurate and reliable.
  • With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.



Product Advantages

  • 1. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
  • 2. Explosion-proof design, fast, reliable and stable. Explosion-proof grade: Ex dⅡCT6
  • 3. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
  • 4. Monitor the C2H4 acetylene gas concentration in environment or pipeline and alarm.
  • 5. Data display, can be connect to on/off valve.
  • 6. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
  • 7. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.

Specification

Gas detected HCN
Detection principle Electrochemical
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range 0-10/50/100PPM
Resolution 0.01PPM
Precision ± 2-5% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex dⅡCT6 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg
