Portable 3 Channel Pm10 Pm2 5 Particle Counter With Laser Sensor

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/CE
Model Number: SKY2000
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 100 pieces/day
Detail Information
Detect Item: PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10.0 Model Number:: SKY2000
Measure Range: 0-500/1000µg/m3 Resolution: 0.1/1µg/m3
Sampling Method:: Pumping Suction Alarm Type: Sound, Light, Vibration
Package: Aluminum Suitcase Weight:: 300g
Battery Type: Lthium Polymer Explosion-Proof: Exia II CT4
High Light:

pm10 portable particle counter

,

portable pm2 5 particle counter

,

3 channel pm2 5 particle counter


Product Description

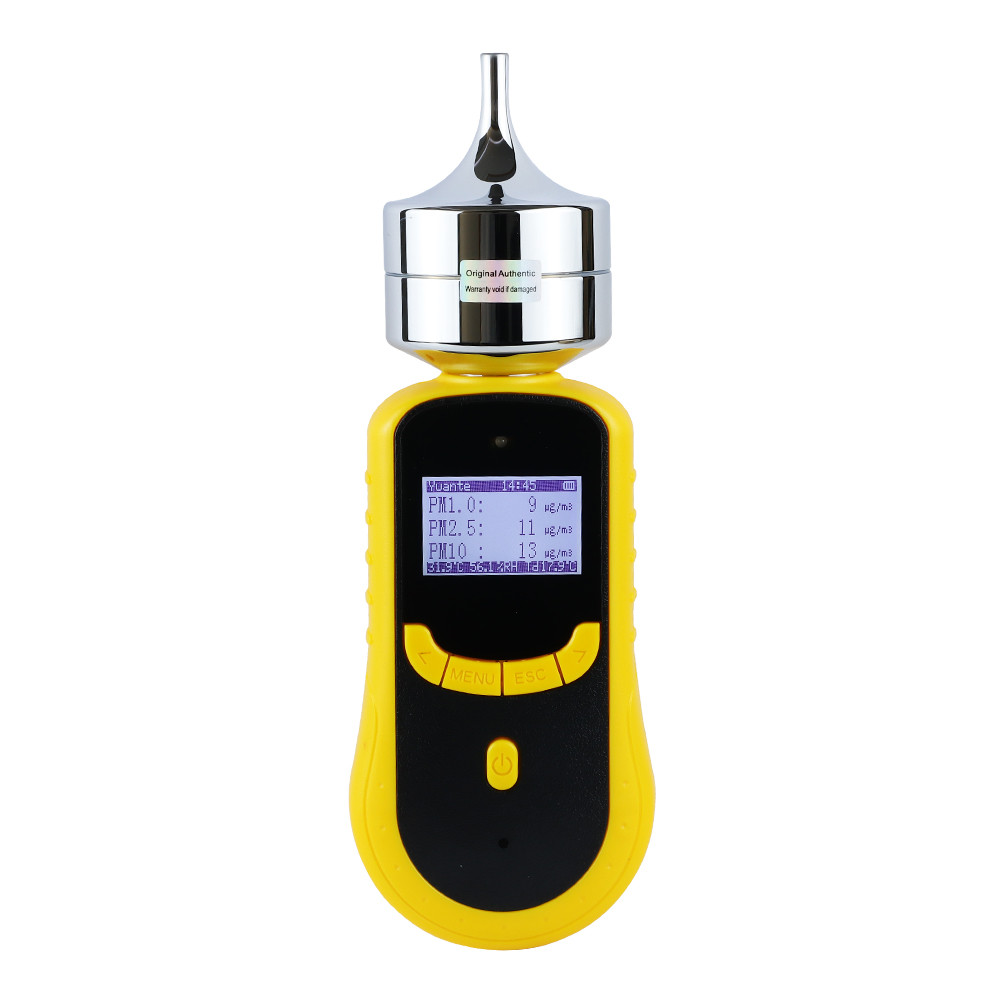

Portable 3 Channel Particle Counter PM2.5 PM10 With Laser Sensor ​

Company advantage



A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.
B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market
C Quality: international top brands sensor and IC /100% production test, make sure a good quality


Company profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Pro- tection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.



Product Overview


SKY2000 is a multi gas and particle counter with flexible configuration of various sensors. It can be equipped with 1-4 gas sensors plus 1 dust sensor and 1 temperature & humidity sensor, which can detect gas, dust concentration, temperature, humidity and dew point at the same time. There are two detection modes for dust, one is the weight mode and the other is particle count mode which can be switched arbitrarily. PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10.0 can be detected at the same time to meet a variety of detection needs. Adopting world-wide reputation brand of gas sensor as well equipping with built-in sampling pump, it has the advantages of fast response, high accuracy, good stability and repeatability


Specifications


Sensors
CO 0-500ppm, O2 0-30%VOL, NOx 0-20ppm, SO2 0-20ppm, PM2.5/10 0-1000ug/m3, Temperture-40℃~+120℃,Humidity 0-100%RH
Detection principle
Electrochemical(CO, O2,NOx, SO2), Laser(PM2.5/10), Thermosensitive(Tem) Humidity Sensitivity(Hum)
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Precision 3% F.S.
Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%F.S/year Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃-50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT4 Degree of protection IP66
Alarm mode Sound, light, vibration Operating time

100h
pump off

Dimensions 205*75*32mm Weight 300g


Product Functions

  • Adopting world-wide reputation brand of gas sensor
  • Detect 1-4 kinds of gases, gas type can be specified, dust particle sensor and temperature & humidity sensor can be added
  • Multiple display interfaces, including gas concentration mode, dust weight mode and Particle count mode which can be switched arbitrarily. PM0.3, PM0.5, PM1.0, PM2.5, PM5.0, PM10.0 can be detected at the same time to meet a variety of detection needs.
  • Support one-key switching between Chinese and English language
  • Built-in powerful sampling pump, can work in a slightly negative pressure environment





Portable 3 Channel Pm10 Pm2 5 Particle Counter With Laser Sensor 0



FAQS

  •  Can I have a sample order?  Yes, we welcome sample order for to test and check quality
  •  Do you have a MOQ limit? No, we don't, one piece is also welcomed
  • .What is the payment terms? Visa,Mastercard, e-checking, T/T, Western Union, Alipay.
  •  What certificate do you have? ATEX, IECEX, CE, ISO, CNEX explosion proof, CMC, if you have any other requirement with certification, we also would like to help you.
  • How about packing? Aluminum suitcase, carton box

Industry Application
Park, woodland, Municipal Engineering, Ports, warehousing, airports, Railway tunnel, Community, school, hospital, other urban construction
