24V DC Fixed Nh3 Ammonia Gas Detector For Chicken Farm Shed

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-95H-B
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, Credit Card
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-95H-B Detected Gas: NH3
Sensor Principle: Electrochemical Measure Range: 0-10/100/200/500/1000/2000/5000ppm
Resolution: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm Install Method: Wall-mounted, Piping Type, Flow-type
Power Supply: 24V DC Gross Weight: 5 KG
Product Size: 320*210*110mm Warranty: 12 Month
High Light:

24v dc ammonia gas detector

,

chicken farm shed ammonia gas detector

,

nh3 fixed gas detector


Product Description

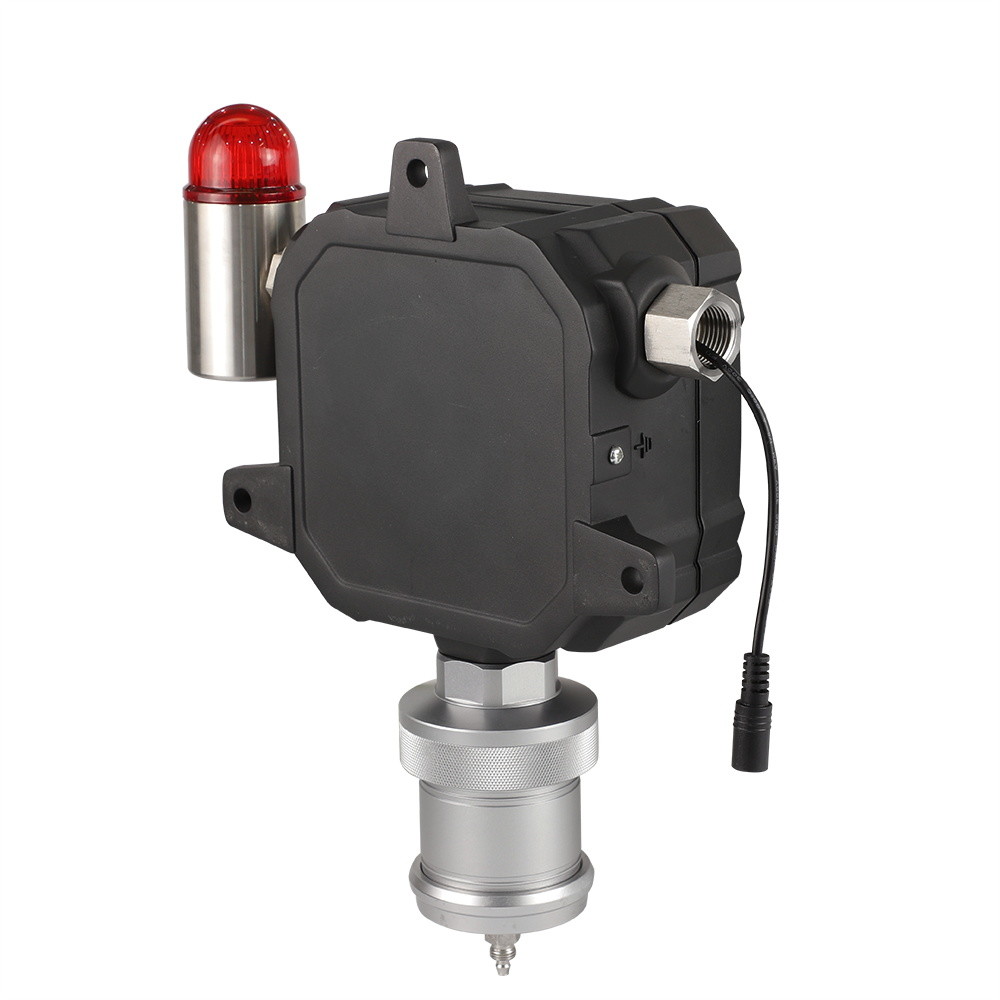

Fixed NH3 Ammonia Gas Detector With Pump Suction Fast Response For Chicken Farm Shed


Company profile

We mainly focus on the design, production, and sales of high-end gas detection equipment and system. There are portable and fixed detectors for oxygen, toxic gas, explosive gas, and etc, mainly for industrial use. All sensor(main parts of detector) we use are imported from USA, Japan, Korea and Europe, there are brands like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA





Product Overview




YT-95H-B series is a built-in pump-suction multi gas detector, which can detect 1-6 kinds of gases at the same time, continuously monitor the concentration of various gases online for 24 hours. output 4-20mA, RS485 Standard signal, transmit data remotely. YT-95H-B series can detect gas concentration in pipelines, confined spaces,and atmospheric environments, and can also detect gas leakage.The instrument has a built-in constant flow and large suction pump,which is accurate in detection, and has a faster and more sensitive response than diffusion models.When the target detected gas is lighter than air,no need to install at high place, which can get the detection results quickly and safely.

24V DC Fixed Nh3 Ammonia Gas Detector For Chicken Farm Shed 0

Product Functions

  • 1. infrared remote control function and button function are two-pronged
  • 2. standard 4-20mA current signal, RS485 digital signal, 1 set of relay signal output, optional 2 sets of relay signals
  • 3. Optional wireless transmission function, provide SMS Alert function, can upload data to the EPA platform or other platforms, and transmit signals without distance limitation
  • 4. Optional large capacity 8G SD card storage function, storage data can be saved for more than one year

Specification

Gas detected NH3
Detection principle Electrochemical
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range 0-10/100/200/500/1000/2000/5000ppm
Resolution 0.001ppm, 0.01ppm, 0.1ppm, 1ppm
Precision ± 3% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display
2.4 inch color display, resolution 320*240
Wireless output (optional):
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex dⅡCT6 Degree of protection IP65
Alarm Sound, light
Language:
Chinese / English
Dimensions
(H x W x D) 320*210*110mm
Weight ≤2kg
