ATEX Certified YT-95H-HF Gas Detector Wall Mounted Type With Alarm And Relay

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-95H-HF
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-95H-HF Detected Gas: HF
Sensor Principle: Elechrochemical(CITY Brand Sensor From UK) Measure Range: 0-1/10PPM
Resolution: 0.001PPM, 0.01PPM Install Method: Wall-mounted, Piping Type, Flow-type
Power Supply: 24V DC Gross Weight: 3 KG
Product Size: 180*150*90mm Warranty: 1 Year
High Light:

Elechrochemical Gas Detector

,

ATEX HF Gas Detector

,

0.001PPM HF Gas Detector


Product Description

ATEX Certified YT-95H-HF Gas Detector Wall-mounted Type With Alarm And Relay





Company advantage

  • 16 years experience in gas detection
  • More than 20 engineers, professional team
  • Fast delivery time, 1-5 working days
  • Imported IC from USA and world-wide reputation brand sensors
  • International standard certifications, IECEX,ATEX, ISO
  • Rich Experience on all kinds of projects
  • Fast response, good service
  • OEM service without additional cost
  • Competitive price




Product Overview

YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations



Features

  1. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
  2. Two-stage alarm with sound and light, alarm point is settable.
  3. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
  4. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.
  5. Working Voltage:12-36V DC
  6. Case:die-cast aluminum + stainless steel (alarm light)


Specification

Gas detected HF
Detection principle Electrochemical
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range 0-1/10PPM
Resolution 0.001PPM/0.01PPM
Precision ± 1-3% FS
Signal output 4-20mA, 1-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex dⅡCT6 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg

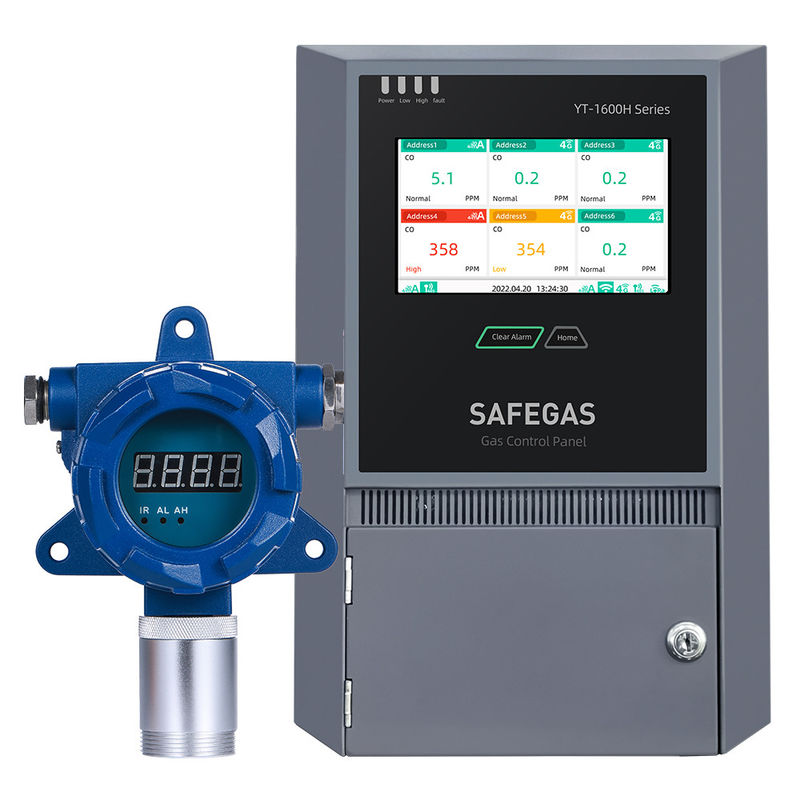

Work with control together

ATEX Certified YT-95H-HF Gas Detector Wall Mounted Type With Alarm And Relay 0



Other normal gas types (Gases are not listed can be customized):

Flammable gas(EX)
Oxygen(O2)
Carbon monoxide(CO)
Hydrogen (H2)
Methane (CH4)
Carbon Dioxide(CO2)
Chlorine dioxide(CLO2)
Ozone(O3)
Ammonia(NH3)
Nitrogen(N2)


FAQS

  • Can I have a sample order? Yes, we welcome sample order for to test and check quality
  • Do you have a MOQ limit? No, we don't, one piece is also welcomed
  • .What is the payment terms? Visa,Mastercard, e-checking, T/T, Western Union, Alipay.
  • What certificate do you have? ATEX, IECEX, CE, ISO, CNEX explosion proof, CMC, if you have any other requirement with certification, we also would like to help you.
  • How about packing? Aluminum suitcase, carton box
