Place of Origin: | China |
---|---|
Brand Name: | Safegas |
Certification: | IECEX, ATEX, ISO9001, CE, CNEX, SIL |
Model Number: | SKY3000 |
Minimum Order Quantity: | 1pcs |
Price: | Negotiable |
Packaging Details: | Aluminum Suitcase |
Delivery Time: | 1 working days |
Payment Terms: | Credit Card, T/T |
Supply Ability: | 1000 pieces/week |
Product: | Multi Gas Detector For Confined Space | Sampling Method: | With Inner Pump |
---|---|---|---|
Alarm Type: | Sound And Light With Vibration | Resolution: | Resolution Is According To Sensor |
Sensors Brand: | City&Honeywell&ION | Wireless: | Bluetooth / Rola / 4G (Optional) |
Water-proof: | IP67 | Response: | T90<15S |
Certifications: | IECEX&ATEX&CE With EMC | ||
High Light: | Vibration Alarm Multi Gas Detector,Bluetooth IP67 Multi Gas Detector,IECEX 4 Gases Detector |

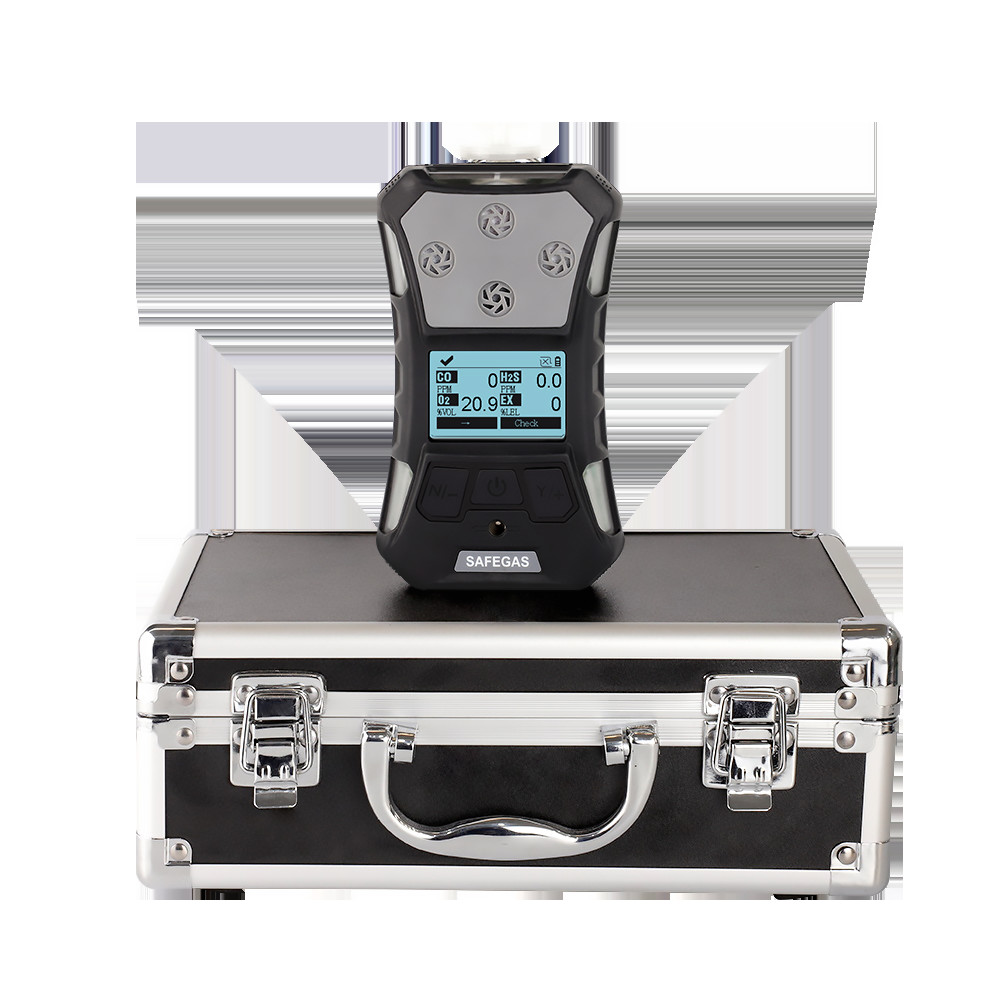

Multi Gas Detector For Confined Space Handheld Multi Gas Detector 4 Gases Detector
Multi Gas Detector For Confined Space advantages:
Sampling method |
Pump suction |
Gas type |
H2S O2 CO combustible gases/Methane, other gases are customized |
Measure range |
H2S(Hydrogen sulfide): 0-100ppm/200ppm/500ppm, O2(oxygen): 0-25%VOL/30%VOL, CO(Carbon monoxide): 0-500ppm/1000ppm/2000ppm, Ex(Combustible gases and Methane): 0-100%LEL/0-100%VOL, other measure ranges are customized |
Resolution |
H2S(Hydrogen sulfide): 0.1ppm, O2(oxygen): 0.1%VOL, CO(Carbon monoxide): 1ppm, Ex(Combustible gases and Methane): 1%LEL/1%VOL, other resolutions are according to sensors. |
Response time |
≤10 seconds |
Precsiion |
≤±2%F.S |
Language |
English(Other languages can be customized) |
Automatically test and calibrate after power-on |
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
Unit |
PPM and mg/m³ can be switched |
Disaply |
monochrome graphics (160 x96) ,screen can be automatically flipped |
Backlight |
The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
Data record |
Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
Battery |
3.7V rechargeable lithium battery, battery capacity 2200mA |
Working hours |
More than 15 hours in continuous pumping mode |
Charger |
Travel charger with DC interface, charging time ≥ 4 hours |
Explosion-proof grade |
IECEX/ATEX(II IG Ex ia IIC T4 |
Certification |
2004/108/EC(EMC) |
Protection grade |
IP67/IP68 |
Working temperature |
-20ºC~+50ºC |
Humidity |
0~90%RH(no condensation) |
Environmental pressure |
86~106Kpa |
Size |
157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
Weight |
365g (including battery, belt clip and filter) |
Bluetooth function(Optional) | SO2 H2S CO O2 %LEL Multi Gas Detector data can be transmitted to the mobile phone or PC in real time |
Accessories & Configuration List
Multi Gas Detector For Confined Space Standard Accessories
SKY3000
Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
Filter
Storage function(USB cable)
Multi Gas Detector For Confined Space Optional Accessories
Probe
Tube
Bluetooth / Wireless
Float
Hose
Multi Gas Detector For Confined Space Factory advantages:
