4 In 1 Portable Multi Gas Detector Zero Calibration For O2 CH4 CO H2S YT-1200H-S

Basic Information
Place of Origin: China
Brand Name: Yuante
Certification: ATEX/CE
Model Number: YT-1200H-S4-X
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Color box and carton
Delivery Time: 3 working days
Payment Terms: Western Union, T/T
Supply Ability: 3000 pieces/month
Detail Information
Sensor Type: Electrochemistry Model Number: YT-1200HS-S4-X
Measure Range: CO: 0-1000ppm, H2S: 0-100ppm, O2: 0- 30%VOL, EX: 0-100%LEL Resolution: CO: 1ppm, H2S: 0.1ppm, O2: 0.1%VOL, EX: 1%LEL
Application: Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking Housing Material: ABS+ Leather Case
Packaging Type: Color Box And Carton Country Of Original: China
High Light:

30S Portable Multi Gas Detector

,

Zero Calibration Portable Multi Gas Detector

,

ATEX 4 in 1 Gas Detector


Product Description

Portable Multi Gas Detector For O2 CH4 CO H2S 4 in 1 YT-1200H-S Safegas With Zero Calibration





Product Overview

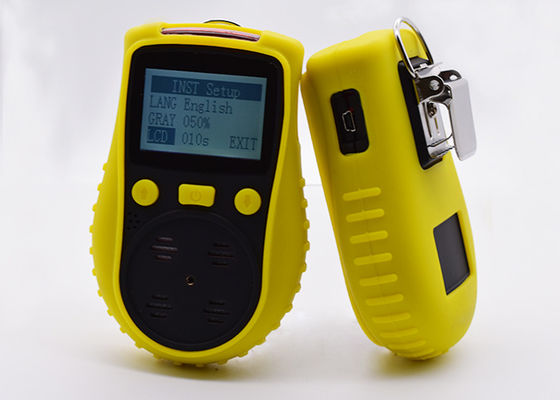

YT-1200H-S series gas detector is kind of mini size, low cost and high accuracy portable multi gas detector. Easy to operate, comprehensive functions, can measure toxic gases, flammable gases and oxygen gases, etc in hazardous environments. The detector is with back clip, protected by silicone case, suitable for different kinds of situations.

The instrument can be customized according to customer needs, single gas, 2 in1, 3 in1, 4 in1 , can display up to 4 kinds of gas values, when the gas to be tested exceeded or below the set alarm value, the instrument will automatically alarm, in sound, light, vibration alarm wats, the alarm can be removed by manual switch. It is widely used in power plant, petrochemical, pharmaceutical, building, mine, metallurgical coking to prevent the occurrence of accidents. It's a compound gas detection alarm which can be configurated flexiblely.
        4 In 1 Portable Multi Gas Detector Zero Calibration For O2 CH4 CO H2S YT-1200H-S 0

Specification



Gas Detected 4 to 1 gas detector (O2 H2S CO EX)
Detection principle Electrochemistry and catalytic combustion
Sampling Method diffusion
Measure Range CO: 0-1000ppm, H2S: 0-100ppm, O2: 0- 30%VOL, EX: 0-100%LEL
Resolution CO: 1ppm, H2S: 0.1ppm, O2: 0.1%VOL, EX: 1%LEL
Precision ≤± 2% -5% F.S.
Data recording

Storage capacity of over 100000 sets.

Interval time ranges from 10-3600seconds are settable.(Optional function)

Response Time ≤30S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(F.S/year) Display Monochrome dot matrix display
Operating language Chinese/English Gas unit ppm, mg/m3,%VOL,%LEL
Temperature -20~50 Humidity 0-95%RH
Explosion-Proof ExiaCT3 Degree of protection IP65
Alarm mode Sound, light, vibration Operating time 14 hour continuously
Dimensions 131*83*35mm Weight 240g
Charger Travel charger with USB Charging time 4-6 hours





Product advantage:

  • Using world-wide reputation sensor with high-precision and long lifetime.
  • Support flexible gas combine, hundreds of gas types are selectable.
  • LCD display with back light function
  • Standard 100 events store function, data can be checked on device
  • One press to restore factory settings.
  • Buzzer sound, light and vibration alarm
  • Optional data logging function, support 100000 readings, data can be checked on device and download through PC software.
  • Big battery capacity with long standby time
  • Strong and upscale alligator clip, convenient to wear
  • Special engineering plastics housing of high intensity, strong and durable, exquisite and comfortable in touching.



What is in the package

  • YT-1200H-S device x 1 PC
  • Charger x 1PC
  • Color Box x 1 PC
  • Warranty card x1 PC
  • Qualification certificate x 1PC
  • User manual x 1PC
