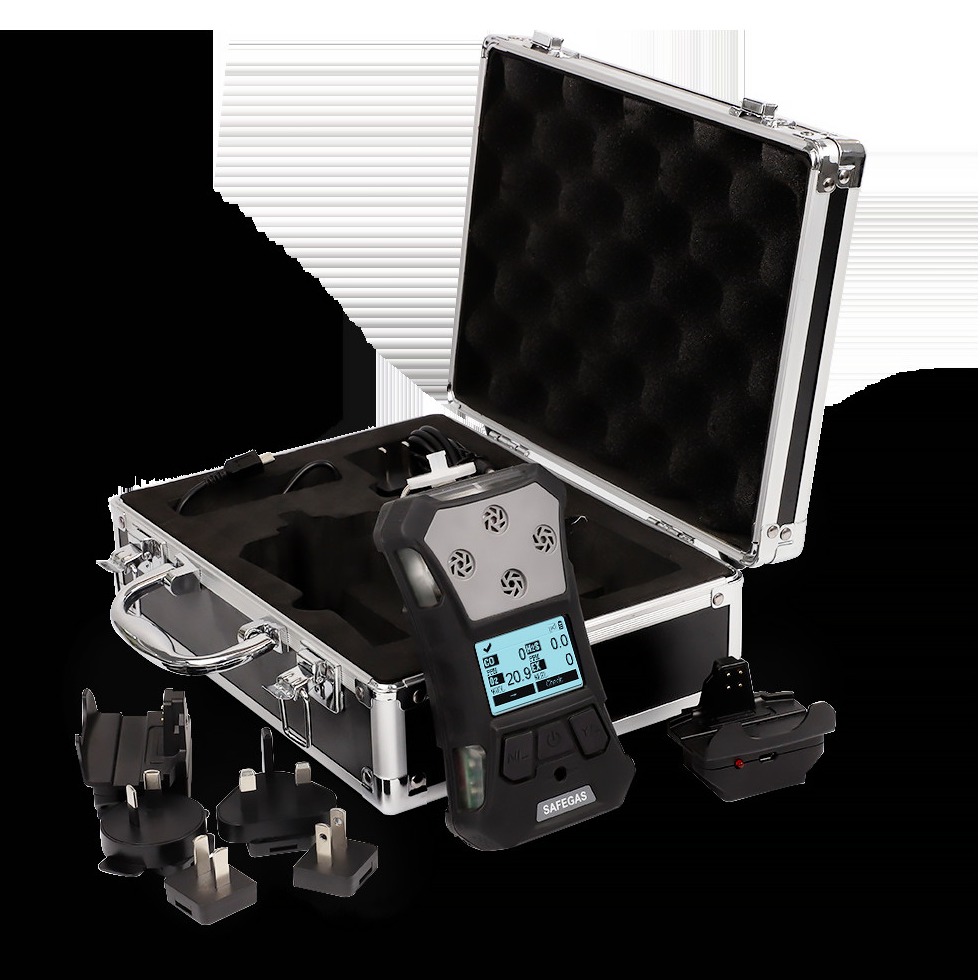

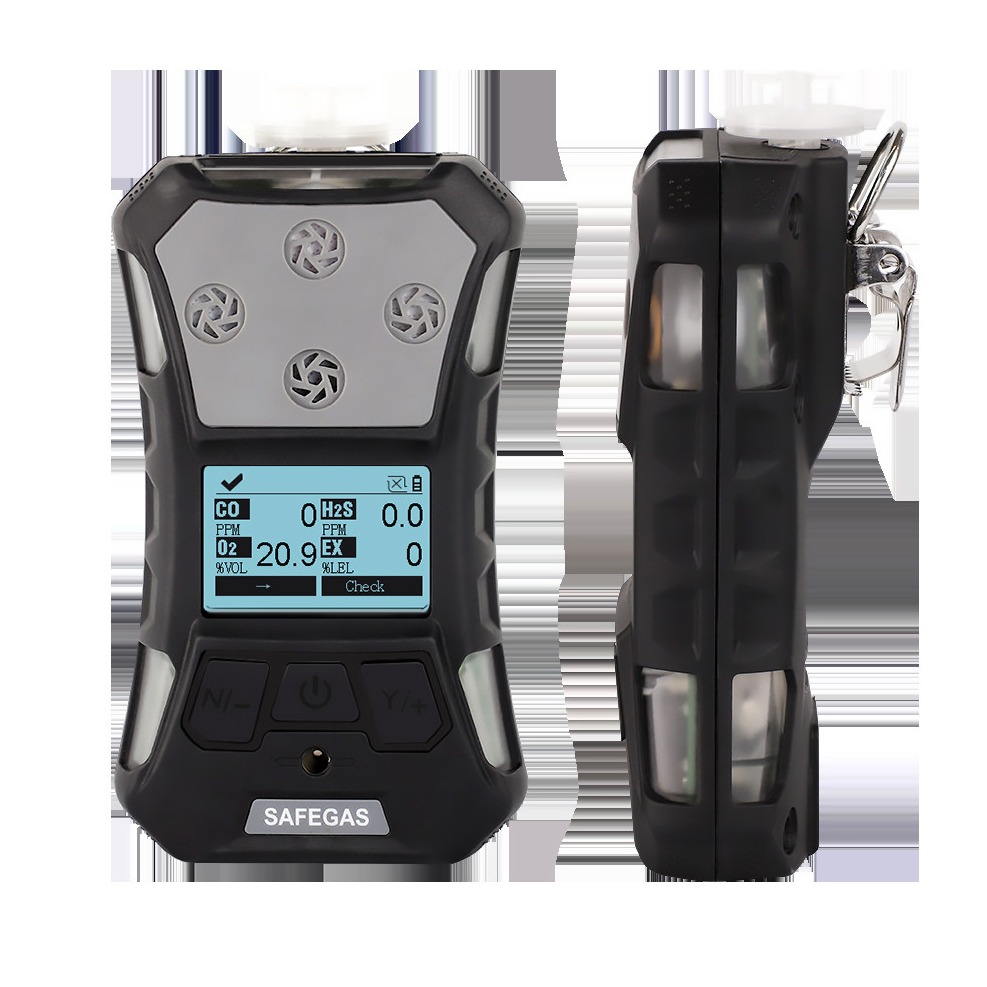

Portable Handle O2 Co H2s Ex Multi Gas Detector With IP67 Explosionproof

The SKY3000 multi gas detector provides 4- or 5-gas monitoring of oxygen (O2), combustible (LEL), toxic gases, carbon dioxide (CO2), and volatile organic compounds (VOCs). SKY3000-M4 is a basic model with O2, LEL, carbon monoxide (CO) and hydrogen sulfide (H2S) configurations, which can be used for diffusion or pumping to meet the requirements for entering confined space. The SKY3000 model adopts a full range of sensor options, such as electrochemical (EC), pellistor, infrared (NDIR), and photoionization detector (PID) in the pump model. SKY3000 uses a combined CO/H2S sensor that can monitor up to five gases. The Bluetooth wireless communication option allows for real-time monitoring of gas readings and alarm status, including human descent alarms at remote locations, for better visibility and faster response



Gas type	Oxygen, Combustible gas, Carbon monoxide, Hydrogen sulfide,Carbon dioxide
Sampling method	pump suction & diffusion dual-use type
Resolution	0.01%VOL,1%LEL,1PPM, 0.01PPM,1PPM
Measure range	0-30%VOL,0-100%LEL,0-1000PPM,0-100PPM,0-5000PPM
Precsiion	≤±2%F.S
Response time	≤30 seconds
Automatically test and calibrate after power-on	Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Language	Chinese/English
Disaply	monochrome graphics (160 x96) ,screen can be automatically flipped
Backlight	The backlight time can be manually set, and will be turned on automatically when an alarm is
Unit	issuedPPM and mg/m³ can be switched
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Data record	Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Battery	3.7V rechargeable lithium battery, battery capacity 2200mA
Charger	Travel charger with DC interface, charging time ≥ 4 hours
Working hours	More than 15 hours in continuous pumping mode
Certification (EU regulations)	2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX)
Explosion-proof grade	IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga
Working temperature	-20ºC~+50ºC
Protection grade	IP67
Environmental pressure	86~106Kpa
Humidity	0~90%RH(no condensation)
Weight	365g (including battery, belt clip and filter)
Size	157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
