| Place of Origin: | China |
|---|---|
| Brand Name: | Yuante |
| Certification: | ATEX/CE |
| Model Number: | SKY8000 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 5 - 7 working days |
| Payment Terms: | Western Union, T/T, Visa, Master Card |
| Supply Ability: | 1000 pieces/Month |
| Detecting Gas: | Detect Upto 18 Gases | Sensor Type: | Combustible: Catalytic Combustion Principle Or Infrared Principle; Oxygen: Electrochemical Principle Or Zirconia Principle; Toxic: Electrochemical Principle; CO2: Infrared Principle; VOC: PID Photo Ion Principle; CH4: Catalytic Combustion Principle Or Infr |
|---|---|---|---|
| Measure Range: | 0～1、10、100、1000、5000、50000、100000 PPM；0-100mg/L、200mg/L； 0-100%LEL；0-10%、20%、50%、99.999%、100%Vol（Measure Range Is Optional And Customerized） | Resolution: | 0.001 PPM（0-1 PPM)；0.01 PPM Or 0.001 PPM（0～10 PPM）； 0.1 PPM Or 0.01 PPM（0～100 PPM）；1 PPM Or 0.1 PPM（0～1000 PPM）； 1 PPM（0～1000 PPM）；0.01mg/L（0～200%mg/L）；0.1%LEL（0-100%LEL)；0.01%(0-100%VOL) |
| Sampling Method: | Pumping Suction | Display: | Formula, Gas Concentration Data, Measurement Trend Curve, Gas Curve, Battery, Time, Temperature, Humidity, Pressure (optional), Pump Condition, Wireless Status, Printer Status, Screen Shot Status |
| Language: | Chinese/English | Warranty: | 1 Year |
| Weight: | 3700g | Product Name: | SKY-8000 Gas Analyzer |
| Size: | 23*13*26cm | Alarm Type: | Buzzer, Red LED And Alarm Status On The Diplay, Fault Alarm, Pump Abnormal Alarm, Low Battery Alarm |
| Usage: | Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking | Color: | Green And Black |
| High Light: | ATEX Multi Gas Detector,32G SD Card Multi Gas Detector,SKY8000 Multi Gas Analyzer |
||

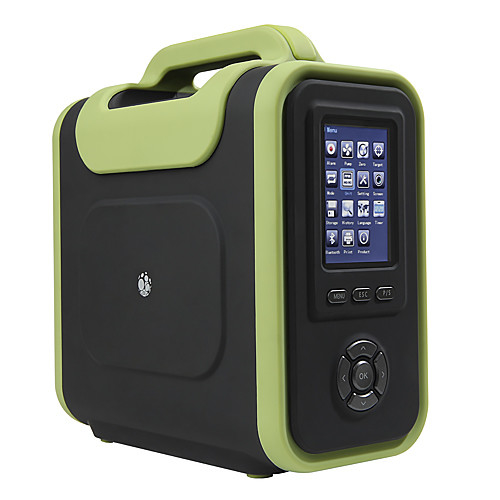

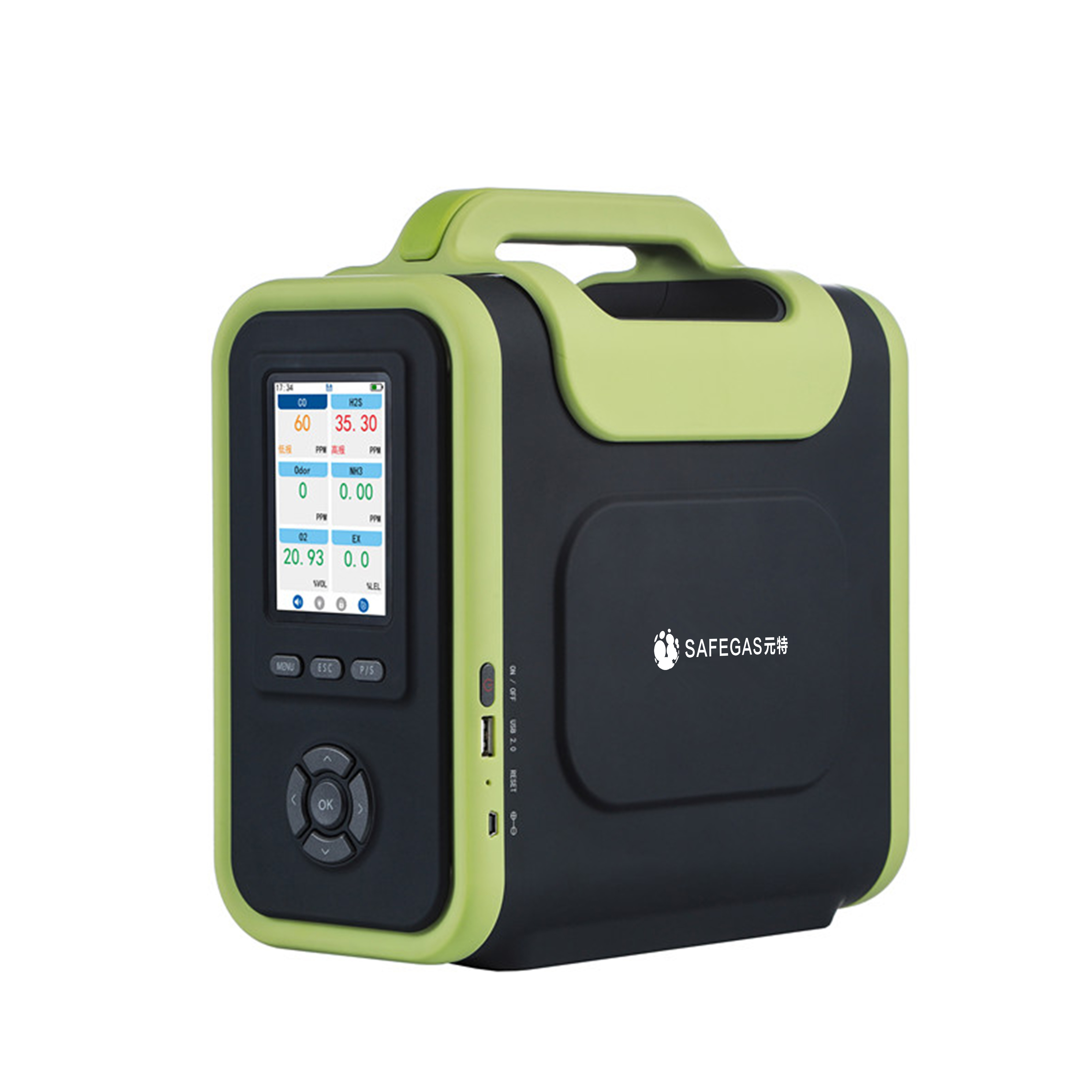

SKY8000 Multi Gas Detector Analyzer Monitoring With 32G SD Memory Card
SO2 NOX Air Quality Multi Gas Detector 0.001PPM High Resolution With CE Certification
Product Features
1. Top brand sensor from internationist, fast response and high precision.
2. Equipped with multi-layer filtering, protect sensor from oil, water vapour, dust, suitable for various kind of industry environment
3. It can detect 18 gas types at the same time, meet many detection demand.
4. 3.5-inch hd LCD screen with resolution 320* 480, with gas concentration data and real-time curve display switchable, clear and smart
5. Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer )
6. Independent SD memory card, standard 16G 32G, measurement data can be record automatically, customizable record time interval.
7.Analyzer can be equipped with internal printer or external Bluetooth printer, to realize the mobile print function(Optional).
Specification
| Gas Detected | Can detect upto 18 gases like O2, CO, CO2, H2, CH4, SO2, NOX, NH3, O3, etc | ||
| Detection principle | Catalytic combustion, Infrared,electrochemical, PID photo ion,thermal conductivity | ||
| Sampling Method | Built-in pump suction sampling, select high-quality micro pump, small noise and vibration. 10 grades adjustable, flow range: 0-500 cc/Min. | ||
| Measure Range |
0～1,10,100,1000,5000,50000,100000 PPM；0-100mg/L,200mg/L；
0-100%LEL；0-10%,20%,50%,99.999%,100%Vol(Measure range is optional and customerized)
|
||
| Resolution |
0.001 PPM(0-1 PPM)；0.01 PPM or 0.001 PPM(0～10 PPM)；
0.1 PPM or 0.01 PPM(0～100 PPM)；1 PPM or 0.1 PPM(0～1000 PPM)；
1 PPM(0～1000 PPM)；0.01mg/L(0～200%mg/L)；0.1%LEL(0-100%LEL)；0.01%(0-100%VOL)
|
||
| Display |
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, pressure (optional), pump condition, wireless status, printer status, screen shot status
|
||
| Alarm | Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm | ||
| Data storage |
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval.
|
||
| Data transmission |
RS232,RS485 singnal output,USB interface data transmission, with the upper computer software, can download storage, analyze and print data
|
||
|
Print function (Optional) |
Optional with internal portable printer or external bluetooth printer | ||
|
Print content (Optional) |
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. | ||
| Charger |
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer )
|
||
| Language | Chinese/English | ||
|
Wireless network (Optional) |
Bluetooth, Zigbee | ||
| Network frequency | 2.4G high frequency. | ||
| wireless transmission | Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m. | ||

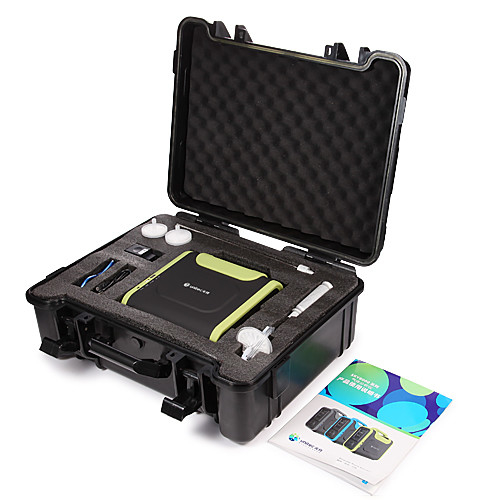

SKY8000 Syngas Analyzer
Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
100°C high temperature probe
Filter
USB cable
Optional Accessories
Probe: 600°C, 1200°C imported from Germany
Bluetooth printer

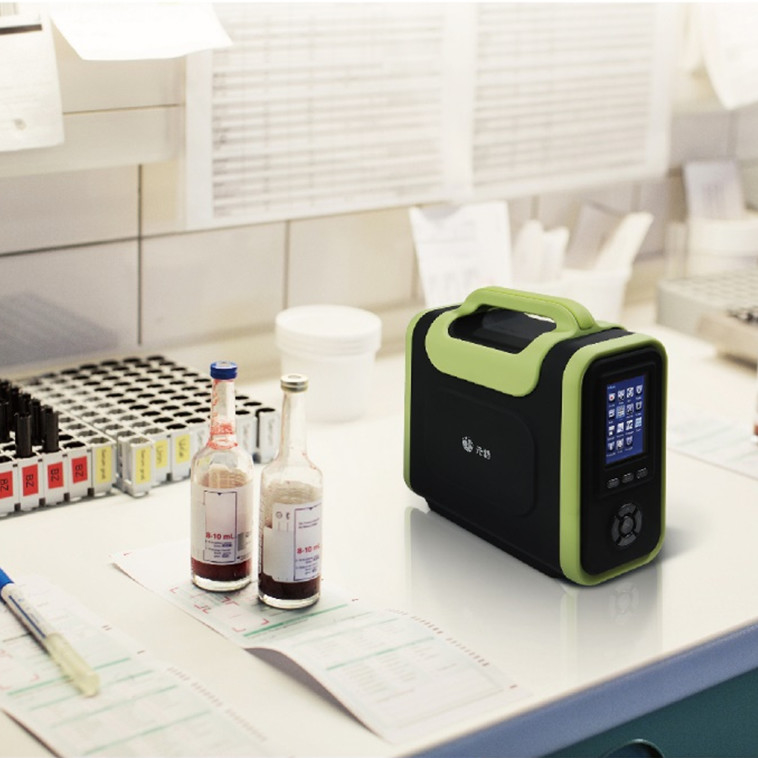

Application
Power plant, petrochemical, pharmaceutical, building, mine, metallurgical coking
