| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX/CE |
| Model Number: | SKY8000 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 5 - 7 working days |
| Payment Terms: | Western Union, T/T, Visa, Master Card |
| Supply Ability: | 1000 pieces/Month |
| Detecting Gas: | O2, CO2, CO, NO, NO2, SO2, VOC, | Measure Range: | Customerized |
|---|---|---|---|
| Resolution: | Customerized | Application: | Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking |
| Sampling Method: | Pumping Suction | Display: | Formula, Gas Concentration Data, Measurement Trend Curve, Gas Curve, Battery, Time, Temperature, Humidity, Pressure (optional), Pump Condition, Wireless Status, Printer Status, Screen Shot Status |
| Alarm: | Buzzer, Red LED And Alarm Status On The Display, Fault Alarm, Pump Abnormal Alarm, Low Battery Alarm | Language: | Chinese/English |
| Warranty: | 12 Month | Weight: | 3700g |
| Size: | 23*13*26cm | Sensor: | Electrocemical And Infrared Sensor |
| High Light: | Flue Sensor Portable Gas Analyzer,Electrochemistry Portable Gas Analyzer,SKY8000 Multi Gas Meter |
||

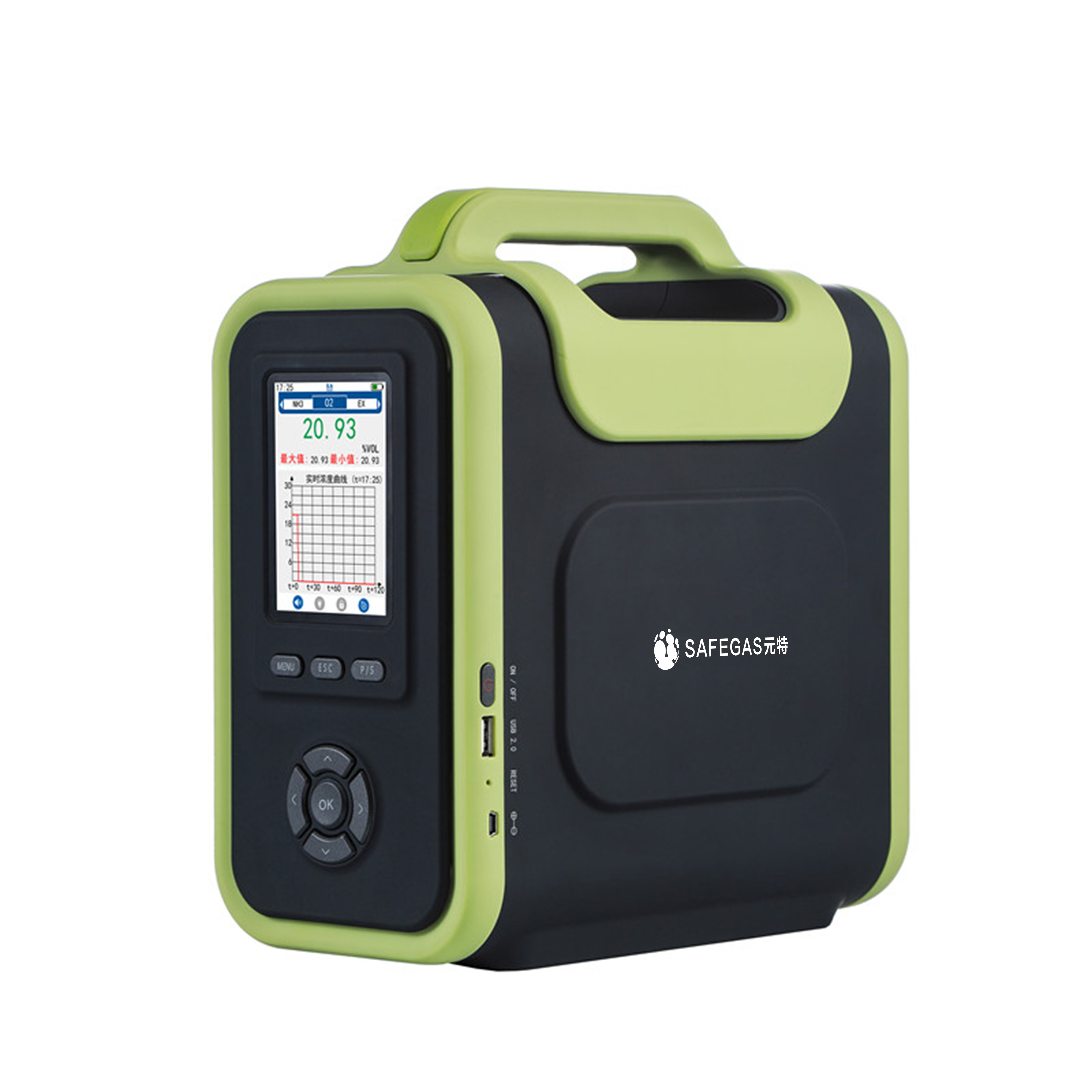

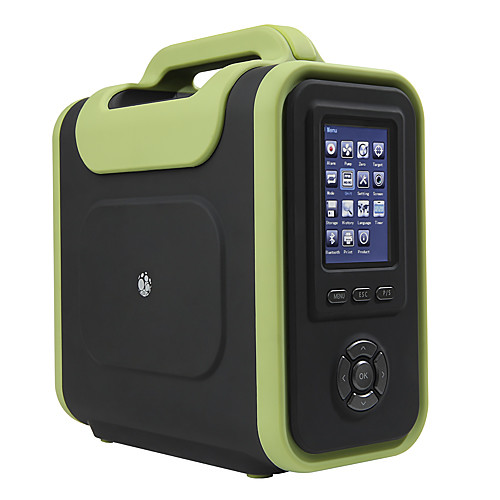

Independent SD Card Flue Sensor Portable Gas Analyzer With Printer
Independent SD memory card Portable Gas Analyer with Printer Bluetooth Connection
Product overview
Product advantage
1. Top brand sensor from UK and Built in micro sampling pump, fast response and high precision.
2. Special structure design and selected aviation wear-resisting material, suitable for various kind of industry environment
3. Up to 18 gases can be detected at the same time, meet many detection demand.
4. 3.5inch high definition color screen, with gas concentration data and real-time curve display switchable, clear and smart
5. With Mini-USB charging interface designm ,makes charging more convenient
6. With independent SD memory card, historical tested data can be viewed and deleted and the storage space can be customized
7.Analyzer can be equipped with internal printer or external Bluetooth printer, to realize the mobile print function(Optional).
Specification
| Sensors | Professional Flue Sensor, Electrochemistry, PID, IR, Catalytic combustion, according to sensors. |
| Measure range | 0-1000ppm, 0-2000ppm, 0-5000ppm, 0-10000ppm, 0-50%VOL, 0-100%VOL (Measure range is optional and customized) |
| Resolution | 1ppm, 0.01%VOL, according to measure ranges and sensors. |
Display |
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm | Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage | Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval. |
| Data transmission and download | RS232,RS485 signal output, USB interface data transmission, with the upper computer software, can download storage, analyze and print data |
| Print function(Optional) | Optional with internal portable printer or external Bluetooth printer |
| Print content(Optional) | Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
Charger |
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer ) |
| Language | Chinese/English |
| Wireless network (optional) | Bluetooth, Zigbee |
| Network frequency | 2.4G high frequency. |
| wireless transmission distance | Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m. |

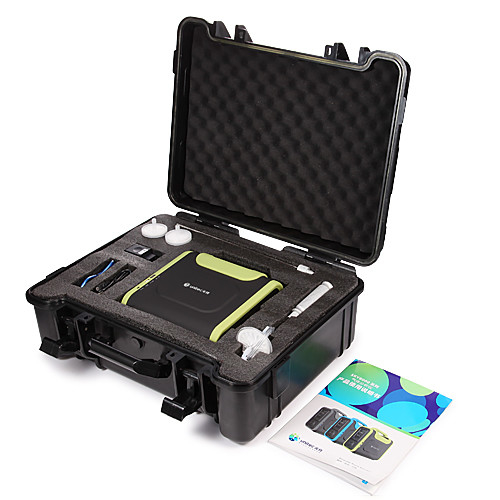

Accessories & Configuration List
Standard Accessories
SKY8000 Syngas Analyzer
Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
100°C high temperature probe
Filter
USB cable
Optional Accessories
Probe: 600°C, 1200°C imported from Germany
Bluetooth printer
