| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX,CE,CPA |
| Model Number: | SKY2000 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | 450-3000 US$ |
| Packaging Details: | Aluminum Suitcase Packing |
| Delivery Time: | 3-5 work days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 1000pcs/day |
| Model NO.: | SKY2000 | Mode: | Portable |
|---|---|---|---|
| Gas: | O2 CO H2S EX | Sampling Method: | Pumping |
| Transport Package: | Aluminum Suitcase Packing | Trademark: | Safegas |
| HS Code: | 9027100090 | Customized: | Customized |
| Type: | Electrochemical Gas Analyzer | Language: | English |
| Origin: | China | ||
| High Light: | ATEX Multiple Gas Detector,H2S EX Multiple Gas Detector,Self calibration H2S Gas Monitor |
||
CE Approval Multiple Portable Gas Detector For O2 CO H2S EX Gas Monitor
Characteristics & Functions
1. LCD dot matrix display, gas type, unit, concentration, and local time can be displayed on the screen.
2. Supports Chinese and English operations, making switching convenient.
3. The gas concentration units PPM and mg/m3 can be quickly switched.
4. Explosion proof certification, explosion-proof grade: II 2G Ex ia IIC T4 Ga IP66.
5. Monitor the hydrogen concentration in the environment and confined space and give an alarm.
6. It has self calibration and zero calibration functions, making detection more accurate and reliable.
7. Press once to restore factory settings, eliminating the trouble of misoperation.
8. Sound and light two-level alarm, alarm points can be set.
9. High capacity rechargeable lithium polymer batteries.
10. It has temperature and pressure compensation functions, which can achieve gas concentration compensation under different temperature or pressure conditions.
Specificiation
|
Gas Detected |
O2 CO H2S EX |
||
|
Detection principle |
Electrochemistry, Catalytic combustion |
||
|
Sampling Method |
Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. |
||
|
Measure Range |
Customized |
||
|
Resolution |
Customized |
||
|
Precision |
2%FS |
||
|
Signal Output |
High-speed data transmission by USB, available for data downloading and |
||
|
Response Time |
≤10S |
Recovery Time |
≤10S |
|
Repeatability |
≤±1% |
Linearity error |
≤±1% |
|
Zero shift |
≤±1%(F.S/year) |
Display |
LCD dot matrix display |
|
Operating language |
Chinese/English |
Gas unit |
ppm, mg/m3 |
|
Temperature |
-20ºC~50ºC |
Humidity |
0-95%RH |
|
Explosion-Proof |
Exiia IICT4 |
Degree of protection |
IP66 |
|
Alarm mode |
Sound, light, vibration |
Operating time |
12h |
|
Dimensions |
205*75*32mm |
Weight |
300g |

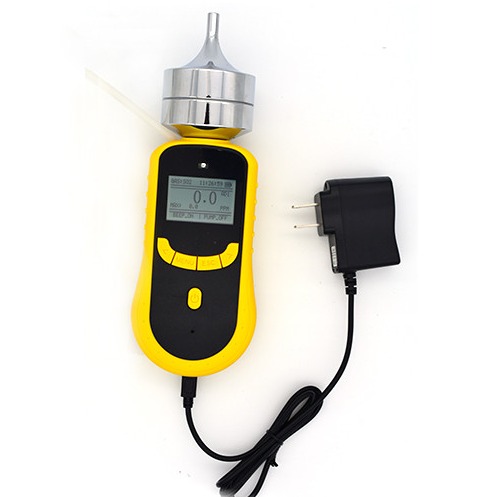

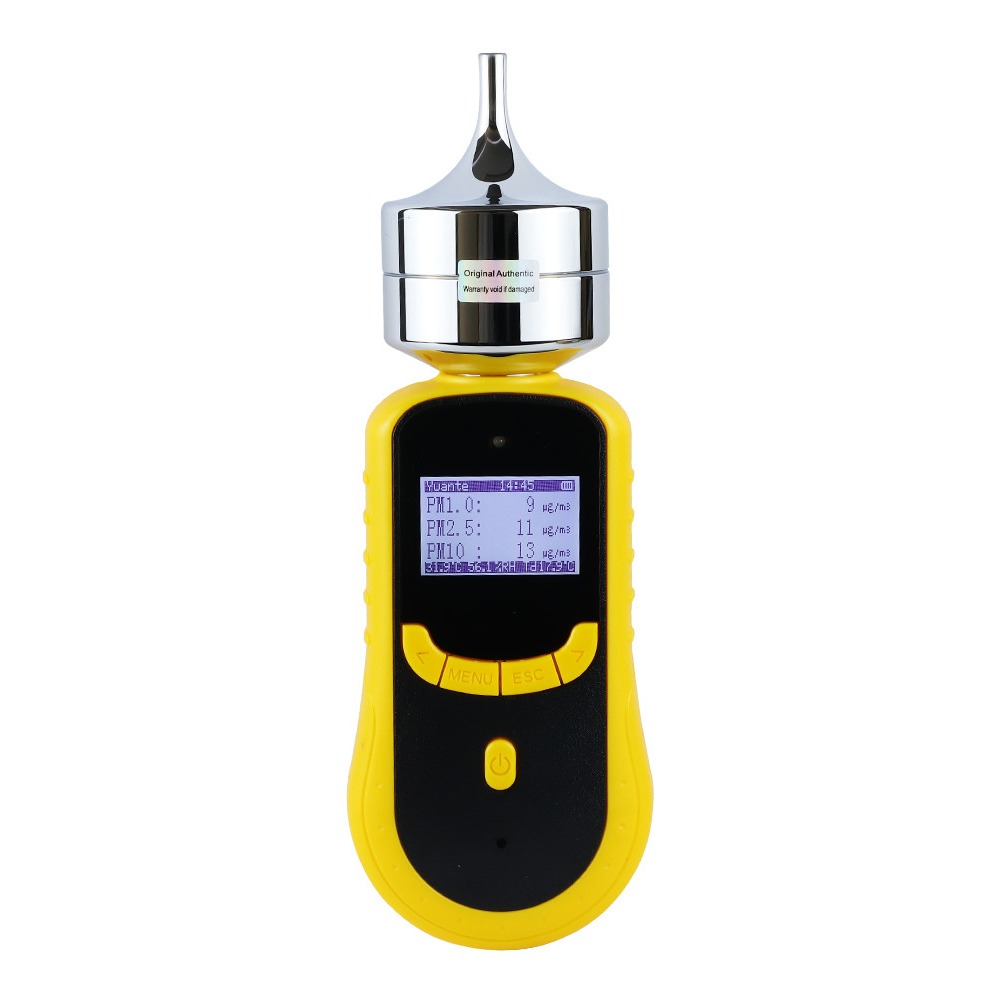

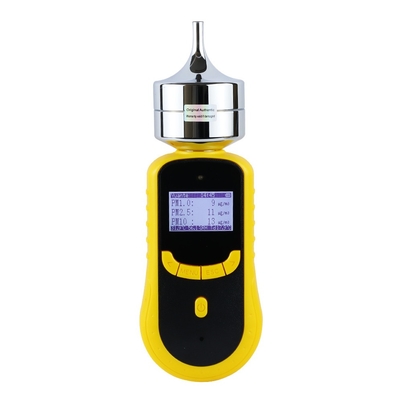

Product Picture
Package
Company information
Shenzhen Yuante Technology Co., Ltd. was established in 2010, focusing on gas monitoring equipment and system development, production and sales. Take "Gas detector" for example core products, formed for petroleum, chemical, pharmaceutical, energy, environmental protection,
electronics, municipal engineering, agriculture and forestry, small household appliances and other industries, different scale,different applications of ten series of products and targeted solutions, through the near ten years of rapid growth, Yuante has developed into a domestic gas monitoring equipment and the leading brand of the system. The company passed the national high - tech in 1990 enterprise certification, A number of products have obtained I E C E x, A T E X and other international and domestic explosion-proof certification; ISO 9 0 0 1, ISO 1 4 0 0 1 and other quality and environment system certification, at the same time has more than 100 independent intellectual property patents.
