| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | IECEX, ATEX, ISO9001, CE, CNEX, SIL |
| Model Number: | SKY3000 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 1 working days |
| Payment Terms: | Credit Card, T/T, Western Union |
| Supply Ability: | 1000 pieces/week |
| Product: | Portable Gas Detection Equipment | Sampling Method: | Inner Pump |
|---|---|---|---|
| Alarm Type: | Sound&Light With Vibration | Resolution: | Resolutions Are According To Sensors |
| Sensors Brand: | City&Honeywell | Wireless: | Bluetooth / Rola / 4G (Optional Function) |
| Water-proof Protection: | IP67 | Response: | T90<20S |
| Certifications: | IECEX&ATEX&CE&EMC | Weight: | 365g |
| Product Name: | Sky-3000 Gas Detector | Size: | 157*84.5*59.5mm |
| Operating Humidity: | 0-95%RH | Warranty: | One Year |
| High Light: | IECEX Multiple Gas Detector,IP67 Multiple Gas Monitor,ATEX Multi Gas Sensor |
||
IECEX ATEX Multiple Gas Detector IP67 Exia IICT4 Ga Explosion Proof
IECEX, ATEX explosion-proof certification Portable Multiple Gas Detector IP67 Exia IICT4 Ga
|
Sampling method |
Pump suction |
|
Gas type |
H2S O2 CO combustible gases/Methane, other gases are customized |
|
Measure range |
H2S(Hydrogen sulfide): 0-100ppm/200ppm/500ppm, O2(oxygen): 0-25%VOL/30%VOL, CO(Carbon monoxide): 0-500ppm/1000ppm/2000ppm, Ex(Combustible gases and Methane): 0-100%LEL/0-100%VOL, other measure ranges are customized |
|
Resolution |
H2S(Hydrogen sulfide): 0.1ppm, O2(oxygen): 0.1%VOL, CO(Carbon monoxide): 1ppm, Ex(Combustible gases and Methane): 1%LEL/1%VOL, other resolutions are according to sensors. |
|
Response time |
≤10 seconds |
|
Precsiion |
≤±2%F.S |
|
Language |
English(Other languages can be customized) |
|
Automatically test and calibrate after power-on |
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
|
Unit |
PPM and mg/m³ can be switched |
|
Disaply |
monochrome graphics (160 x96) ,screen can be automatically flipped |
|
Backlight |
The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
|
Data record |
Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
|
Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
|
Battery |
3.7V rechargeable lithium battery, battery capacity 2200mA |
|
Working hours |
More than 15 hours in continuous pumping mode |
|
Charger |
Travel charger with DC interface, charging time ≥ 4 hours |
|
Explosion-proof grade |
IECEX/ATEX(II IG Ex ia IIC T4 |
|
Certification |
2004/108/EC(EMC) |
|
Protection grade |
IP67/IP68 |
|
Working temperature |
-20ºC~+50ºC |
|
Humidity |
0~90%RH(no condensation) |
|
Environmental pressure |
86~106Kpa |
|
Size |
157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
|
Weight |
365g (including battery, belt clip and filter) |
| Bluetooth function(Optional) | SO2 H2S CO O2 %LEL Multi Gas Detector data can be transmitted to the mobile phone or PC in real time |
Accessories & Configuration List

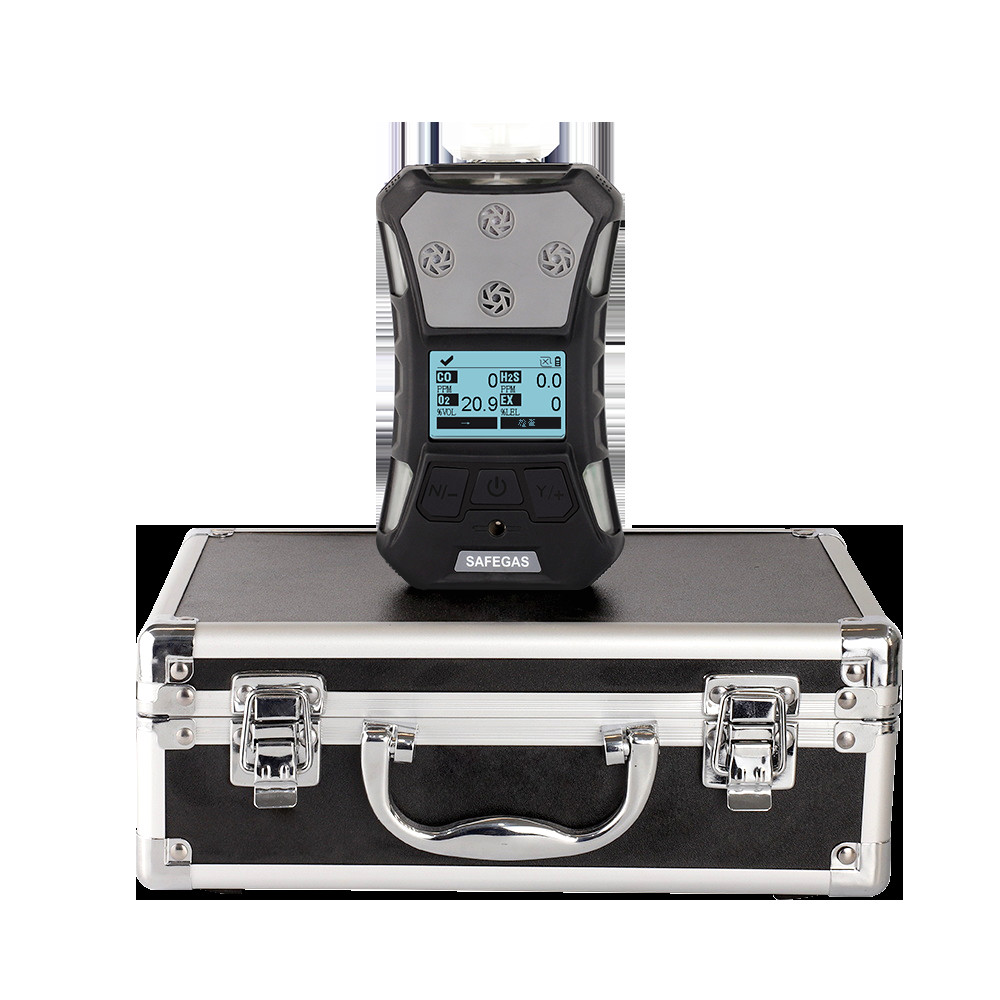

Standard Accessories
SKY3000
Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
Filter
Storage function(USB cable)
Optional Accessories
Probe
Tube
Bluetooth App
Other normal gas types (Gases are not listed can be customized):
Portable Gas Detection Equipment Factory advantages:
A Professional: We have been focused on gas detection devices for more than 10 years and been cooperating with PB group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc famous companies. We are with rich experience to provide you professional solutions.
