Detail Information

Sensor Type:	Electrochemistry	Model Number:	YT-1200HS-S4-X
Measure Range:	CO: 0-1000ppm, H2S: 0-100ppm, O2: 0- 30%VOL, EX: 0-100%LEL	Resolution:	CO: 1ppm, H2S: 0.1ppm, O2: 0.1%VOL, EX: 1%LEL
Application:	Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking	Housing Material:	ABS+ Leather Case
Packaging Type:	Color Box And Carton	Country Of Original:	China
Weight:	240g	Size:	1318335mm
Name:	YT-1200H-S Gas Detector	Warranty:	One Year
Highlight:	Diffusion Portable Gas Leak Detector , ATEX Portable Gas Leak Detector , H2S LEL Portable Flue Gas Analyzer

Product Description

Mini CO H2S O2 LEL Portable Gas Leak Detector Diffusion Sampling Method

Mini size Portable CO H2S O2 LEL Gas Detector Diffusion Sampling method

Company advantage

A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.

B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market

C Quality: international top brands sensor and IC /100% production test, make sure a good quality

D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.

E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety health

Product overview

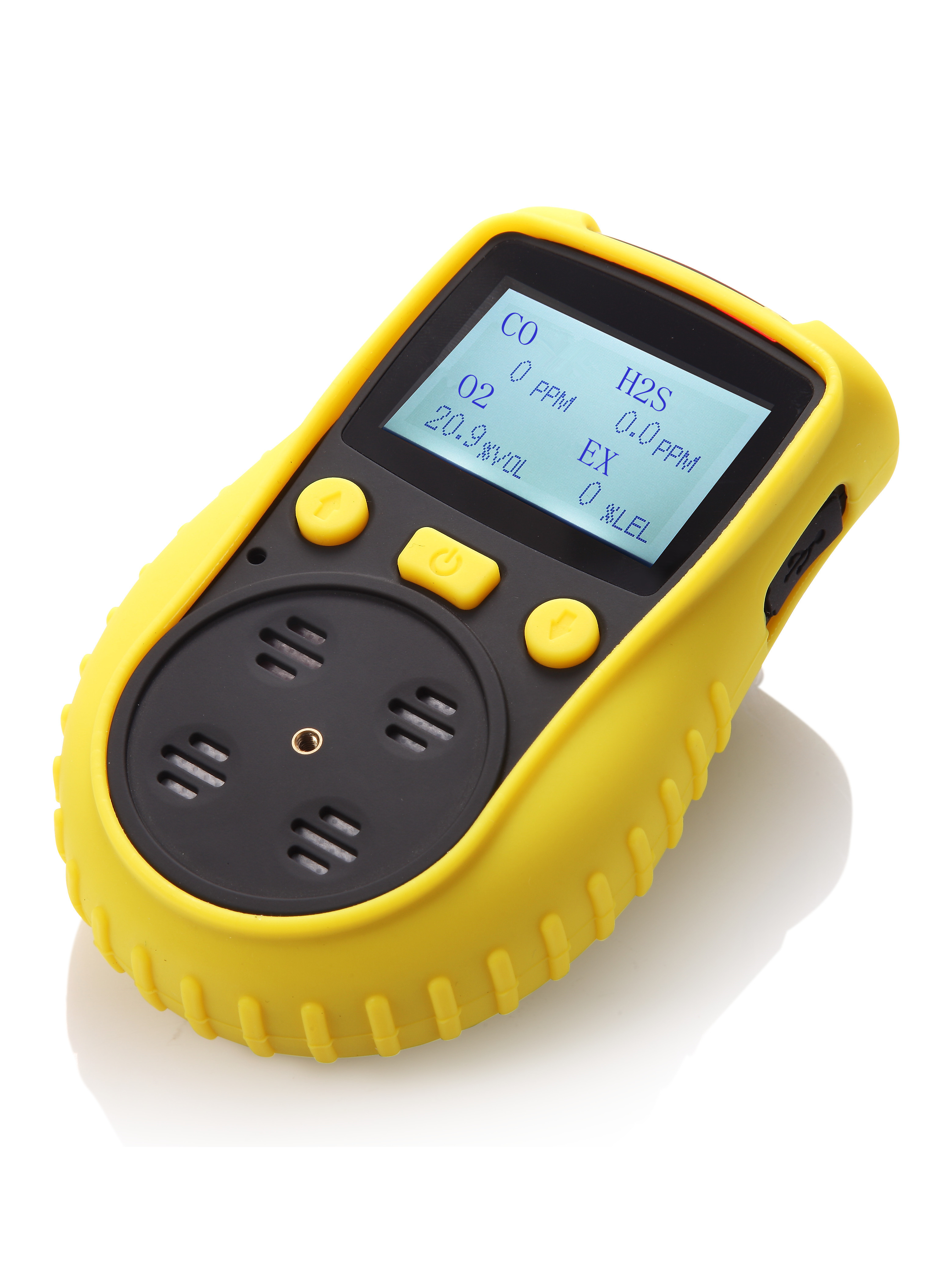

YT-1200H-S series gas detector is kind of mini size, low cost and high accuracy portable multi gas detector. Easy to operate, comprehensive functions, can measure toxic gases, flammable gases and oxygen gases, etc in hazardous environments. The detector is with back clip, protected by silicone case, suitable for different kinds of situations.

Product advantage:

1. Employ original imported high-precision sensor.
2. Four random gas sensors can be combined freely.
3. LCD dot matrix display,
4. Chinese and English operation.
5. The gas concentration unit PPM and mg/m3 can be shifted quickly.
6. The battery and voltage can be checked by one press.
7. One press to restore factory settings.Ultra-high buzzer alarm sound, alarm with sound, light and vibration at the same time

Specification

Gas Detected	4 to 1 gas detector (O2 H2S CO EX)
Detection principle	Electrochemistry and catalytic combustion
Sampling Method	diffusion
Measure Range	CO: 0-1000ppm, H2S: 0-100ppm, O2: 0- 30%VOL, EX: 0-100%LEL
Resolution	CO: 1ppm, H2S: 0.1ppm, O2: 0.1%VOL, EX: 1%LEL
Precision	≤± 2% -5% F.S.
Data recording	Storage capacity of over 100000 sets. Interval time ranges from 10-3600seconds are settable.(Optional function)
Response Time	≤30S	Recovery Time	≤10S
Repeatability	≤±1%	Linearity error	≤±1%
Zero shift	≤±1%(F.S/year)	Display	Monochrome dot matrix display
Operating language	Chinese/English	Gas unit	ppm, mg/m3,%VOL,%LEL
Temperature	-20℃~50℃	Humidity	0-95%RH
Explosion-Proof	ExiaⅡCT3	Degree of protection	IP65
Alarm mode	Sound, light, vibration	Operating time	14 hour continuously
Dimensions	1318335mm	Weight	240g

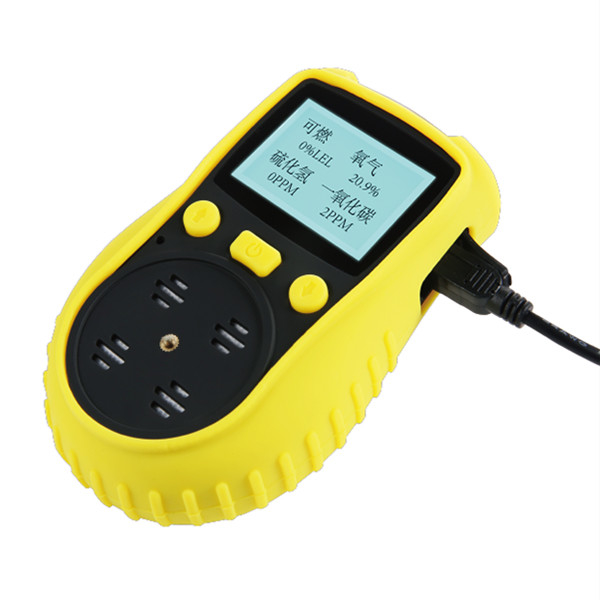

Charger	Travel charger with USB	Charging time	4-6 hours

Mini CO H2S O2 LEL Portable Gas Leak Detector Diffusion Sampling Method 0

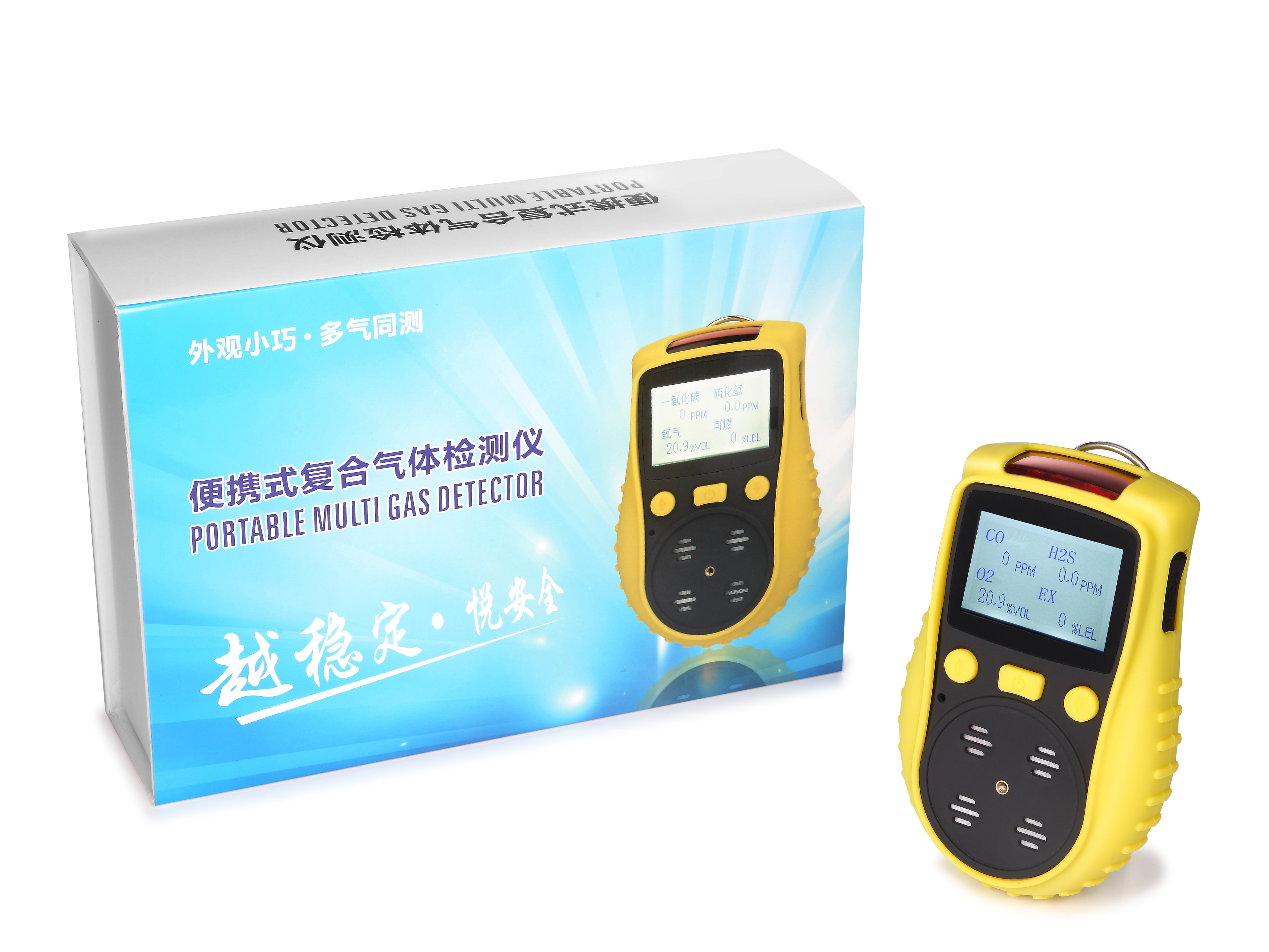

What is in the package

YT-1200H-S device x 1 PC
Charger x 1PC
Color Box x 1 PC
Warranty card x1 PC
Qualification certificate x 1PC
User manual x 1PC

Tag:

Place of Origin:	China
Brand Name:	Yuante
Certification:	ATEX/CE
Model Number:	YT-1200H-S4-X

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Color box and carton
Delivery Time:	3 working days
Payment Terms:	Western Union, T/T
Supply Ability:	3000 pieces/month
