Home > Products> Toxic Gas Detector> RS485 MODBUS Signal Toxic Gas Detector Non Contacted Control

RS485 MODBUS Signal Toxic Gas Detector Non Contacted Control

RS485 MODBUS Signal Toxic Gas Detector Non Contacted Control
RS485 MODBUS Signal Toxic Gas Detector Non Contacted Control RS485 MODBUS Signal Toxic Gas Detector Non Contacted Control RS485 MODBUS Signal Toxic Gas Detector Non Contacted Control
Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-95H-VOC
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/week
Get Best Price Contact Now
Detail Information
Model Number: YT-95H-VOC Detected Gas: VOC
Sensor Principle: PID(IONSCIENCE Brand Sensor From UK) Measure Range: Specified According To Application
Resolution: Specified According To Application Install Method: Wall-mounted, Piping Type, Flow-type
Power Supply: 24V DC Gross Weight: 3 KG
Product Size: 180*150*90mm Warranty: 1 Year
High Light:

RS485 MODBUS Signal Toxic Gas Detector

,

PID Toxic Gas Detector

,

RS485 MODBUS Signal Toxic Gas Meter

Product Description

RS485 MODBUS Signal Toxic Gas Detector Non Contacted Control



24 hours Fix type on wall Gas Detector Non-contacted control the device



Product Overview

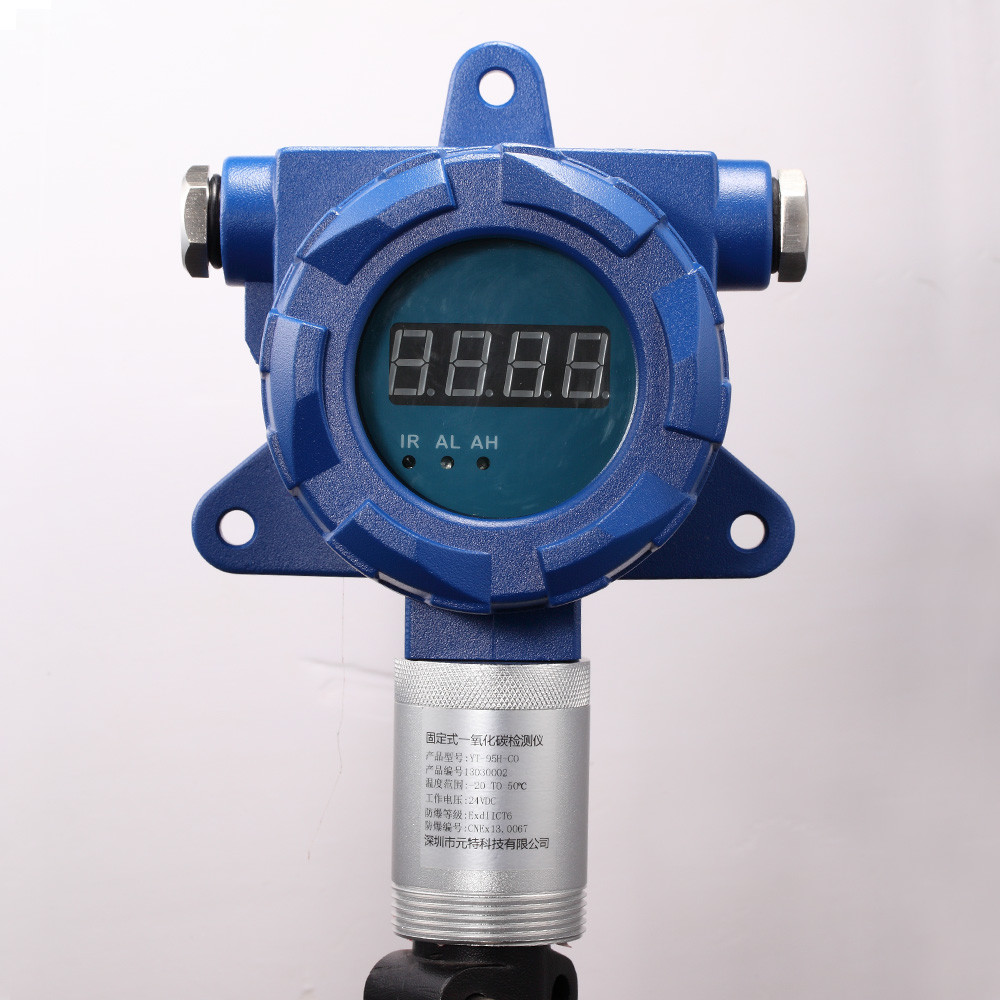

YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations.



Product Advantages



  • Non-contacted control the device
  • Diversified output signals
  • Variety of installation methods
  • Data transmission
  • High quality case
  • With infrared ray controller, which can remote control alarm
  • point settings, zero calibration, and address modification.
  • 4-20mA current signal output, compatible with
  • different kinds of controllers.
  • RS485 MODBUS signal output.Relay signal output,
  • to turn on/off ventilator, generators or other externalRS485 MODBUS Signal Toxic Gas Detector Non Contacted Control 0


Specification

Gas detected O2, N2, CO2, EX, VOC
Detection principle
Specified according to application
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range
Specified according to application
Resolution
Specified according to application
Precision ≤± 1-2% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit %VOL
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof II 2G Ex db IIC T6 Gb IP65 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg







Other normal gas types (Gases are not listed can be customized):

Flammable gas(EX)
Oxygen(O2)
Carbon monoxide(CO)
Hydrogen (H2)
Methane (CH4)
Carbon Dioxide(CO2)
Chlorine dioxide(CLO2)
Ozone(O3)
Ammonia(NH3)
Nitrogen(N2)


FAQS

  • Can I have a sample order? Yes, we welcome sample order for to test and check quality
  • Do you have a MOQ limit? No, we don't, one piece is also welcomed
  • .What is the payment terms? Visa,Mastercard, e-checking, T/T, Western Union, Alipay.
  • What certificate do you have? ATEX, IECEX, CE, ISO, CNEX explosion proof, CMC, if you have any other requirement with certification, we also would like to help you.
  • How about packing? Aluminum suitcase, carton box

Industry Application
Park, woodland, Municipal Engineering, Ports, warehousing, airports, Railway tunnel, Community, school, hospital, other urban construction
