Detail Information

Model Number:	YT-95H-A	Detected Gas:	O2, N2, CO2, EX, VOC
Sensor Principle:	Specified According To Application	Measure Range:	Specified According To Application
Resolution:	Specified According To Application	Install Method:	Wall-mounted, Piping Type, Flow-type
Power Supply:	24V DC	Gross Weight:	3 KG
Product Size:	18015090mm	Warranty:	1 Year
Highlight:	IP65 Toxic Gas Detector , Alarm Light Toxic Gas Detector , RS485 Gas Leakage Detector

Product Description

YT-95H-A IP65 protection degree Gas Detector RS485 and 4-20mA signal

Company profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.

Product Overview

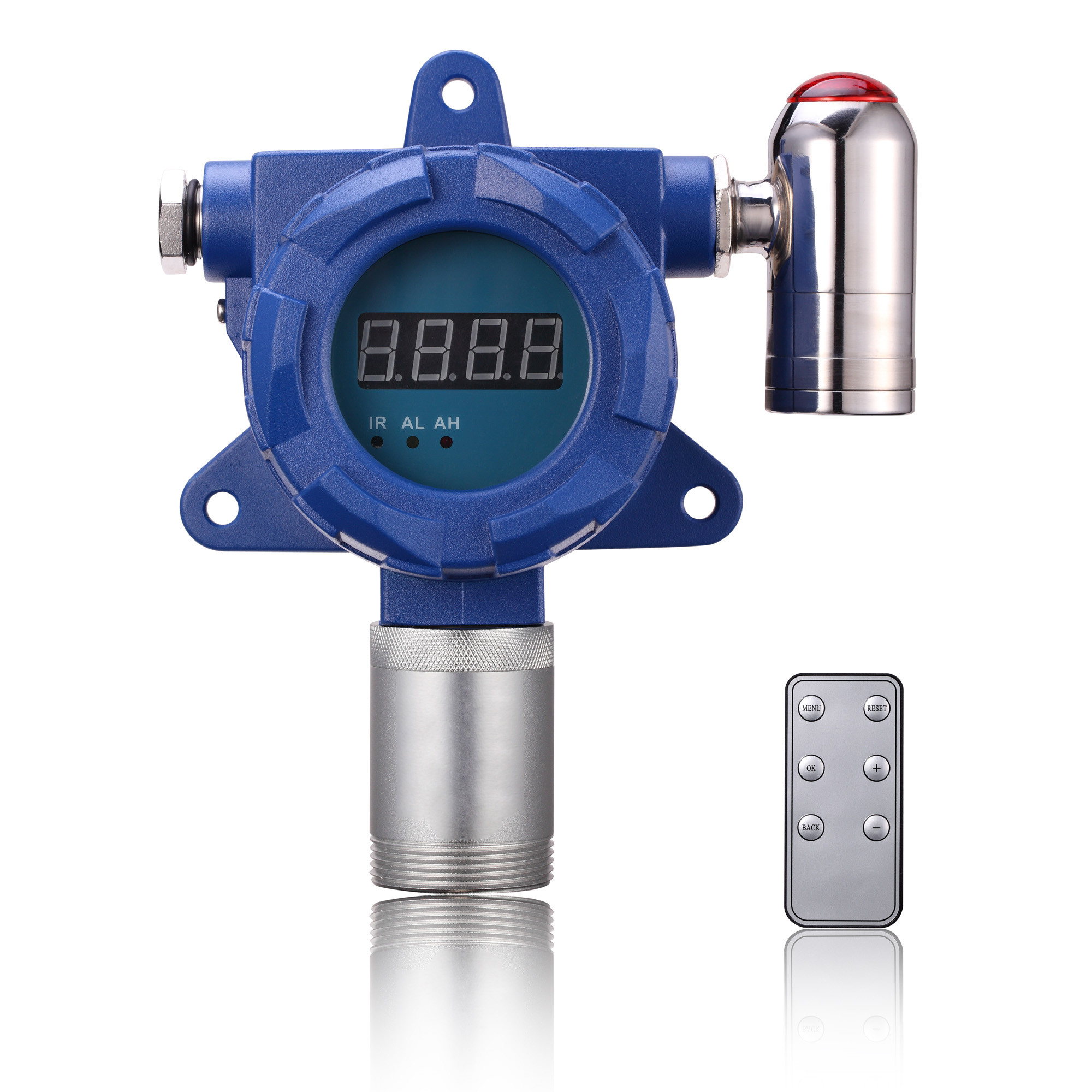

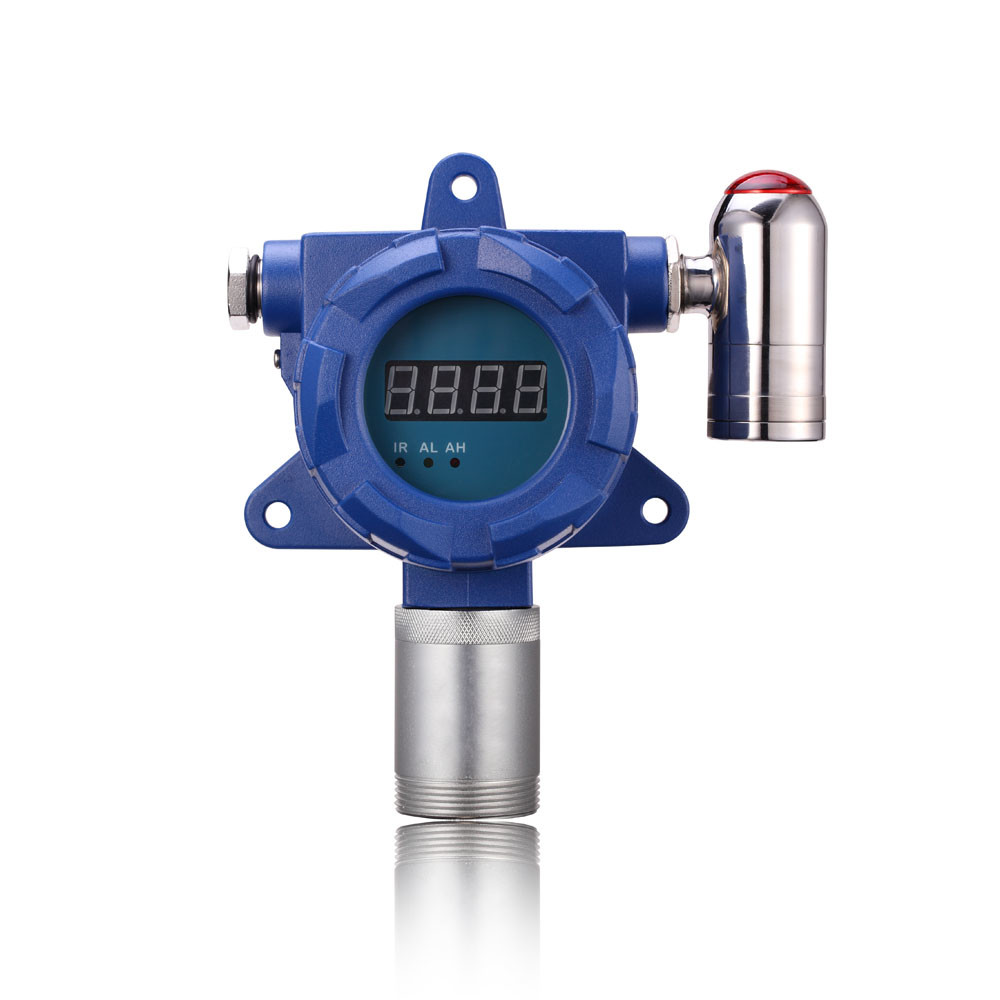

YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations.

Product Features

1. Infrared ray control function, which can non-contacted control the detector. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system

2. an output one or two on-off signals, can drive ventilator or solenoid valve and other external devices

3. Two-stage alarm with sound and light, alarm point is settable

4. Use imported US/UK original sensors to keep the high precision and fast response

5. Working Voltage:12-36V DC

6. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures

7. Explosion-proof grade: II 2G Ex db IIC T6 Gb IP65

8. Monitor the CH4 Methane gas concentration in environment or pipeline and alarm

9. Case:die-cast aluminum + stainless steel (alarm light)

Specification

Gas detected	O2, N2, CO2, EX, VOC
Detection principle	Specified according to application
Install method	Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range	Specified according to application
Resolution	Specified according to application
Precision	≤± 1-2% FS
Signal output	4-20mA, 0-5V, RS485, relay(optional)
Response time	≤10S	Recovery time	≤10S
Repeatability	≤±1%	Linearity error	≤±1%
Zero shift	≤±1%(FS/year)	Display	High-light nixie tube display
Connection mode	G1/2 external thread explosion-proof flexible pipe	Unit	%VOL
Temperature	-20 to 50°C	Humidity	0-95%RH
Explosion-proof	II 2G Ex db IIC T6 Gb IP65	Degree of protection	IP65
Alarm	Sound, light	Operating time	24H
Dimensions	18015090mm	Weight	≤2kg

What is our advantage

A Professional: We have been focused on gas detection devices for more than 10 years and been cooperating with PB group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc famous companies. We are with rich experience to provide you professional solutions.

B Innovation: Strong R&D team (invest 40% revenues into research and experienced engineers team) makes our products stand out in the market.

C Quality: International top brands sensor and IC /100% production test, make sure a good quality.

D Professional technical support: Provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.

E Completed certifications: ATEX / SIL / CE / CNEX / ISO9001/, meet government standard as well guarantee your safety health.

F Services: We provide 24*7 hours service, if there have any question, Celia will reply you in 1 hours. Meanwhile, we can provide OEM services.

G Delivery: We can ship it out in 2-3 days. For some mass production and special customised gas analyzer, we can ship it out in 7 days.

FAQS

Can I have a sample order? Yes, we welcome sample order for to test and check quality
Do you have a MOQ limit? No, we don't, one piece is also welcomed

.What is the payment terms? Visa,Mastercard, e-checking, T/T, Western Union, Alipay.
What certificate do you have? ATEX, IECEX, CE, ISO, CNEX explosion proof, CMC, if you have any other requirement with certification, we also would like to help you.
How about packing? Aluminum suitcase, carton box

Industry Application

Park, woodland, Municipal Engineering, Ports, warehousing, airports, Railway tunnel, Community, school, hospital, other urban construction

Tag:

Place of Origin:	China
Brand Name:	SZYUANTE
Certification:	ATEX/CE
Model Number:	YT-95H-VOC

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Aluminum Suitcase
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	100 pieces/week
