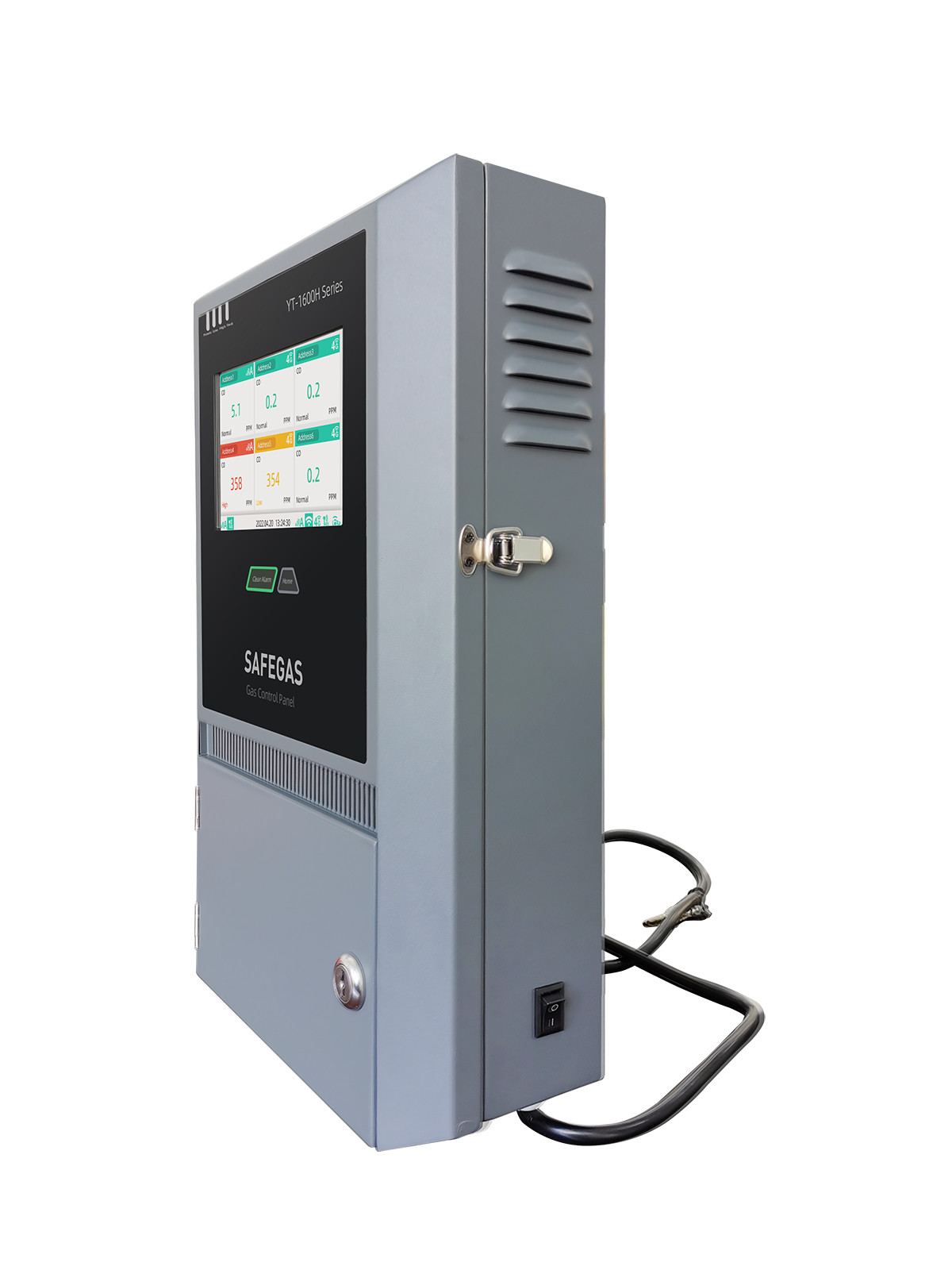

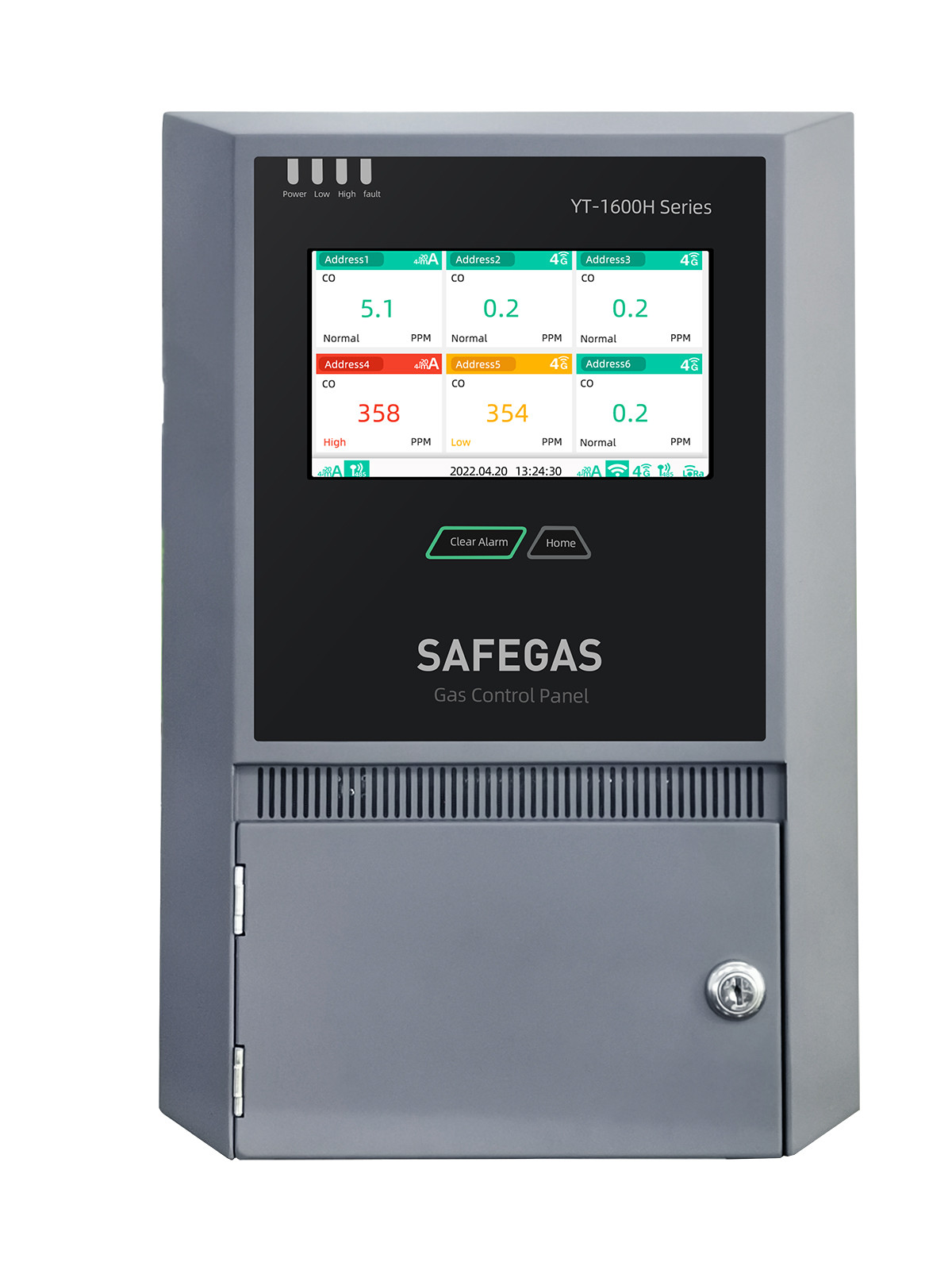

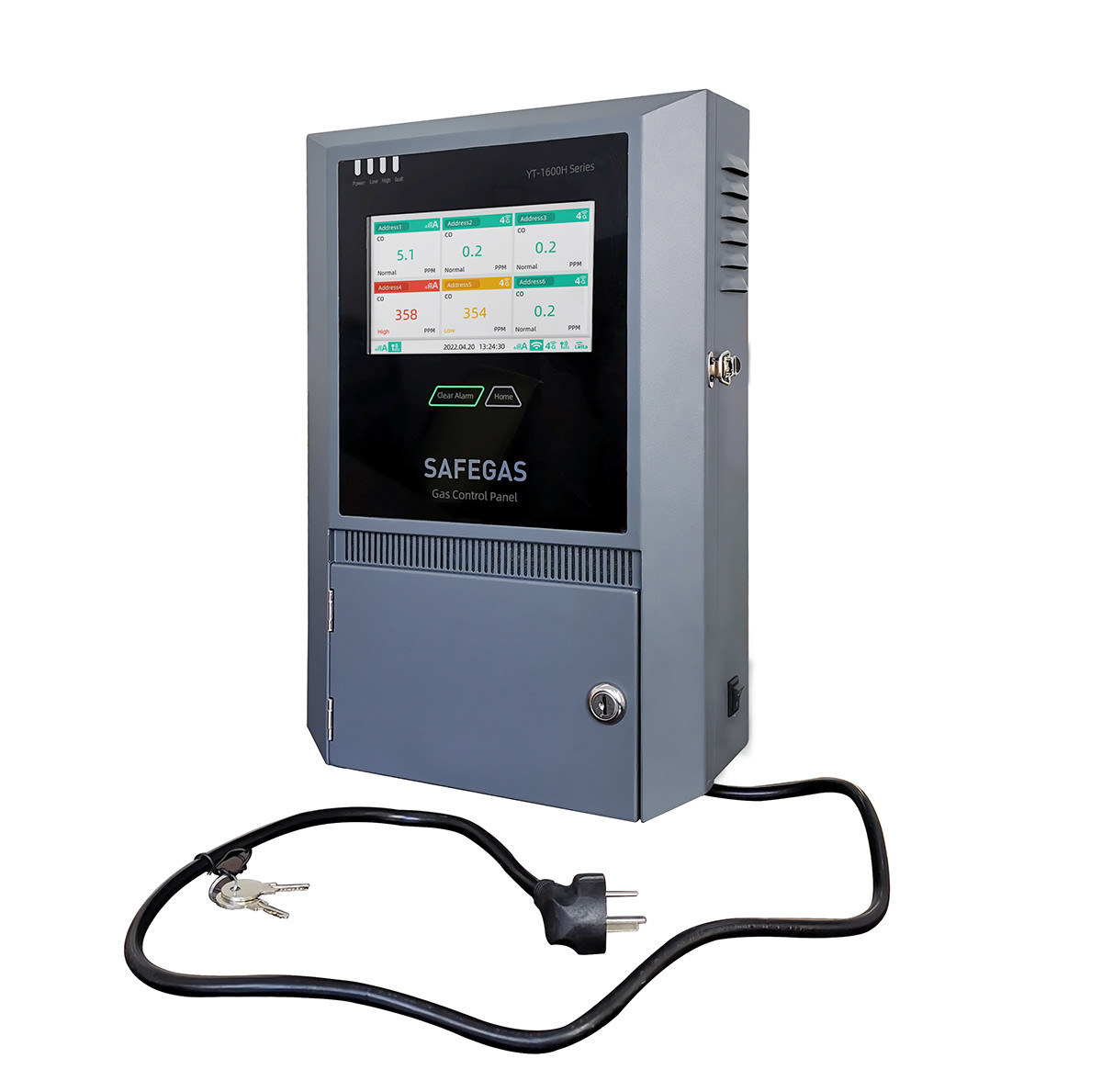

Explosion Proof CL2 Chlorine Gas Control System With 32G Standard SD Card Storage

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-1600H
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-1600H Detected Gas: CL2
Sensor Principle: Elechrochemical(CITY Brand Sensor From UK) Measure Range: 0-10/20/50PPM
Resolution: 0.1PPM, 0.01PPM Install Method: Wall-mounted, Piping Type, Flow-type
Power Supply: 24V DC Gross Weight: 4.7KG
Product Size: 464*280*100MM Warranty: 1 Year
High Light:

CL2 Chlorine Gas Control System

,

Gas Control System Panel Explosion Proof

,

Chlorine Gas Control Panel


Product Description

EX-Proof Certified CL2 Chlorine YT-1600H Gas control system with 32G Standard SD card storage





Company advantage

  • 16 years experience in gas detection
  • More than 20 engineers, professional team
  • Fast delivery time, 1-5 working days
  • Imported IC from USA and world-wide reputation brand sensors
  • International standard certifications, IECEX,ATEX, ISO
  • Rich Experience on all kinds of projects
  • Fast response, good service
  • OEM service without additional cost
  • Competitive price


Product Overview

YT-1600H Gas control panel can connect up to 132 gas detectors, which can realize remote signal transmission; it can control solenoid valves, exhaust fans, motors, water pumps, sound and light alarms, spray systems, machinery and equipment, etc to realize automatic job. It can achieve
the integration of remote monitoring and cloud monitoring, which is convenient for users to conduct real-time and accurate management and grasp the alarm status in time.



Features

  1. Multiple operation modes, convenient for use
  2. Modular design supports flexible custom configuration
  3. Powerful data storage function, convenient for users
  4. to view historical data
  5. Multiple display modes can be switched
  6. Can support wireless transmission (optional)
  7. High quality case

Specification

Gas detected CL2
Detection principle Electrochemical
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range 0-10/20/50/100ppm
Resolution 0.01ppm/0.1ppm
Precision ± 1-3% FS
Signal output 4-20mA, 1-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex dⅡCT6 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg





Explosion Proof CL2 Chlorine Gas Control System With 32G Standard SD Card Storage 0



Factory information



Established in 2010, SHENZHEN YUANTE TECHNOLOGY CO.,LTD, is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector” as the core product, we have completed production line and solutions according to different industries, such as: Oil, Chemical, Medicine, Energy, Environment protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Safegas becomes the influential supplier for gas detection equipment and system in the domestic and overseas market.

Shenzhen YuanTe is gathered by a group of industry experts who are experienced in gas detectors R&D, manufacturing and investment. Every year, 5% of Shenzhen YuanTe’s income will be invested as R&D fund. To select out these new product, new technology and new services which will meet market demand is the most important task for R&D team.

For manufacturing, we have independent production workshop, modern production equipment, aging room, calibration room and professional staff.

For marketing, we implement flexible and competitive price and diversified sales strategy. We penetrate the market by various methods such as OEM, ODM, agent and direct selling, and ensure profit of every partner.

For service, we provide 24h/day service to users, rapid in response, technical guidance in place, convenience in repair and maintenance. At present, detectors are with ATEX CE EMC international certifications, Company has got ISO9001-2015 Quality management system certificate.



FAQ

Q1: Are you factory or trade company?
A1: We are factory.


Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available


Q3: Does your company accept customization?
A3: We do customizing service for customers.


Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.


Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for all kinds of products.



Q6: What is your delivery time?

A6: 1-2 days on receipt of payment.



Q7: How about the calibration?

A7: We will calibrate well with standard COCL2 gas and provide you a calibration certification.
