Portable H2 Combustible Gas Monitor With Pump Suction Fast Response IECEX Safegas

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/CE
Model Number: SKY2000-H2
Minimum Order Quantity: 1 piece
Price: Negotiable

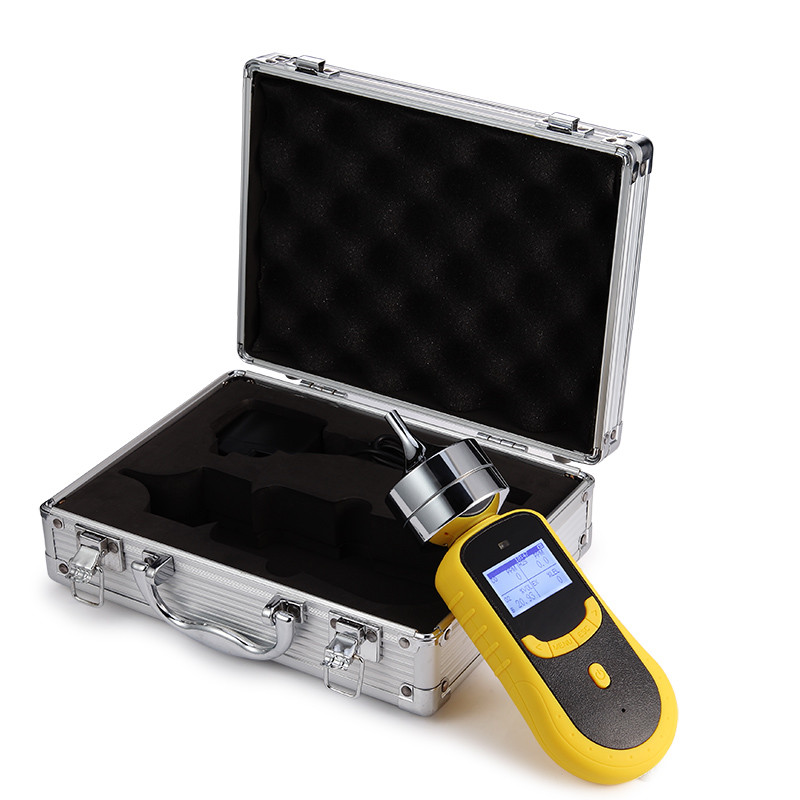

Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 100 pieces/week
Detail Information
Molde Number: SKY2000 Detected Gas: H2
Sensor Type: Catalytic Combustion,electrochemical Measure Range: 0-100%LEL, 0-2000ppm
Resolution: 1%LEL, 1ppm Battery Type: Lithium Polymer
Explosion-Proof: Exia II CT4 Country Of Origin: China
Product Name: SKY-2000 Gas Detector Weight: 300g
Dimensions: 205*75*32mm Alarm Type: Buzzer, Red LED And Alarm Status On The Diplay, Fault Alarm, Pump Abnormal Alarm, Low Battery Alarm
High Light:

Portable Combustible Gas Monitor

,

H2 Combustible Gas Monitor

,

IECEX Combustible Gas Detector


Product Description

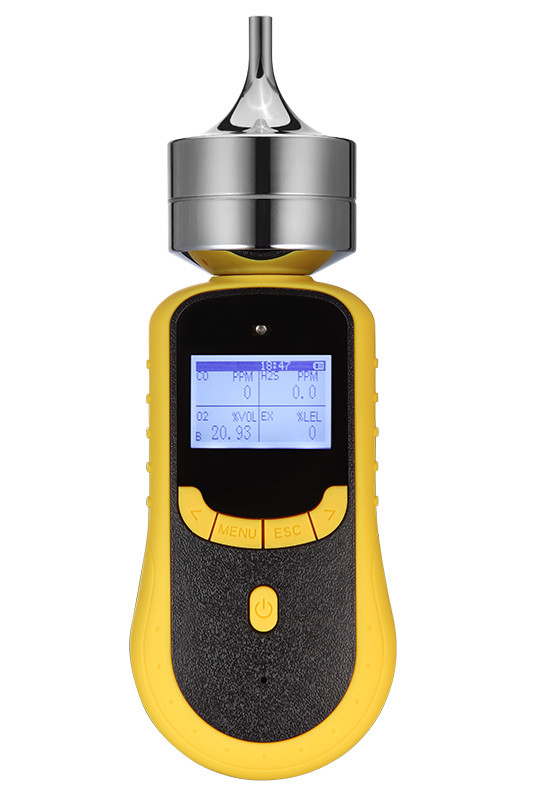

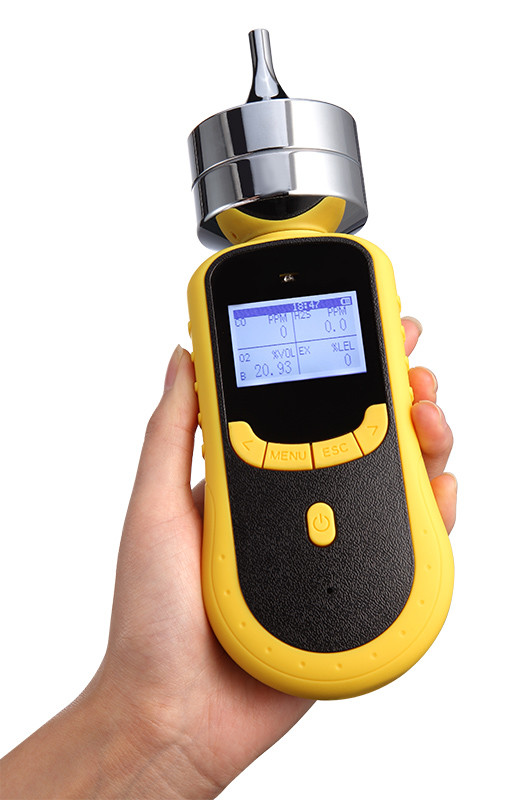

Portable H2 combustible Gas monitor with pump suction fast response IECEX Safegas



SKY2000 series gas detector is a kind of fast response and high accuracy gas measurement device. With internal sampling pump, fast sampling speed and high flow rate, ensuring the response time of the detector. Unique design, small size and easy to carry with. Special high intensity engineering plastics housing, suitable for different kinds of situation and environment.




Specifications



Gas Detected H2
Detection principle Electrochemical
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 0-100%LEL, 0-2000ppm
Resolution 1%LEL,1ppm
Precision 3% F.S.
Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%F.S/year Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃-50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT4 Degree of protection IP66
Alarm mode Sound, light, vibration Operating time

100h

pump off

Dimensions 205*75*32mm Weight 300g




Portable H2 Combustible Gas Monitor With Pump Suction Fast Response IECEX Safegas 0


Product advantages

  • Employing original imported first-class brand sensor. (optional)
  • High speed data transmission by USB, which can download and print data.
  • LCD dot matrix display, the gas type, unit, concentration, local time can be showed on the screen.
  • Support Chinese and English operation, easy to shift.
  • The gas concentration unit PPM and mg/m3 can be shifted quickly. Built-in micro sampling pump, 10 grades of suction are available.
  • Explosion-proof certification, explosion-proof grade: Ex ia IIC T4 Ga

Portable H2 Combustible Gas Monitor With Pump Suction Fast Response IECEX Safegas 1Portable H2 Combustible Gas Monitor With Pump Suction Fast Response IECEX Safegas 2







Factory information



Established in 2010, SHENZHEN YUANTE TECHNOLOGY CO.,LTD, is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector” as the core product, we have completed production line and solutions according to different industries, such as: Oil, Chemical, Medicine, Energy, Environment protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Safegas becomes the influential supplier for gas detection equipment and system in the domestic and overseas market.

Shenzhen YuanTe is gathered by a group of industry experts who are experienced in gas detectors R&D, manufacturing and investment. Every year, 5% of Shenzhen YuanTe’s income will be invested as R&D fund. To select out these new product, new technology and new services which will meet market demand is the most important task for R&D team.

For manufacturing, we have independent production workshop, modern production equipment, aging room, calibration room and professional staff.

For marketing, we implement flexible and competitive price and diversified sales strategy. We penetrate the market by various methods such as OEM, ODM, agent and direct selling, and ensure profit of every partner.

For service, we provide 24h/day service to users, rapid in response, technical guidance in place, convenience in repair and maintenance. At present, detectors are with ATEX CE EMC international certifications, Company has got ISO9001-2015 Quality management system certificate.



Services:
  • 1. One year free warranty.
  • 2. All machines are debugged before shipment.
  • 3. Lifetime technical support and service.
  • 4. 24 hours on line or phone or by email technical support.
  • 5. We offer detailed machine manual and software manual.
  • 6. Our factory make a vivid training CD.
  • 7. Life-long free maintenance.
  • 8. Free training in our factory.
  • Welcome to visit our factory, learn machine face to face.





Other normal gas types (Gases are not listed can be customized):

Flammable gas(EX)
Oxygen(O2)
Carbon monoxide(CO)
Hydrogen (H2)
Methane (CH4)
Carbon Dioxide(CO2)
Chlorine dioxide(CLO2)
Ozone(O3)
Ammonia(NH3)
Nitrogen(N2)
