Explosion Proof Bus Mode Gas Alarm Controller With 32G Standard SD Card Storage

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-1600H
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-1600H Detected Gas: Multiple/Single Gas
Sensor Principle: Elechrochemical(CITY Brand Sensor From UK) Measure Range: 0-10/20/50PPM
Resolution: 0.1PPM, 0.01PPM Install Method: Wall-mounted, Piping Type, Flow-type
Power Supply: 24V DC Gross Weight: 4.7KG
Product Size: 464*280*100MM Warranty: 1 Year
High Light:

Bus Mode Gas Alarm Controller

,

32G SD Card Gas Alarm Controller

,

Explosion Proof Gas Detector Controller


Product Description







Explosionproof Certified Bus Mode Gas Alarm Controller With 32G Standard SD Card Storage





Product Overview



The YT-1600H gas control panel can connect up to 132 gas detectors, enabling remote signal transmission; It can control electromagnetic valves, exhaust fans, motors, water pumps, sound and light alarms, sprinkler systems, mechanical equipment, etc. to achieve automated operations. It can achieveThe combination of remote monitoring and cloud monitoring facilitates users to conduct real-time and accurate management, and timely grasp the alarm status.



Product Advantage


Multiple operation modes, convenient for us

7-inch high-definition color screen display, capable of simultaneously supporting 2 key touch operations, as well as key operations



Modular design supports flexible custom configuration

·Standard RS485 signal input and output, capable of connecting up to 100 gas detectors
·Can support 4~20mA 8~32 signal acquisition inputs, and can connect up to 32 gas detectors (optional)
·Can support 16 channels of 4-20mA signal output (optional)
·Supports up to 6 relays, standard 4 relays, optional 2 relays
·Controllers can communicate with each other (optional)



Powerful data storage function, convenient for users to view historical data

·Standard configuration includes 1000 sets of alarm event and non event records. Users can view the standard SD card storage function on the controller, which can store 100000 pieces and can be customized with larger capacity
·The storage interval can be arbitrarily set, and time, real-time concentration values, alarm information, etc. can be recorded.
·Support SD card and USB flash drive for one click data export, making it easy for users to view or delete records





Specification



Gas detected CL2
Detection principle Electrochemical
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range 0-10/20/50/100ppm
Resolution 0.01ppm/0.1ppm
Precision ± 1-3% FS
Signal output 4-20mA, 1-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex dⅡCT6 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg

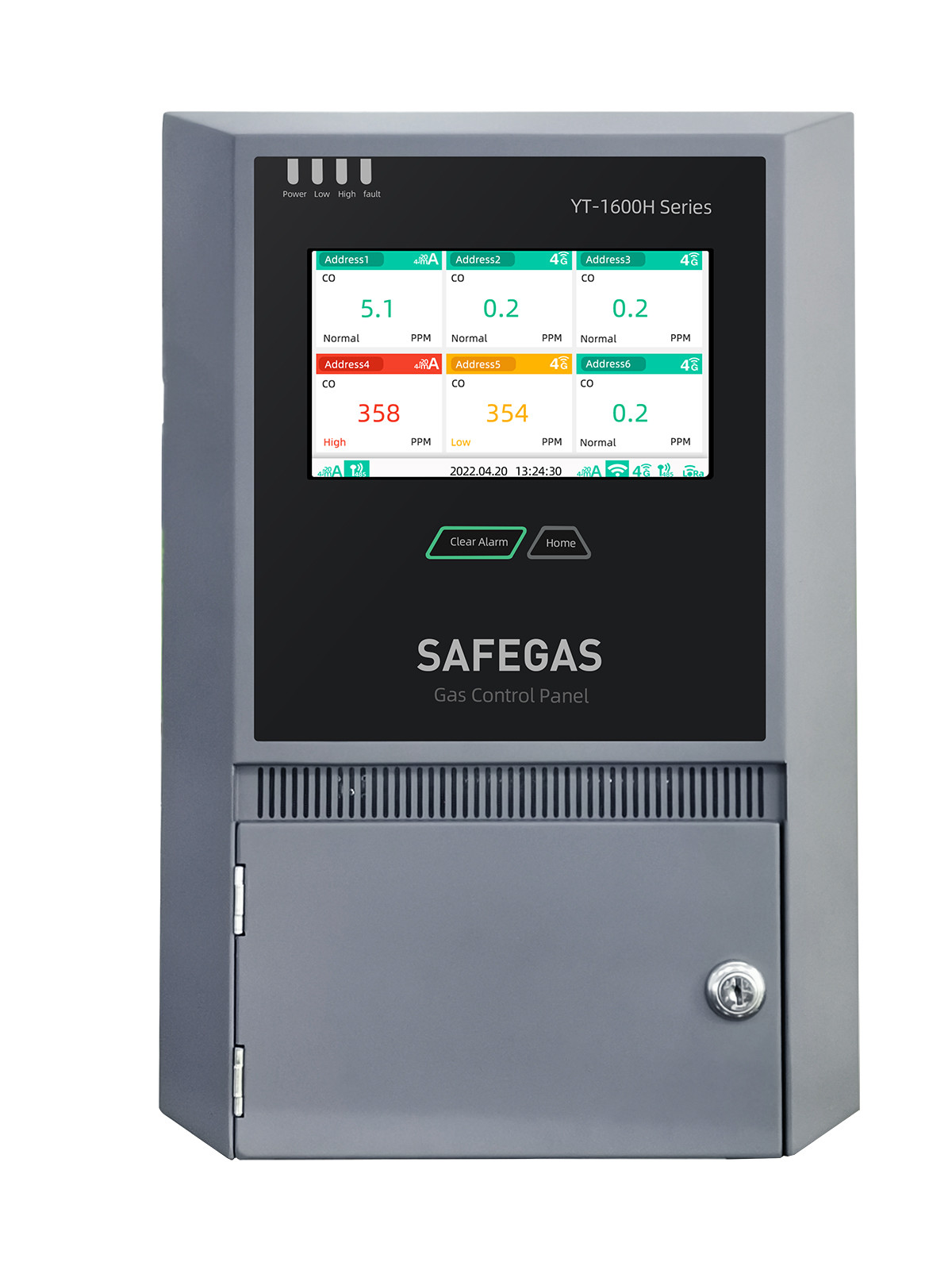

Explosion Proof Bus Mode Gas Alarm Controller With 32G Standard SD Card Storage 0

Detail

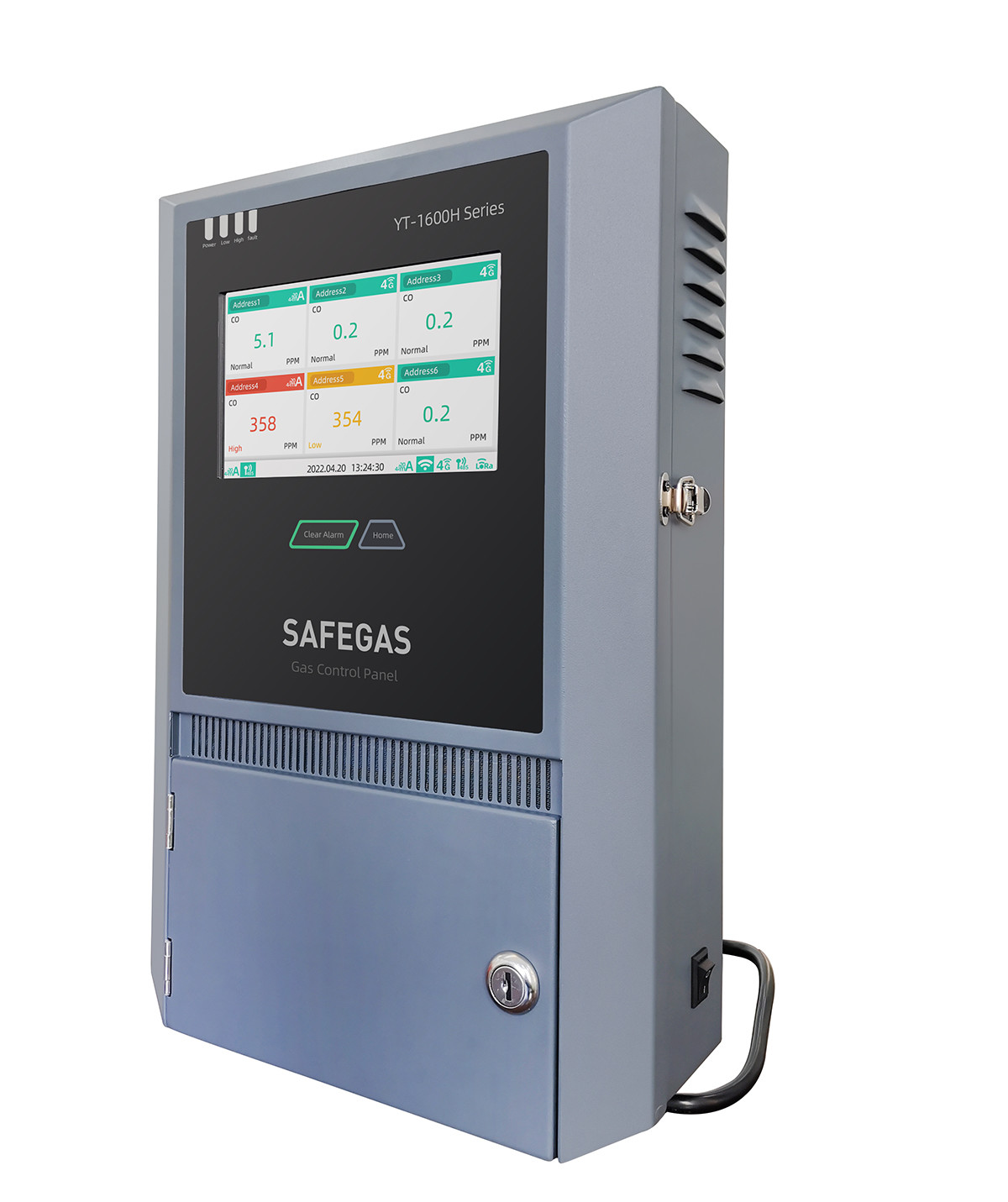

Explosion Proof Bus Mode Gas Alarm Controller With 32G Standard SD Card Storage 1

Explosion Proof Bus Mode Gas Alarm Controller With 32G Standard SD Card Storage 2



Factory information



Shenzhen Yuante Technology Co., Ltd. was established in 2010 and is a company specializing in the design, production, and sales of high-end gas detection equipment and systems. It has a history of 16 years. We take "gas detectors" as our core product, targeting different industries such as petroleum, chemical, pharmaceutical, energy, environmental protection, electronics, municipal, agriculture and forestry, home appliances, etc., and have complete production lines and solutions. After nearly 10 years of rapid development, Safegas has become an influential supplier of gas detection equipment and systems both domestically and internationally.
Shenzhen Yuante is a group of industry experts with rich experience in the research and development, manufacturing, and investment of gas detectors. Shenzhen Yuante invests 5% of its annual revenue as a research and development fund. Selecting these new products, technologies, and services that meet market demands is the most important task for the R&D team.
In terms of manufacturing, we have independent production workshops, modern production equipment, aging rooms, calibration rooms, and professional employees.
In terms of marketing, we implement flexible and competitive pricing and diversified sales strategies. We penetrate the market through various methods such as OEM, ODM, agency, and direct sales to ensure the profit of every partner.
In terms of service, we provide users with 24/7 service, quick response, adequate technical guidance, and convenient maintenance. At present, the detector has passed ATEX CE EMC international certification, and the company has passed ISO9001-2015 quality management system certification.



FAQ
Q1:Are you a factory or a trading company?
We are a factory.


Q2: What is the payment method?
Credit card, wire transfer, Western Union remittance are all acceptable


Q3: Does your company accept customization?
We provide customized services for customers.


Q4: What is the shipping situation?
We will choose the appropriate transportation method based on the weight of the goods, usually arranging air freight, such as DHL, FEDEX, TNT, or UPS.


Q5:How is the after-sales service?
 Various products have a warranty of 12 or 24 months.


Q6:What is your delivery time?
1-2 days after receiving the payment.


Q7: How is the correction situation?
We will calibrate using standard CO CL2 gas and provide you with a calibration certificate.
