Lab Equipment Combustion Gas Analyzer Chemistry Syngas Analyzer CO CO2 O2 CH4 NOX 100%VOL
Product overview

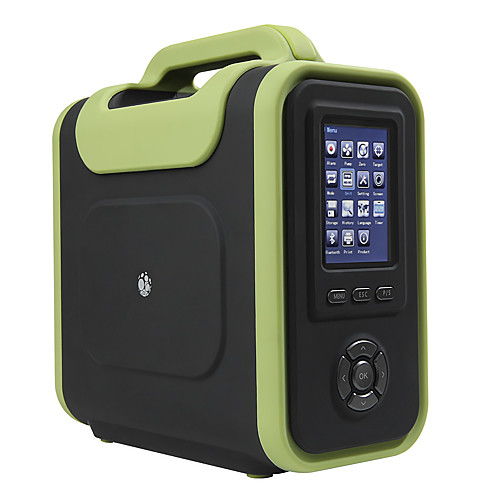

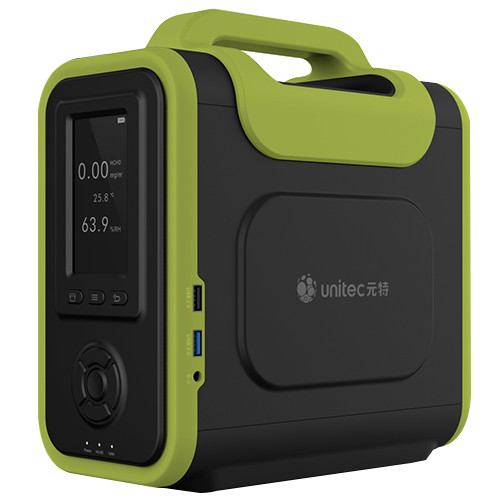

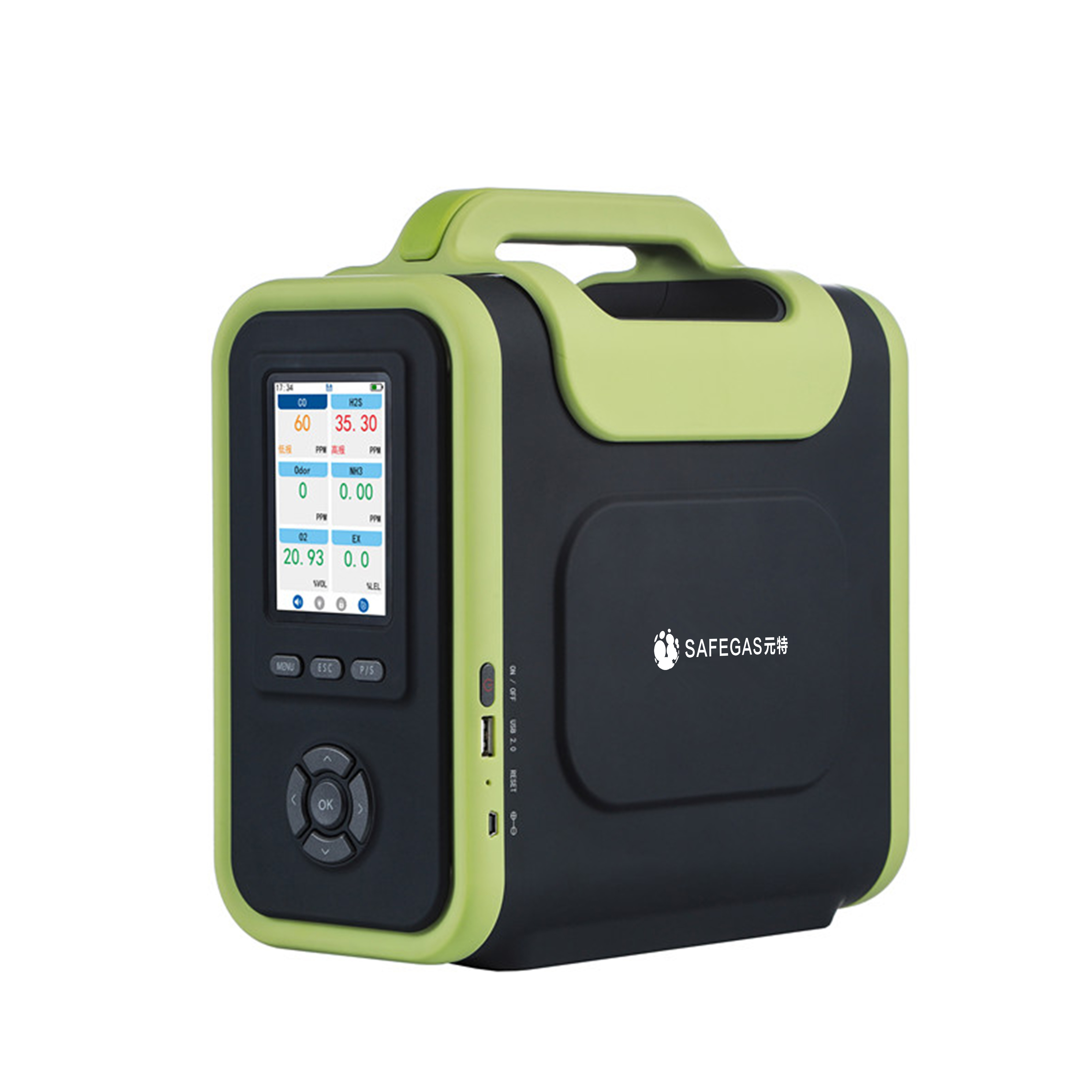

SKY8000 series gas analyzer is a data collector which can quickly acquire and analyze gas concentration components in factory, scientific research, university and complex working environment. There are 4 different version to su pport different ap plications including SKY8000-M gas analyzer to monitor gases in ambient environment; SKY8000-AQ air quality gas analyzer to monitor gases, particle counter, dew point, temperature and humidity; SKY8000-OU odor gas analyzer to monitor H2S, NH3,odor ;SKY8000-EM emission gas analyzer to monitor high gas concentration gases in flue gas environment.
Specification
| Sensors |
Professional Flue Sensor, Electrochemistry, PID, IR, Catalytic combustion, according to sensors. |
| Measure range |
0-1000ppm, 0-2000ppm, 0-5000ppm, 0-10000ppm, 0-50%VOL, 0-100%VOL (Measure range is optional and customized) |
| Resolution |
1ppm, 0.01%VOL, according to measure ranges and sensors. |
Display |
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm |
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage |
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval. |
| Data transmission and download |
RS232,RS485 signal output, USB interface data transmission, with the upper computer software, can download storage, analyze and print data |
| Print function(Optional) |
Optional with internal portable printer or external Bluetooth printer |
| Print content(Optional) |
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
Charger |
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer ) |
| Language |
Chinese/English |
| Wireless network (optional) |
Bluetooth, Zigbee |
| Network frequency |
2.4G high frequency. |
| wireless transmission distance |
Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m. |
Features
Accurate and reliable
- Using world top brand sensors, the test results are more reliable and can be certified by third party authorities
- Multiple industrial pump gas sampling, ten grades of pumping flow rate for selection.
- Gas detection flow can be customized according to different testing environments. Each module is equipped with multi-layer filtering device, which can filter oil, water, dust and other impurities efficiently.
Multi-display mode
- Single curve, multi-curve, data and other gas concentration display mode are switchable
- Various gas concentration units can be shifted freely
Comprehensive functions
- Modular internal structure, supporting 1-18 gas detection requirements
- Simple and quick screenshot settings
- Monitor the temperature, humidity, pressure at the same time(Optional)
- Bluetooth, ZIGBEE, WIFI, GPRS and other wireless communication modes are selectable(Optional)
- Analyzer can be equipped with internal printer or external Bluetooth printer, to realize the mobile print function(Optional)
- High temperature, high humidity environment measurement(Optional)
Data logging
- Large capacity quick storage function, storage space can be customized
- An independent SD memory card, historical tested data can be viewed and deleted
Mobile recharging and long operation time
- High capacity of lithium polymer rechargeable battery, super long service life and standby time
- Mini-USB charging interface design with common data cable and mobile power can be charged anytime, anywhere
High quality material
- 3.5-inch hd LCD screen with resolution 320* 480, beautiful and useful menu interface
- Selected aviation wear-resisting material, suitable for various kind of industry environment
Application
- Confined space, research and high standard test environment,
- Complex environment of multiple gases
Accessories & Configuration List
Standard Accessories
- SKY8000 Syngas Analyzer
- Aluminum suitcase
- A charging adapter
- User Manual
- Qualification/Calibration certificate
- 100°C high temperature probe
- Filter
- USB cable
Optional Accessories
- Probe: 600°C, 1200°C imported from Germany
- Bluetooth printer
FAQ
1. Q: What about after-sale service?
A: 12 months warranty for all kinds of products; we also provide life-long paid service.
2. Q: What about lead time?
A: Usually we offer 3-7 working days after order confirmed and payment received.
3. Q: What about the Shipping method?
A: Please kindly note that our product are on EXW term, and need caluclate the freight based on the quantity. Once you have the order, please contact us to check the discounted freight.
We choose the DHL, UPS, FedEx express normally. (Also you can arrange the express to pick up the parcel from our factory)
4. Q: Does your company accept customization?
A: Contact us first. As a factory, we can do customizing service on the condition of Quantity.
