| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Model Number: | YT-95H |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-95H | Detected Gas: | Odor |
|---|---|---|---|
| Sensor Principle: | Electrochemistry | Measure Range: | 0-100/999 |
| Install Method: | Wall-mounted, Piping Type, Flow-type | Power Supply: | 24V DC |
| Gross Weight: | 3 KG | Product Size: | 180*150*90mm |
| Warranty: | 1 Year | ||
| High Light: | Electrochemistry Fixed Toxic Gas Detector,Odor Intensity Toxic Gas Detector,Electrochemistry Gas Odor Detector |
||
Electrochemistry Fixed Toxic Gas Detector For Odor Intensity Detection
Fixed Toxic Gas Detector 0-100/999 Range For Odor Intensity Detection
Product Overview
The YT-95H series gas detector (with alarm light) is a wall mounted gas detector that continuously monitors gas concentrations in different occasions or pipelines for 24 hours. Adopting the world's first brand sensors, advanced micro processing technology, with data display and high/low alarm functions, fast response speed, high accuracy, and good stability. Adopting 24V DC power supply, with 4-20mA, RS485, and relay signal output. Explosion proof, suitable for various occasions
Product Advantages

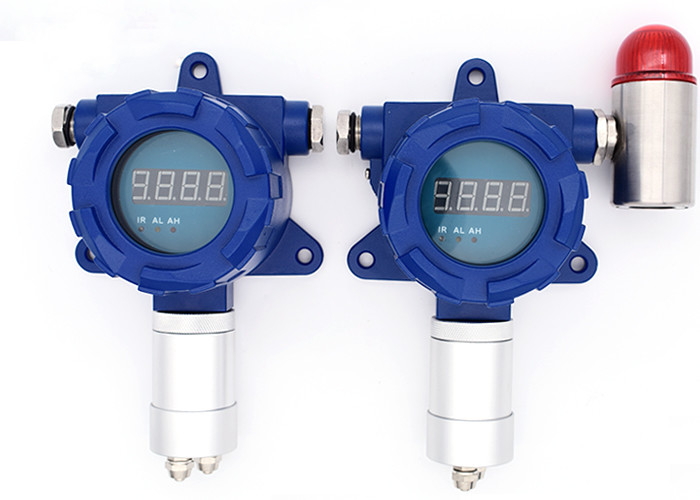

Without alarm With alarm
Specification
| Gas detected | Odor | ||
| Detection principle | Electrochemistry/PID | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-100/999 | ||
| Other gases | H2S,NH3,VOC etc. | ||
| Precision | ± 2-5% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display | High-light nixie tube display |
| Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light | Operating time | 24H |
| Dimensions | 180*150*90mm | Weight | ≤2kg |
Work with control together
More Application
