| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Model Number: | YT-98H |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, Credit Card |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-98H | Detected Gas: | To Be Specified |
|---|---|---|---|
| Sensor Principle: | Electrochemical, Catalytic Combustion, Infrared, Etc | Measure Range: | To Be Specified |
| Resolution: | To Be Specified | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 5 KG |
| Product Size: | 320*210*110mm | Warranty: | 12 Month |
| High Light: | Wall Mounted Toxic Gas Meter,Pumping Sampling Toxic Gas Meter,Multi Gas Detector IP66 |
||

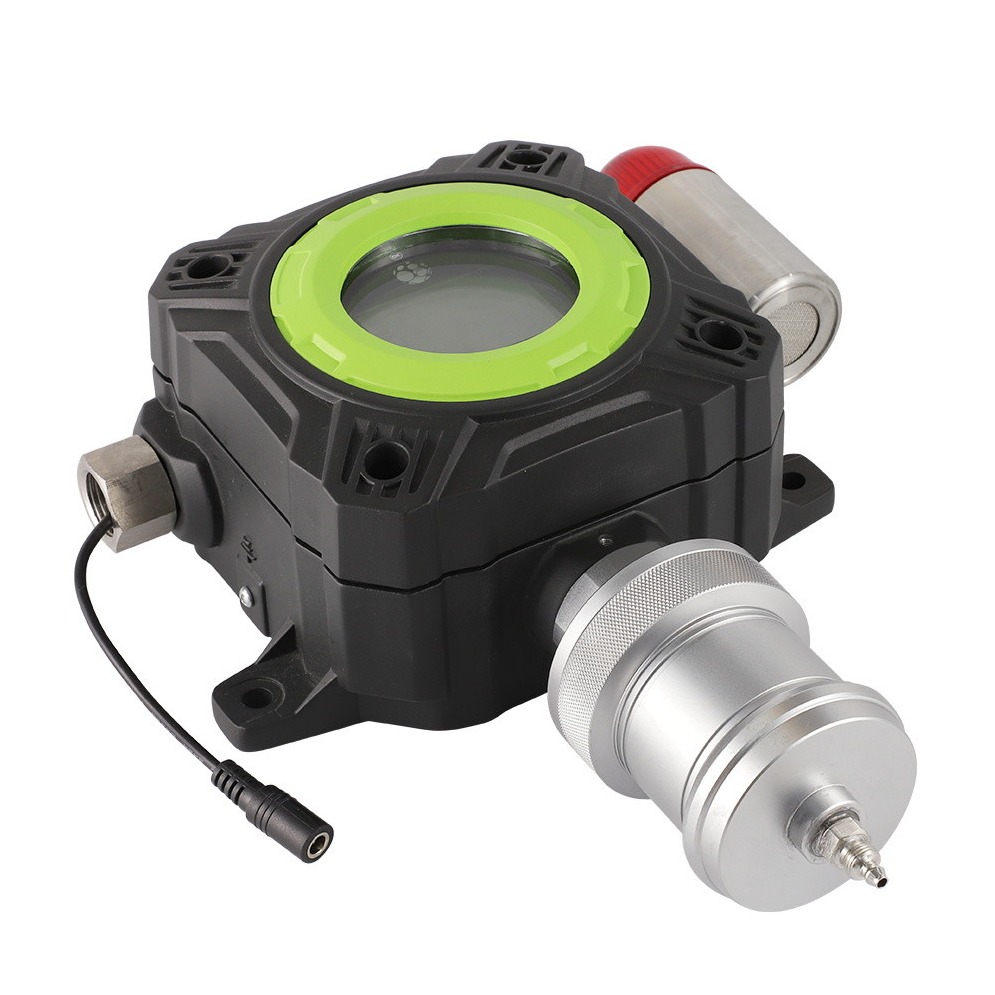

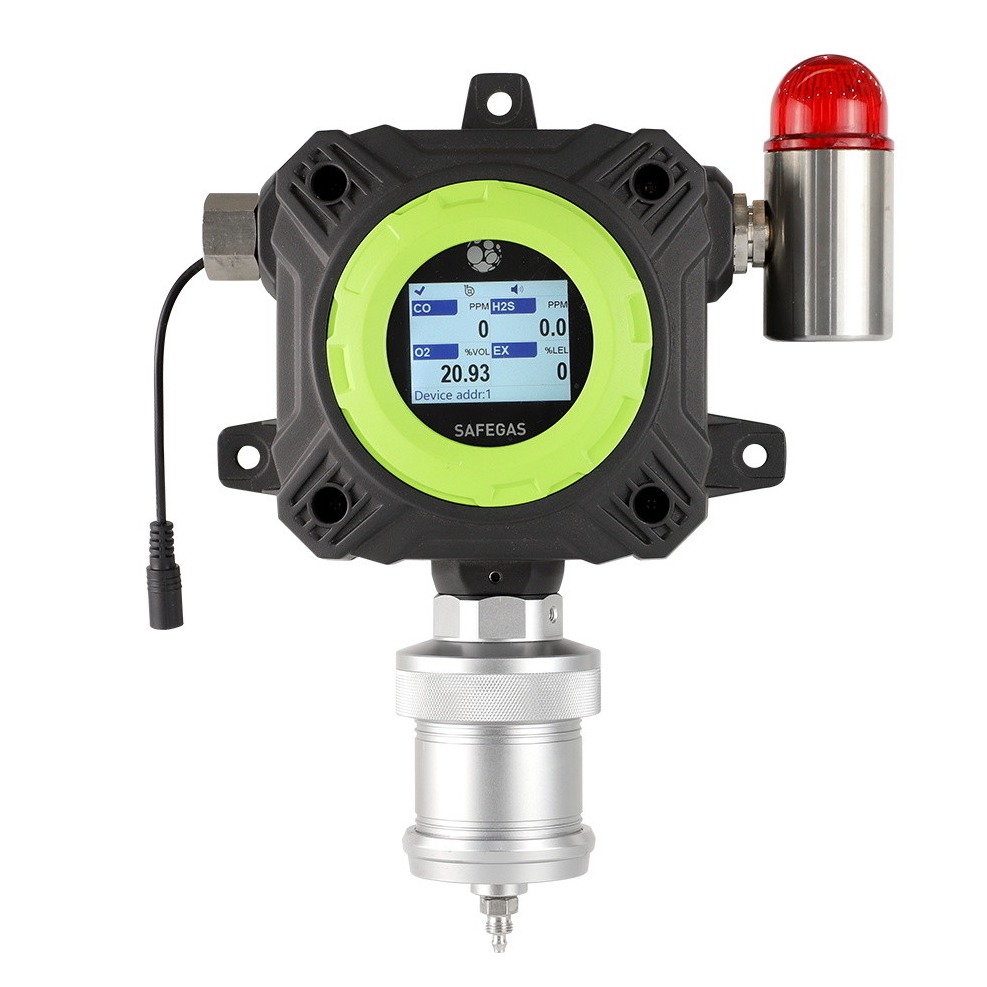

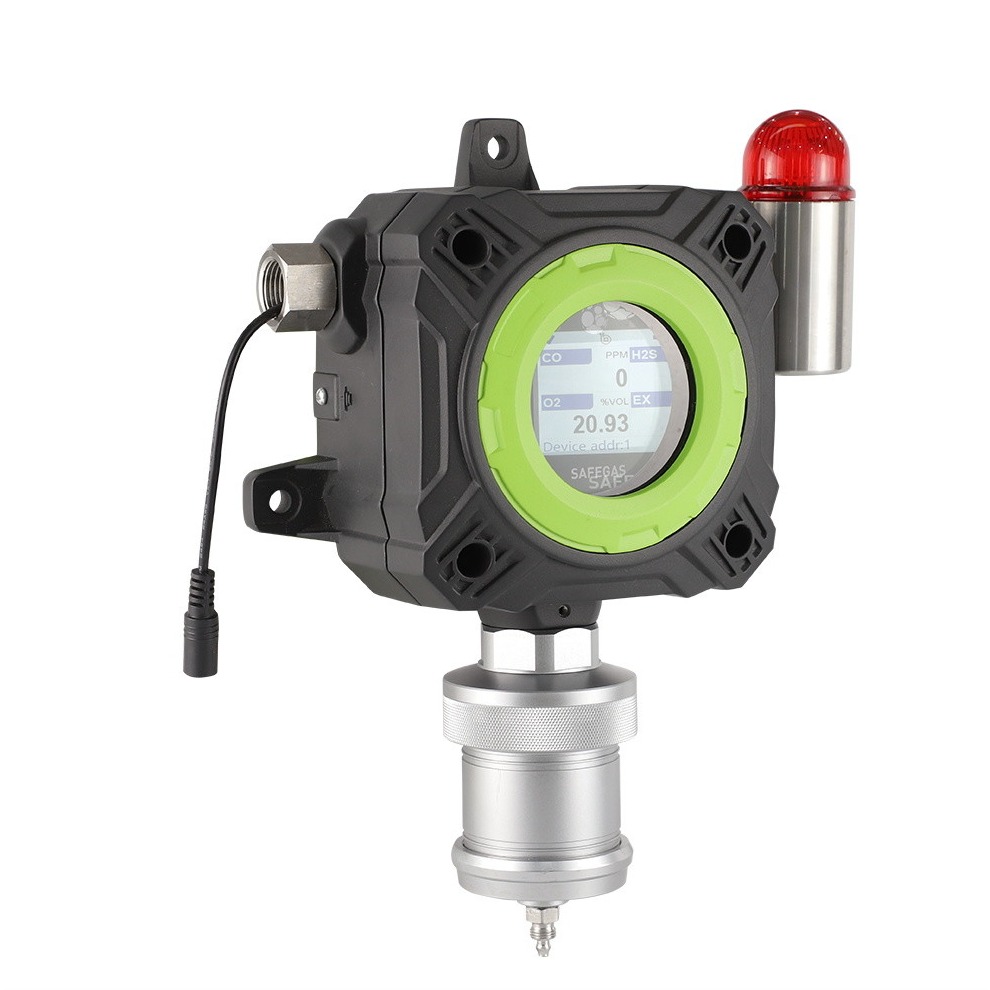

IP66 24V DC Wall Mouted Toxic Gas Meter With Pumping Sampling
Why Choose Us?
1.All inquiries will be replied within 24 hours.
2. All products must be inspected and packaged before shipment, and a certificate of conformity must be issued.
3. All sensors are imported from Europe with first-class brand sensors, which have faster response speed and higher accuracy
4. We can provide OEM services for fast delivery. The goods can be shipped within 3 days
5. We will provide technical support, and our engineers will help solve the problems you encounter.
6. We are a manufacturer with our own factory, specializing in gas detection for about 16 years. Welcome to visit our factory.
7. For all customers, we guarantee a one-year warranty and lifelong maintenance.
Product Overview
YT-98H is a series of built-in pump type gas detectors that can continuously monitor various gas concentrations in the environment and pipelines 24 hours a day, display concentrations on site and alarm, output standard signals, and remotely transmit data. Its built-in constant flow and powerful suction pump make its detection accuracy higher, and its response time is 2.5 times faster than the Diffusion model on the market. When the target gas is lighter than air, it does not need to be installed at a height and can quickly obtain detection results.
Product Functions
1.YT-98H is a series of built-in pump type gas detectors that can continuously monitor various gas concentrations in the environment and pipelines 24 hours a day, display concentrations on site and alarm, output standard signals, and remotely transmit data. 1. Standard 4-20mA current signal, RS485 digital signal, 1 set of relay signal output, optional 2 sets of relay signals
2. The infrared remote control function and button function are a dual approach
3. Optional with a large capacity 8G SD card storage function, the stored data can be saved for more than a year
4. Optional wireless transmission function, providing SMS alarm function, can upload data to EPA platform or other platforms, and the transmission signal is not limited by distance. Its built-in constant flow rate and powerful suction pump make its detection accuracy higher, and the response time is 2.5 times faster than the diffusion type in the market. When the target gas is lighter than air, it does not need to be installed at a height and can quickly obtain detection results.
Specification
| Gas detected | To be specified | ||
| Detection principle | Electrochemical, Catalytic combustion, Infrared, etc | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | To be specified | ||
| Resolution | To be specified | ||
| Precision | ± 2-5% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display |
2.4 inch color display, resolution 320*240
|
|
Wireless output (optional):
|
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
|
Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light |
Language:
|
Chinese / English
|
| Dimensions |
(H x W x D) 320*210*110mm
|
Weight | ≤2kg |
