| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Model Number: | YT-95H-A |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-95H-HCL | Detected Gas: | HCL |
|---|---|---|---|
| Sensor Principle: | Electrochemical | Measure Range: | 0-10/20/50/100PPM (to Be Specialized) |
| Resolution: | To Be Specialized | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 3 KG |
| Product Size: | 180*150*90mm | Warranty: | 12 Month |
| High Light: | Diffusion Type Toxic Gas Detector,HCL Gas Leakage Detector,Harmful Gas Leakage Detector |
||

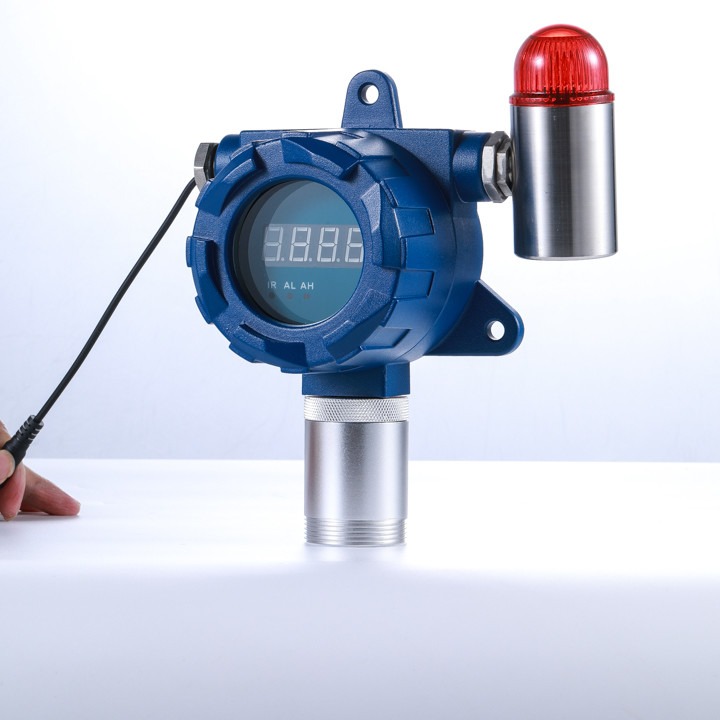

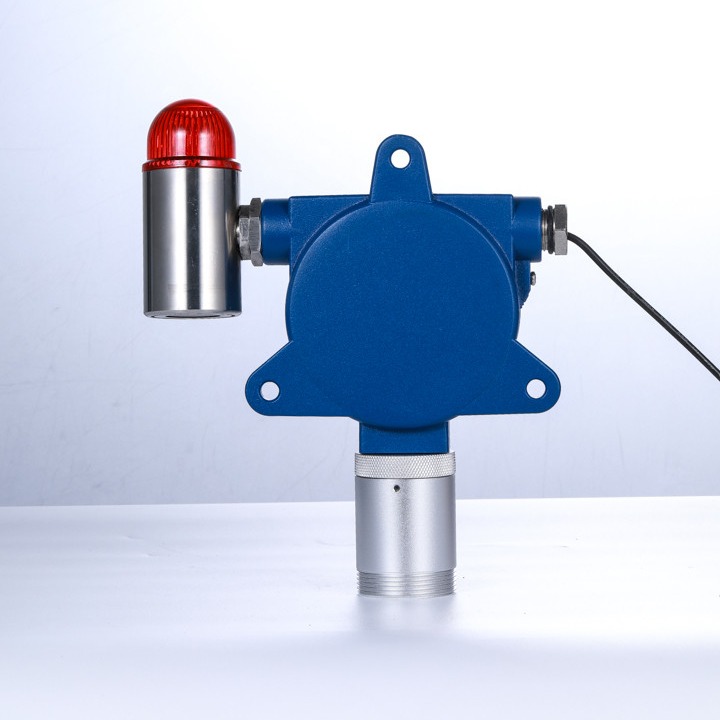

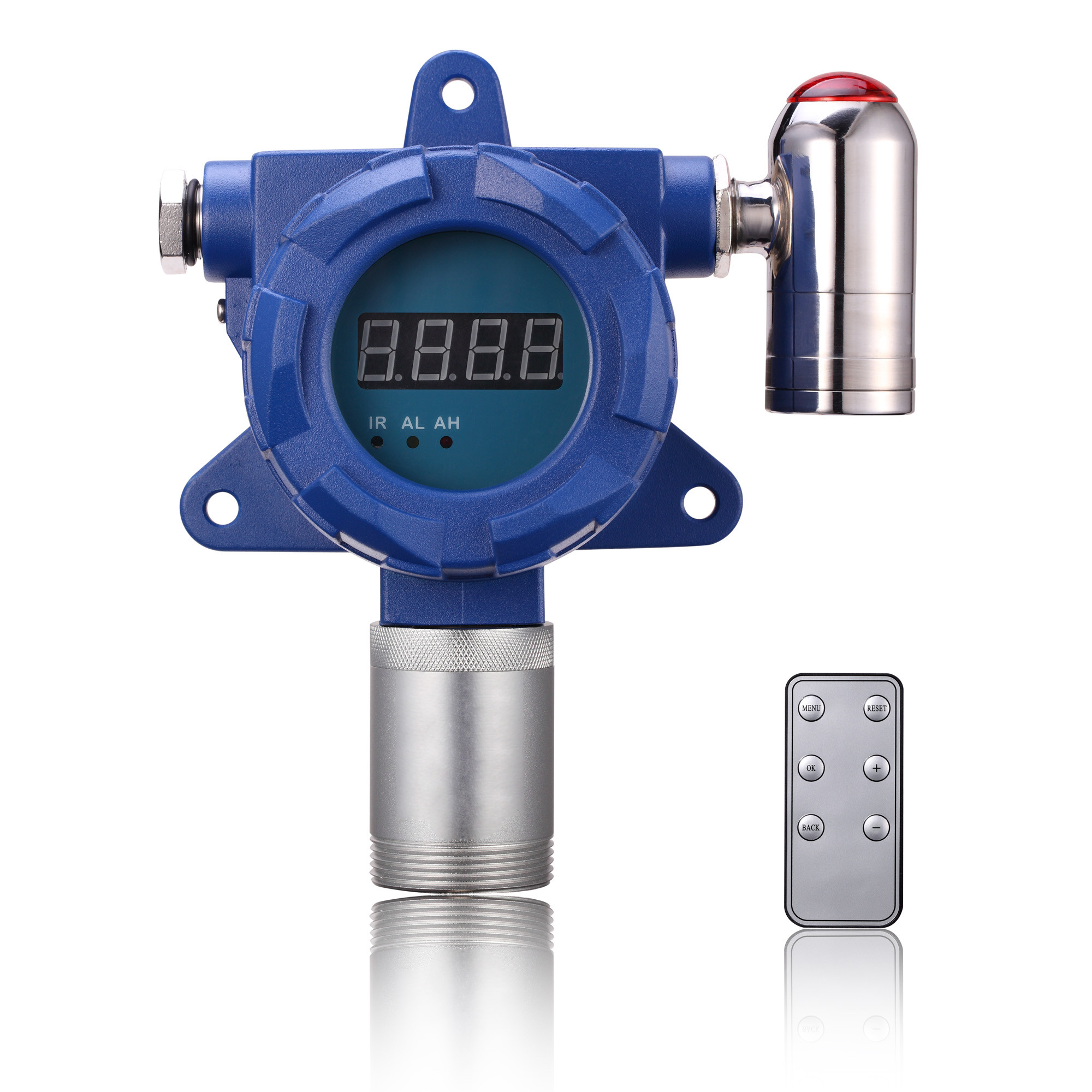

Healthy Protection Fixed Diffusion Type Gas Leakage Detector For Toxic Harmful Gases
Product Overview
The YT-95H series gas detector is a 24-hour continuous wall mounted gas detector that monitors gas concentrations in different occasions or pipelines. Adopting the world's first brand sensors, advanced micro processing technology, with data display and high/low alarm functions, fast response speed, high accuracy, and good stability. Adopting 24V DC power supply, with 4-20mA, RS485, and relay signal output. Explosion proof, suitable for various occasions
Features
Working Voltage:12-36V DC
Two-stage alarm with sound and light, alarm point is settable.
Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.
Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
Case:die-cast aluminum + stainless steel (alarm light)
With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
Product Feature
Specification
| Gas detected | Toxic and harmful gased | ||
| Detection principle | Electrochemical | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-10/20/50/100PPM etc (To be specialized) | ||
| Resolution | To be specialized | ||
| Precision | ± 2-5% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display | High-light nixie tube display |
| Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light | Operating time | 24H |
| Dimensions | 180*150*90mm | Weight | ≤2kg |
Work with control together
Product advantage
