| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX,CE,CPA |
| Model Number: | SG100 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 100 pieces/day |
| Model Number: | SG100 | Sensor Principle: | Electrochemistry, PID, Infrared, Catalytic Combustion |
|---|---|---|---|
| Measure Range: | Customized | Resolution: | Customized |
| Sampling Method: | Diffusion | Alarm Type: | Sound, Light, Vibration |
| Package: | Aluminum Suitcase | Gross Weight: | 1 KG |
| Explosion-Proof: | Ex Db IIC T6 GB/E X Db Ia IIC T6 G B/Ex Da Db Ia IIC T6 GB | Size: | 157.8*128.8*69.6mm |
| High Light: | High Protection Grade VOC Gas Detector,Fixed VOC Gas Detector,IECEx VOC Gas Sensor |
||
High Protection Grade IP66/IP67 Fixed VOC Gas Detector With IECEx Atex Certifide
Product overview
SG100 gas detector is an intelligent hot-pluggable fixed gas detector, which is easily for maintenance after installation and continuous monitoring of toxic gases, oxygen, flammable gases. With IECEx, ATEX certifciates, explosion level reaches Ex db IIC T6 GB/E x db ia IIC T6 G B/Ex da db ia IIC T6 GB. Having a 3-wire 4 to 20 mA analog output with relays, it also offers HART, RS485 Modbus protocol, making it compatible with most control systems. Adopt magnetic wand design, it’s safe and easy to do menu navigation in explosion areas.
Why Choose us?
High accuracy & Reliable
Specialized in gas detection for 15 years, using world first brand sensors, high precision, the detection result is approved by the third testing organization
Online monitoring
24h continuously monitoring, data will real-time display
Modular gas chamber for maintenance simply and conveniently
Modular air chamber structure, no need to disassemble the whole machine, only need to replace the air chamber part
No need to return to the factory calibration, the real implementation of plug and play
Two-key magnetic bar design, no need to open the cover, to achieve on-site maintenance and operation of the detector in any explosion-proof area
Class ia intrinsic safety explosion-proof circuit design, safe and reliable
At the same time, the instrument has obtained international IECEx, ATEX and China explosion-proof three certifications
Explosion-proof class up to Ex db IIC T6 Gb /Ex db ia IIC T6 Gb /Ex da db ia IIC T6 Gb
The protection level reaches IP66/IP67
Data transmission diversity
Standard 4-20mA current signal, RS485 digital signal, 1 set of relay signal output
Optional 2 groups of relay signals, voltage 1 ~ 5V, standard Hart

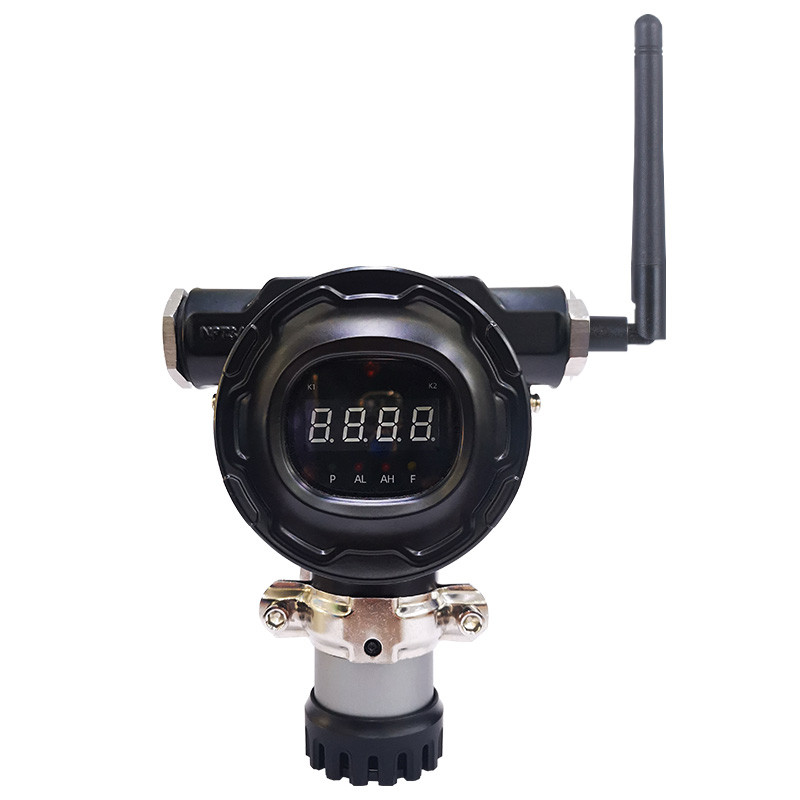

Optional LORA, 4G and other wireless transmission methods (optional)

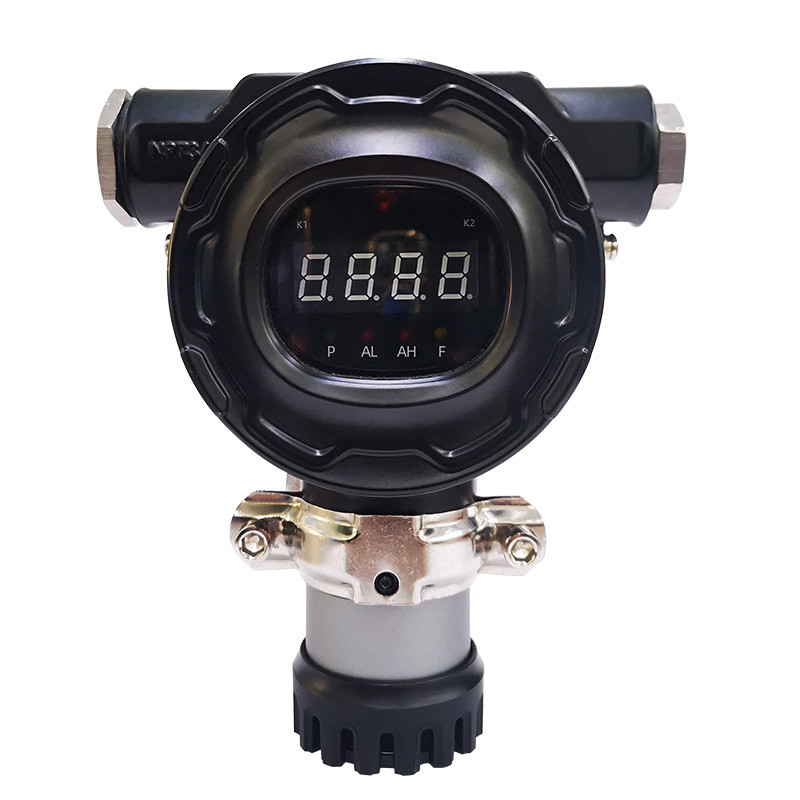

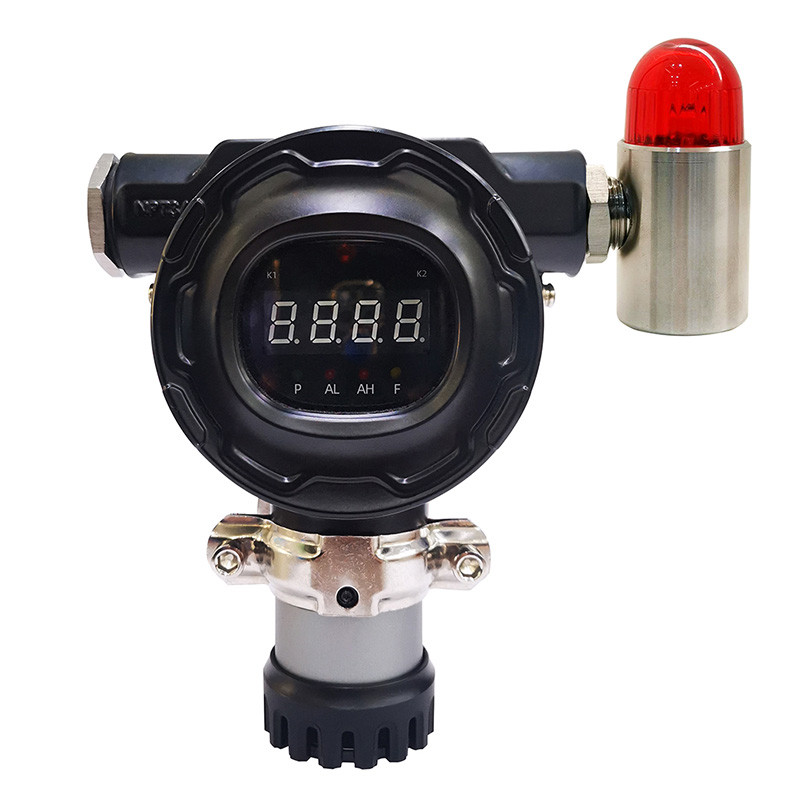

Picture details
Specification
| Detected Gas | VOC |
| Measure Range | Customized |
| Install Method | Wall-mounted, piping type, flow-type |
| Output signal | 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
| Precision | ≤±1%F.S. (to be specialized) |
| Zero shift | ≤±1%(F.S./year) |
| Display | 4 digits Nixie tube display. |
| Connection mode | G3/4 external thread explosion-proof flexible pipe |
| Thread Size | Standard M20*1.5, 3/4NPT |
| Temperature | –20℃～50℃ (electrochemistry principle), –40℃～70℃ (catalytic combustion principle) |
| Humidity | 10-95%RH (non-condensing) |
| Explosion-Proof | Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Degree of protection | IP66/IP67 |
| Material | Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-24V DC |
| Dimensions | 158×129×70mm |
| Weight | ≤1kg |
| Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty | 12 months |
Industry Application
Petrochemical & Chemical Industry, Municipal Engineering & Utilities, Agricultural & Environmental Protection, Electronic, Food & Pharmaceutical Industry, Other Industries
