| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX，CE，IECEX, EMC |
| Model Number: | Micmeta |
| Minimum Order Quantity: | 1 Pc |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 100 pieces/week |
| Model Number: | Micmeta | Sampling Method: | Diffusion |
|---|---|---|---|
| Testing Principle: | Catalytic Combustion And Electrochemistry | Measure Range: | Customized |
| Resolution: | Customized | Alarm Type: | Sound, Light, Vibration |
| Color: | Red And Black | Size: | 113*60*32 |
| Net Weight: | 200g | ||
| High Light: | Toxic Combustible Multi Gas Detector,ATEX Portable Multi Gas Detector,Toxic Combustible Gas Monitor |
||
Portable Multi Gas Detector Toxic & Combustible Gas Monitor With TWA STEL MAX MIN Display
Product overview
MICMETA-O3 gas detector is compact, light weight, small size, easy to use, no expertise required gas detectors. It’s IECEx, ATEX, CNEX certificated and the explosion proof grade is Ex ia I Ma, Ex ia IIC T4 Ga which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades ⅡA , ⅡB , and ⅡC and temperature group T1~T4 as well as coal mines. Moreover, it’s the only multi-gas detector with a rating of IP68 for unmatched water protection. So customer can be confident it will stand up to challenging conditions like harsh weather.
Product specification
| Sampling method | Diffusion |
| Gas type | Toxic and combustible gases |
| Measure range | Customized |
| Resolution | Customized |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |

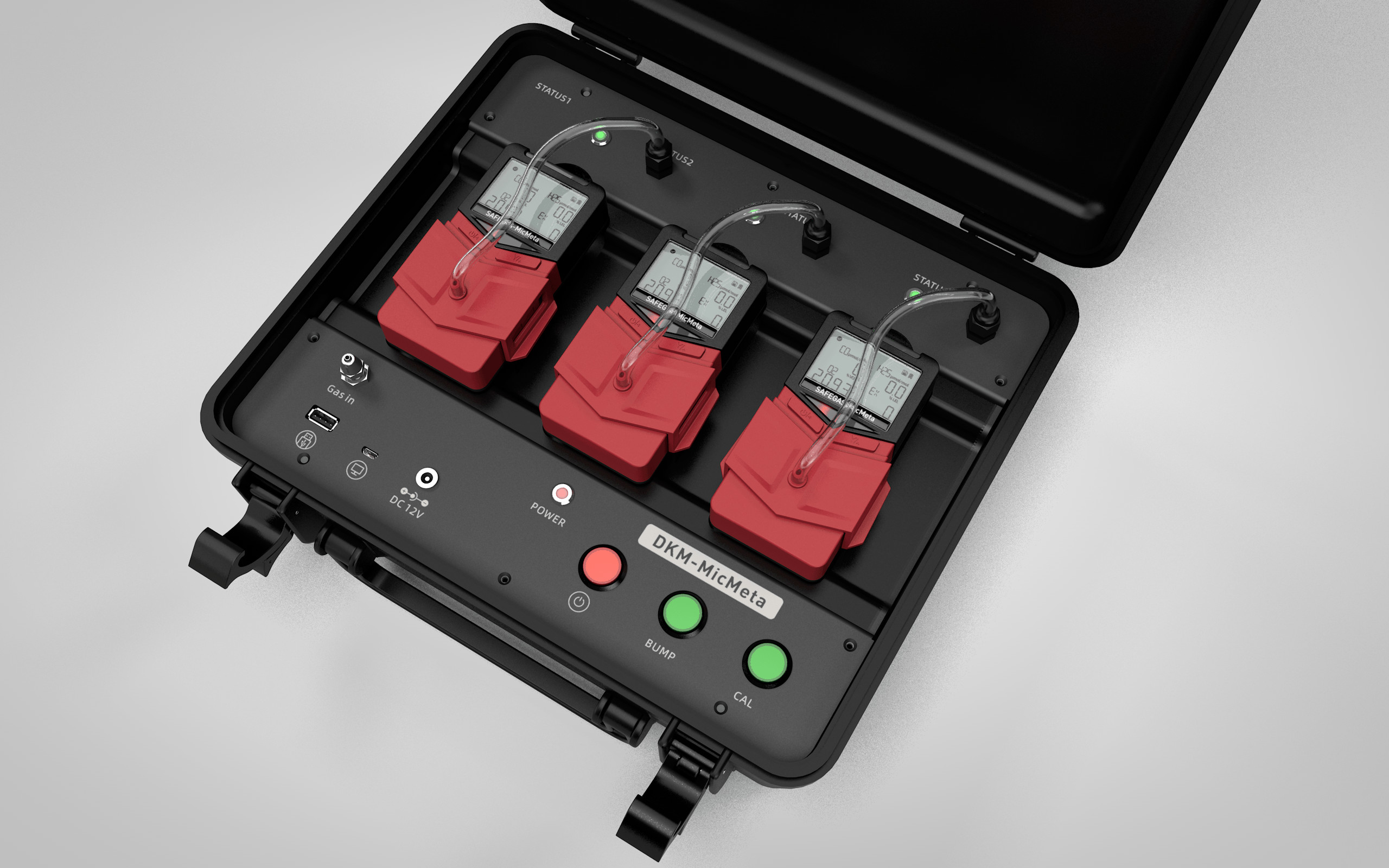

| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |

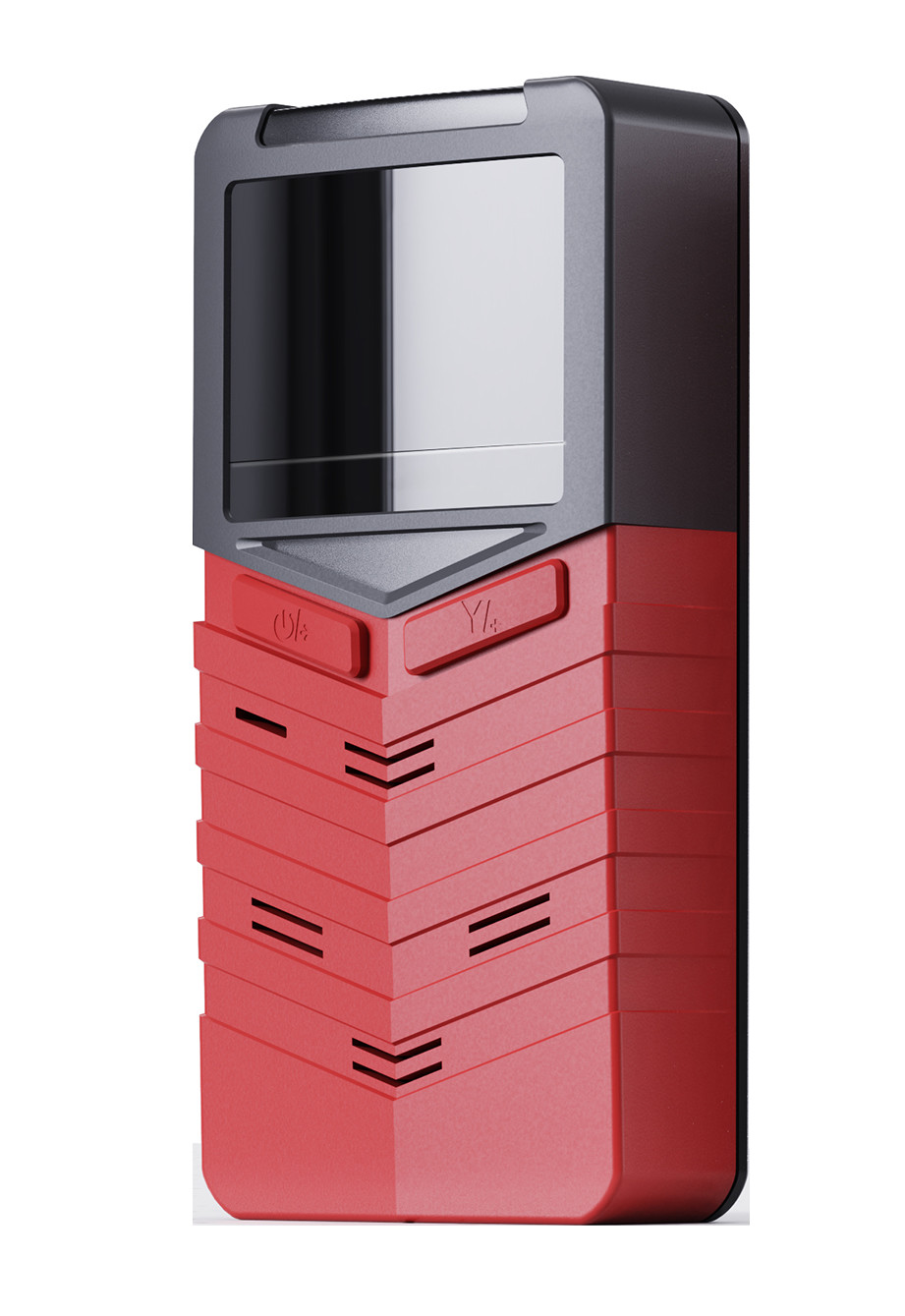

Product picture
Product Application
Industrial hygiene
Oil and gas
Fire ground “Toxic Twins” detection
Environmental
Chemical
Pharmaceutical
Telecommunications
Multi-gas leak detection in industries such as chemical
food and beverage
oil and gas (downstream)
etc.
