Model Number: | YT-98H-A/D | Detected Gas: | To Be Specified |
---|---|---|---|
Sensor Principle: | Electrochemical, Catalytic Combustion, Infrared, Etc | Measure Range: | To Be Specified |
Resolution: | To Be Specified | Install Method: | Wall-mounted |
Power Supply: | 12-24V DC | Net Weight: | 3.4 KG |
Product Size: | 286*202*96mm | Warranty: | 12 Month |
High Light: | Wall Mounted Gas Leak Detector,Gas Leak Detector IP66,Gas Leak Detector With Pump |

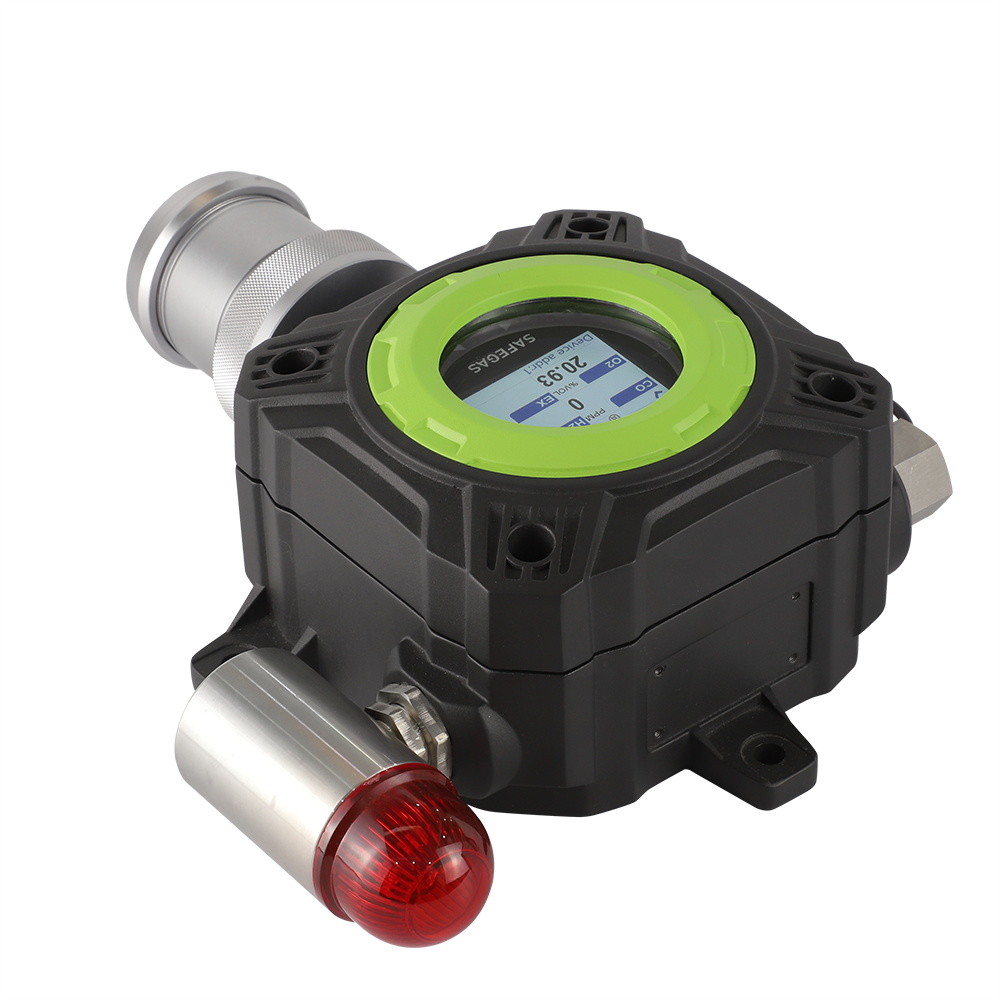

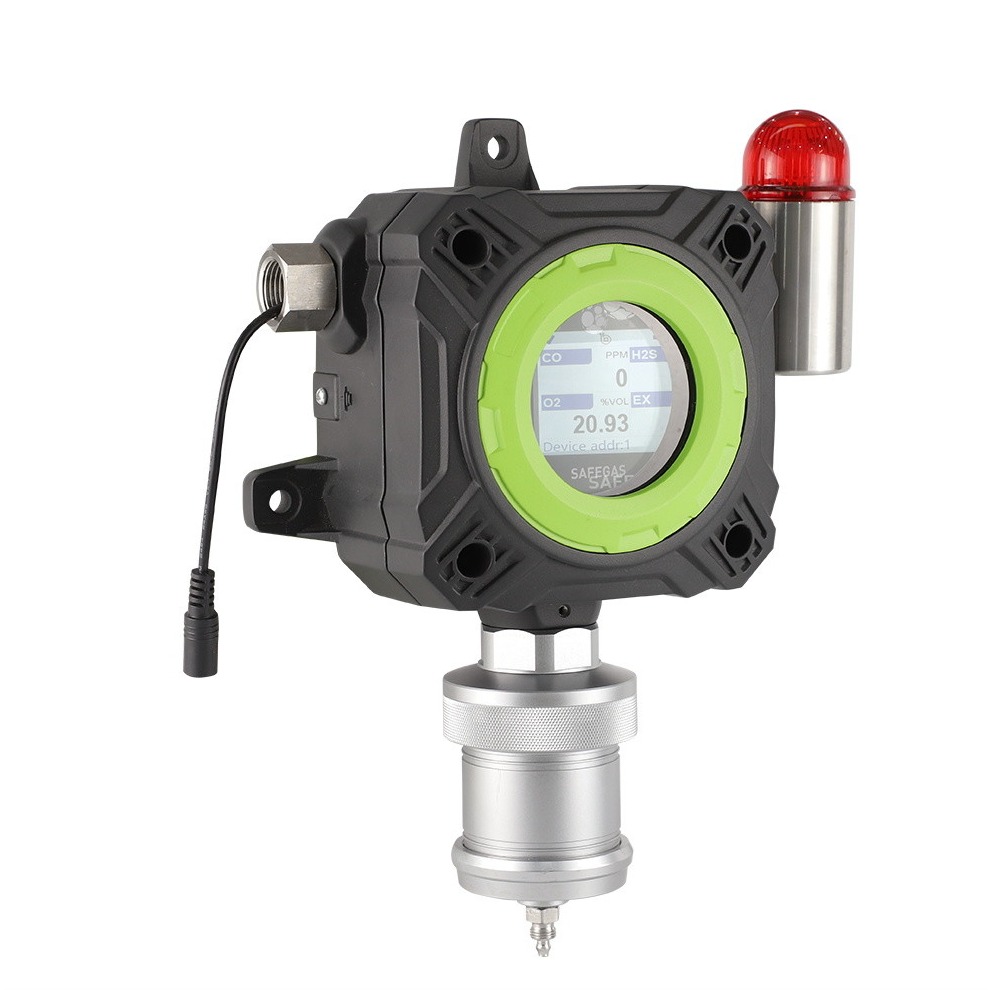

Wall Mounted 4 in 1 Gas Leak Detector IP66 With Pump/Diffusion Sampling
Product overview
Specification
Gas detected | To be specified | ||
Detection principle | Electrochemical, Catalytic combustion, Infrared, etc | ||
Install method | Wall-mounte (according to the detected environment) | ||
Measure range | To be specified | ||
Resolution | To be specified | ||
Precision | ± 2-5% FS | ||
Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
Response time | ≤10S | Recovery time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%(FS/year) | Display |
2.4 inch color display, resolution 320*240
|
Wireless output (optional):
|
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
|
Unit | ppm, mg/m³, %vol |
Temperature | -20 to 50°C | Humidity | 0-95%RH |
Explosion-proof | Ex db ⅡCT6 G6 | Degree of protection | IP66 |
Alarm | Sound, light |
Language:
|
Chinese / English
|
Dimensions |
286*202*96mm
|
Weight | 3.4kg |
Our advantage
1.All inquiries will be replied within 24 hours.
2. We can provide OEM services for fast delivery. The goods can be shipped within 3 days
3. For all customers, we guarantee a one-year warranty and lifelong maintenance.
4. We will provide technical support, and our engineers will help solve the problems you encounter.
5. All products must be inspected for packaging and issued with a certificate of conformity before shipment.
6. We are a manufacturer with our own factory, specializing in gas detection for about 16 years. Welcome to visit our factory.
7. All sensors are imported from Europe with first-class brand sensors, which have faster response speed and higher accuracy
