| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Model Number: | YT-95H |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-95H | Detected Gas: | NF3 |
|---|---|---|---|
| Sensor Principle: | Electrochemical | Measure Range: | 0-50/100PPM |
| Resolution: | 0.01PPM | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 3 KG |
| Product Size: | 180*150*90mm | Warranty: | 1 Year |
| High Light: | NF3 Toxic Gas Detector,Nitrogen Trifluoride Toxic Gas Detector,50PPM Toxic Gas Detector |
||

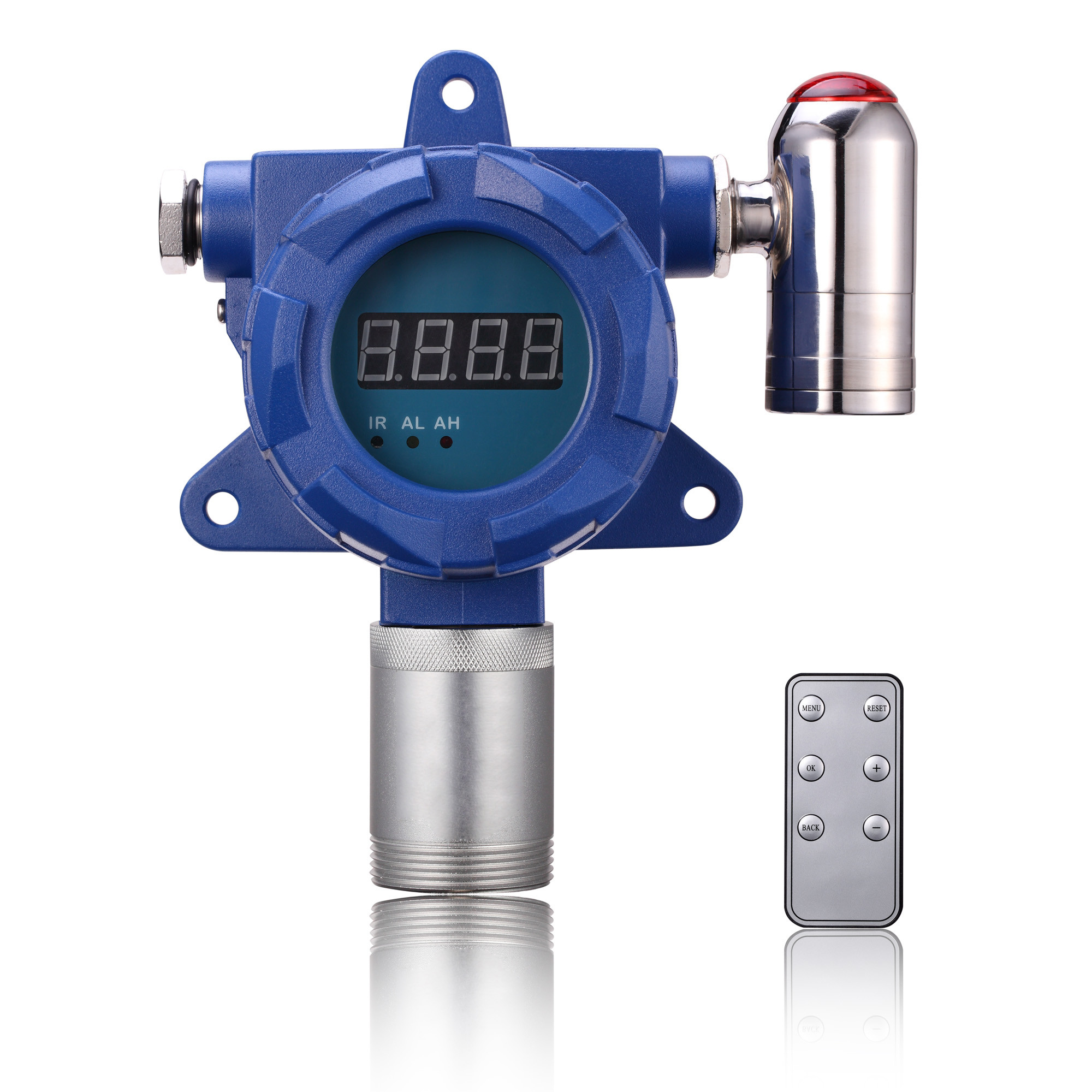

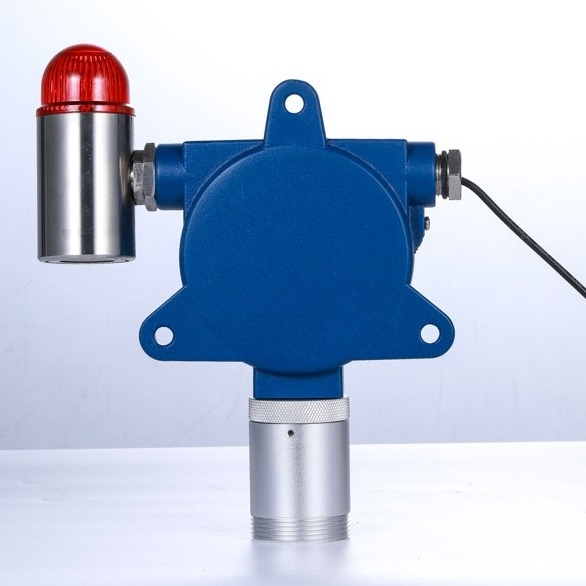

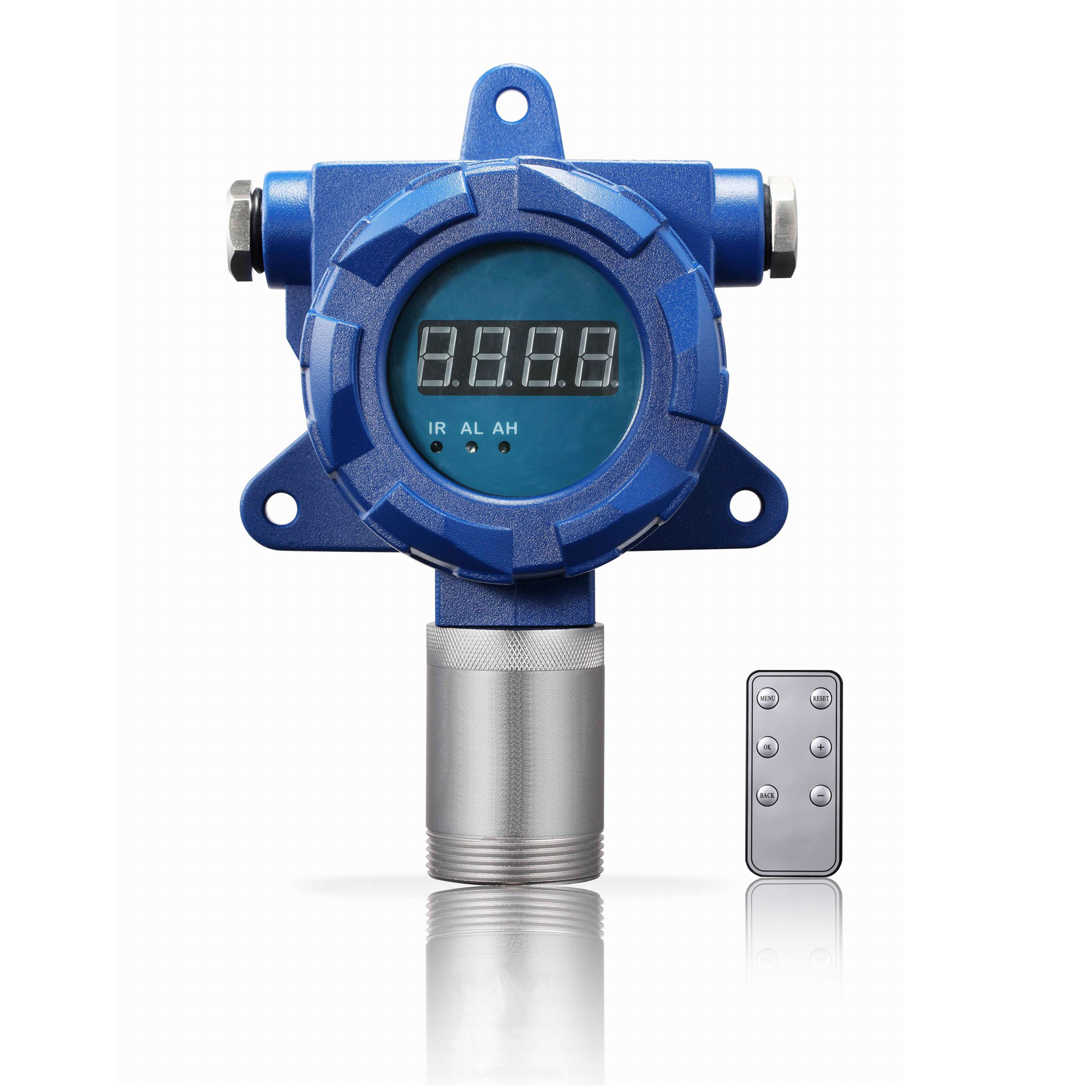

0-50PPM Fixed Diffusion Type NF3 Nitrogen Trifluoride Toxic Gas Detector
Product Overview
The YT-95H series gas detector (with alarm light) is a wall mounted gas detector that continuously monitors gas concentrations in different occasions or pipelines for 24 hours. Adopting the world's first brand sensors, advanced micro processing technology, with data display and high/low alarm functions, fast response speed, high accuracy, and good stability. Adopting 24V DC power supply, with 4-20mA, RS485, and relay signal output. Explosion proof, suitable for various occasions
Features
Product Advantages
Specification
| Gas detected | NF3 | ||
| Detection principle | Electrochemical | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-50/100PPM | ||
| Resolution | 0.01PPM | ||
| Precision | ± 2-5% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display | High-light nixie tube display |
| Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light | Operating time | 24H |
| Dimensions | 180*150*90mm | Weight | ≤2kg |
