| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX，CE，IECEX, EMC |
| Model Number: | Micmeta |
| Minimum Order Quantity: | 1 Pc |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 100 pieces/week |
| Model Number: | Micmeta | Sampling Method: | Diffusion |
|---|---|---|---|
| Testing Principle: | Electrochemistry, Catalytic Combustion | Measure Range: | Customized |
| Resolution: | Customized | Alarm Type: | Sound, Light, Vibration |
| Color: | Black And Red | Size: | 113*60*32mm |
| Net Weight: | 200g (with Battery) | ||
| High Light: | H2S Multi Gas Detector,LEL Multi Gas Detector,CO O2 Multi Gas Detector |
||
Standard Man Down Alarm CO O2 H2S LEL Multi Gas Detector In Hazardous Area
Product overview
MICMETA gas detectors are compact, lightweight, small, easy to use and require no specialized knowledge. Approved by IECEx, ATEX and CNEX, explosionproof classes Ex ia I Ma, Ex ia IIC T4 Ga are applicable to explosive gas mixtures in Zones 0, 1 and 2 of plants in classes IIA, IIB and IIC, temperature groups T1 to T4, and coal mines. In addition, it is the only IP68 rated multi-gas detector that offers unparalleled water protection. As a result, customers can be assured that it will withstand challenging conditions such as bad weather.
Product specification
| Sampling method | Diffusion |
| Gas type | CO O2 H2S LEL |
| Measure range | Customized |
| Resolution | Customized |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |

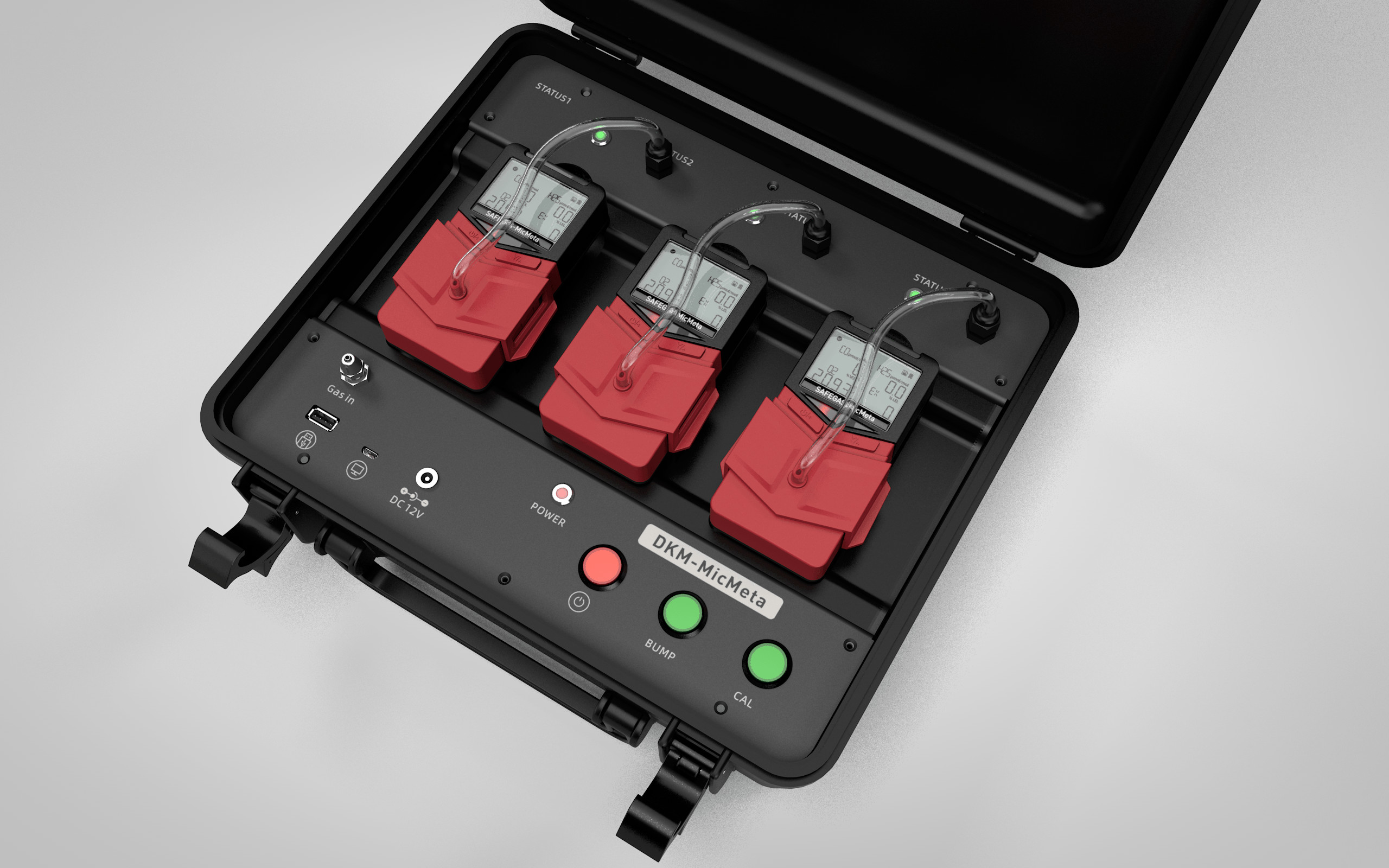

| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |

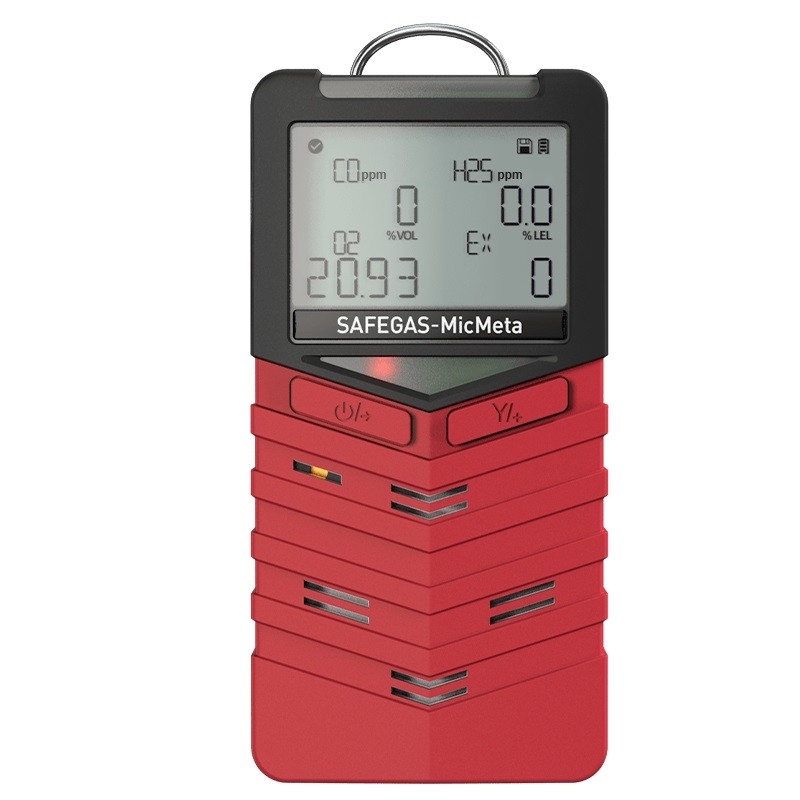

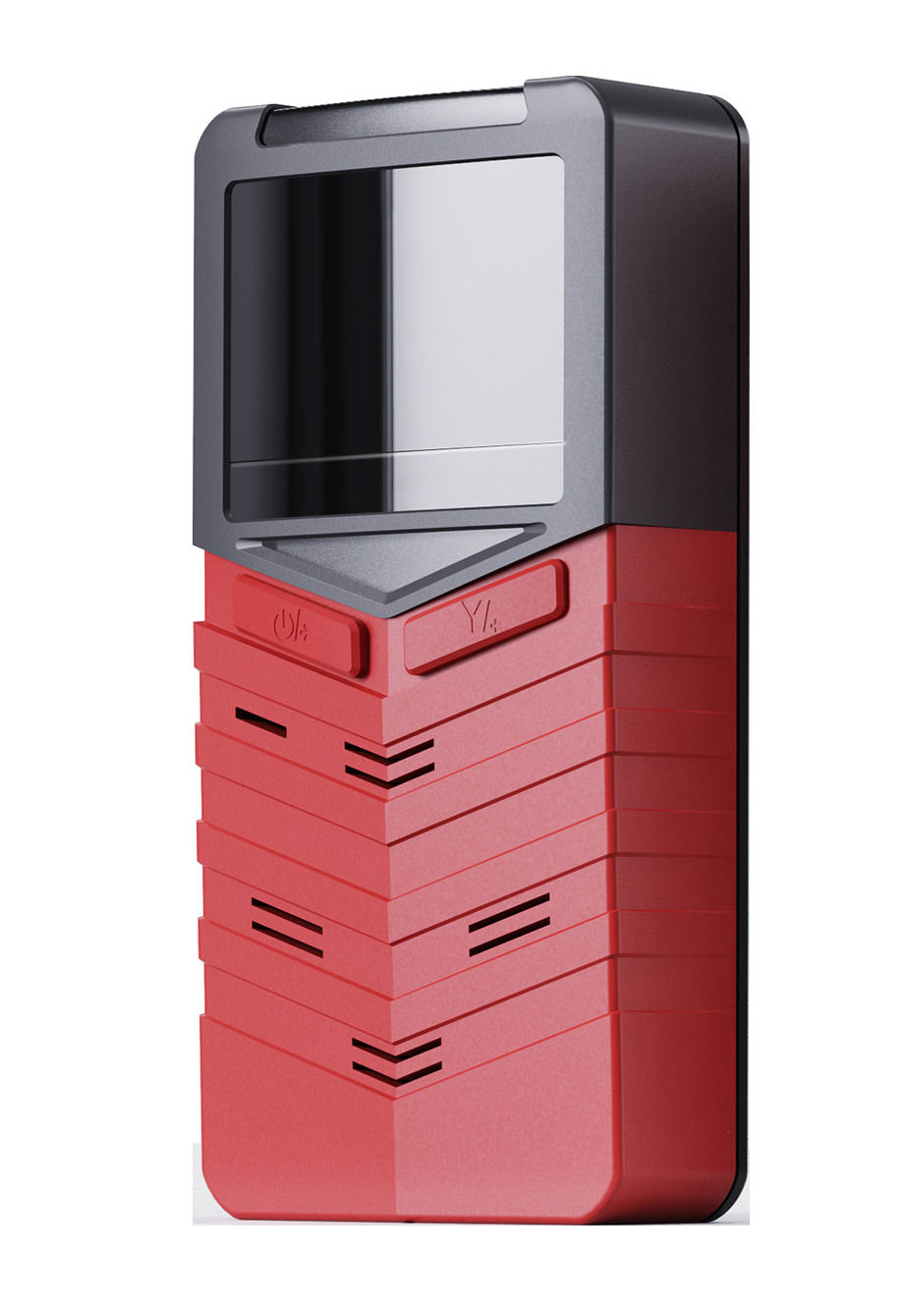

Product picture
Product advantages
Product Application
Oil and gas
Oil and gas (downstream)
Chemical
Food and beverage
Industrial hygiene
Environmental
Pharmaceutical
Telecommunications
Fire ground “Toxic Twins” detection
Multi-gas leak detection in industries such as chemical
etc.
