| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Model Number: | YT-95H |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-95H | Detected Gas: | H2O2 |
|---|---|---|---|
| Sensor Principle: | Electrochemical | Measure Range: | 0-50、200、1000、2000ppm |
| Resolution: | 0.01, 0.1, 1PPM | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 3 KG |
| Product Size: | 180*150*90mm | Warranty: | 1 Year |
| High Light: | High Accuracy Hydrogen Peroxide Gas Detector,Fixed Type H2O2 Gas Detector,Fixed Type Hydrogen Peroxide Gas Detector |
||
Fixed type high accuracy hydrogen peroxide H2O2 gas detector for Chemical industry pharmaceutical factory disinfection
Product Overview
YT-95H-A series is a 24-hour continuously monitoring fixed single-gas detector, which is the hot-selling and cost-effective type of products.
YT-95H-A has standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output, making it compatible with most control systems. It is with infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.
Features
The internal structure of YT-95H for signal output
1.Power: 12-24V DC(connect to 220V by Power Adapter or connect to Alarm control panel)
2.Sampling method: Diffusion
3.Online monitoring with sound/light alarm(Optional): 24h continuously monitoring, data will real-time display. High/low alarm with sound and light, sound >90dB, alarm
point is settable.
4.Non-contacted control the device

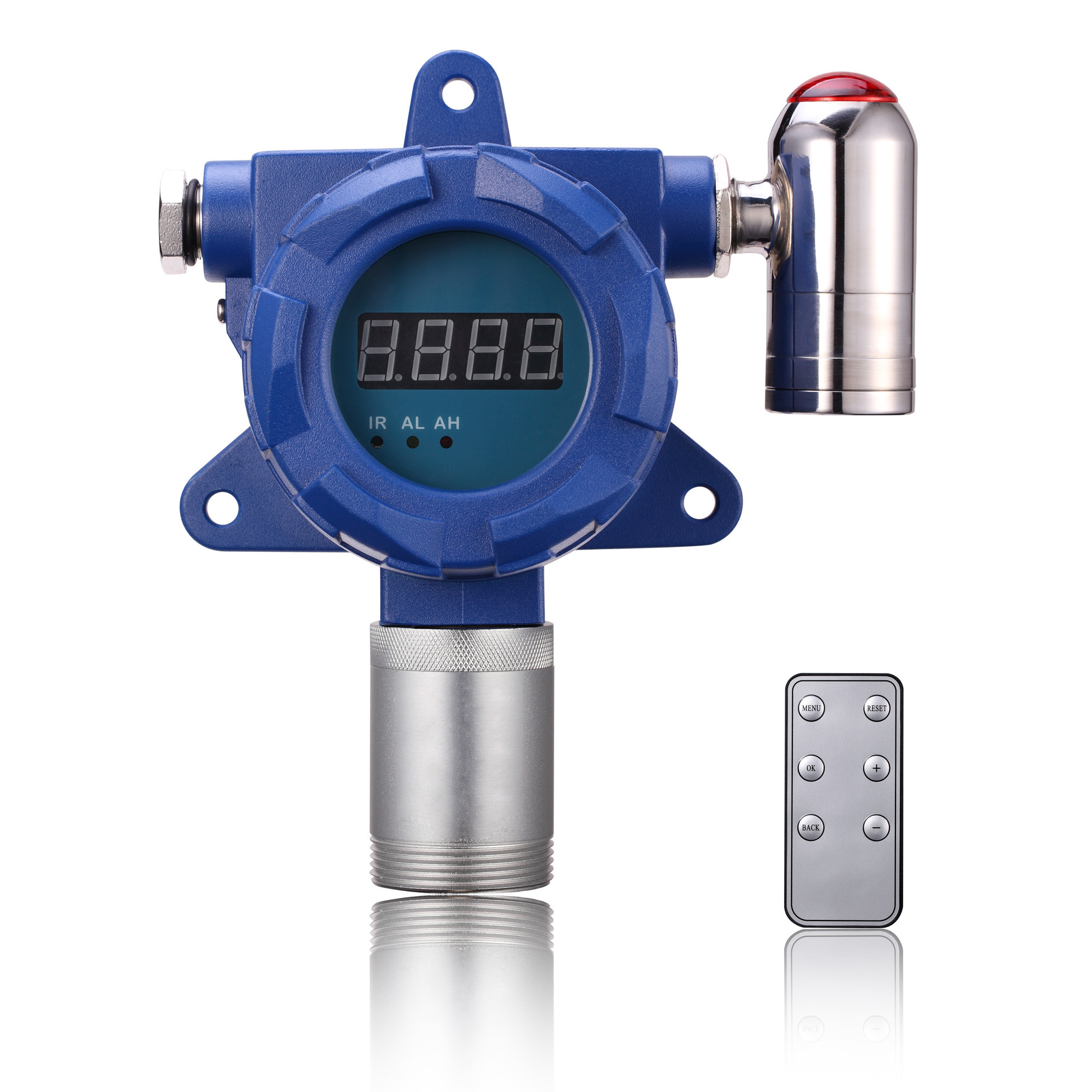

With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.
5.Variety of installation methods
4-20mA current signal, RS485 modbus signal, 1 set of relay signal output
6.Data transmission
Can be installed with PC software, to transmit the data to computer, workers can remote monitor the data.
7.Humidity: 0-95%RH,
Temperature: –20℃～50℃
Specification
| Gas detected | H2O2 | ||
| Detection principle | Electrochemical | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-50,200,1000,2000ppm | ||
| Resolution | 0.01, 0.1, 1PPM | ||
| Precision | ± 2-5% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display | High-light nixie tube display |
| Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light | Operating time | 24H |
| Dimensions | 180*150*90mm | Weight | ≤2kg |
FAQS
What about the packaging?
Aluminum luggage, cardboard boxes
Can you give me a sample order?
Yes, we welcome samples to test and inspect the quality
What are the payment terms?
Visa, Mastercard, electronic check, wire transfer, Western Union remittance, Alipay.
Do you have a minimum order quantity limit?
No, we don't accept it. One piece is fine
What certificate do you have?
ATEX, IECEX, CE, ISO, CNEX explosion-proof, CMC, if you have any other certification requirements, we are also willing to help you.
