Model Number:: | SKY3000 | Sensor Principle: | Electrochemical, Catalytic Combustion, PID |
---|---|---|---|
Measure Range: | Customized | Resolution: | Customized |
Response Time: | ≤30 Seconds | Precision: | ≤±2%F.S Except For Special Gases |
Working Hours: | More Than 15 Hours In Continuous Pumping Mode | Disaply: | Monochrome Graphics (160 X96) ,screen Can Be Automatically Flipped |
Language: | Chinese/English/ Russian | Backlight: | The Backlight Time Can Be Manually Set, And Will Be Turned On Automatically When An Alarm Is Issued |
High Light: | Explosion Proof Toxic Gas Detector,Leakage Alarm Toxic Gas Detector,NOX Toxic Gas Detector |
Industrial Grade Toxic Gas leakage alarm explosion proof CO HCN CLO2 CL2 EO NOX
Product Profile

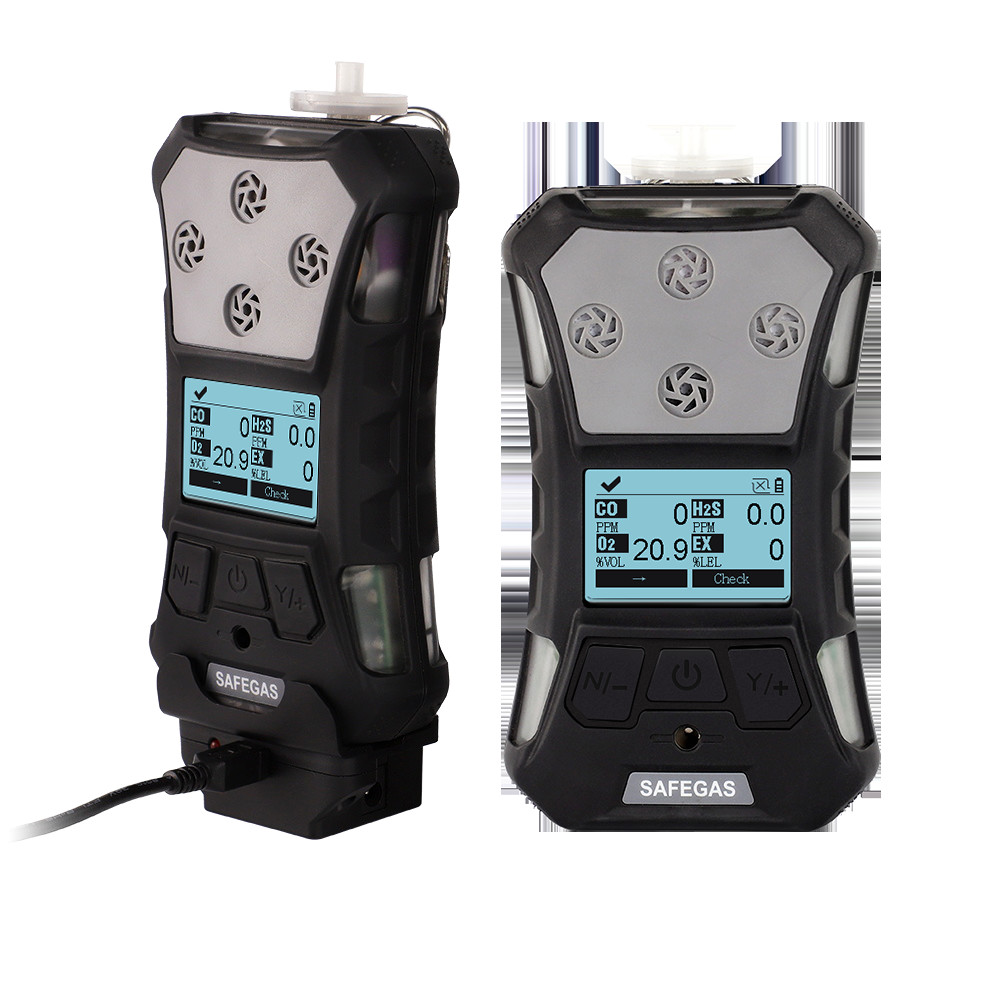

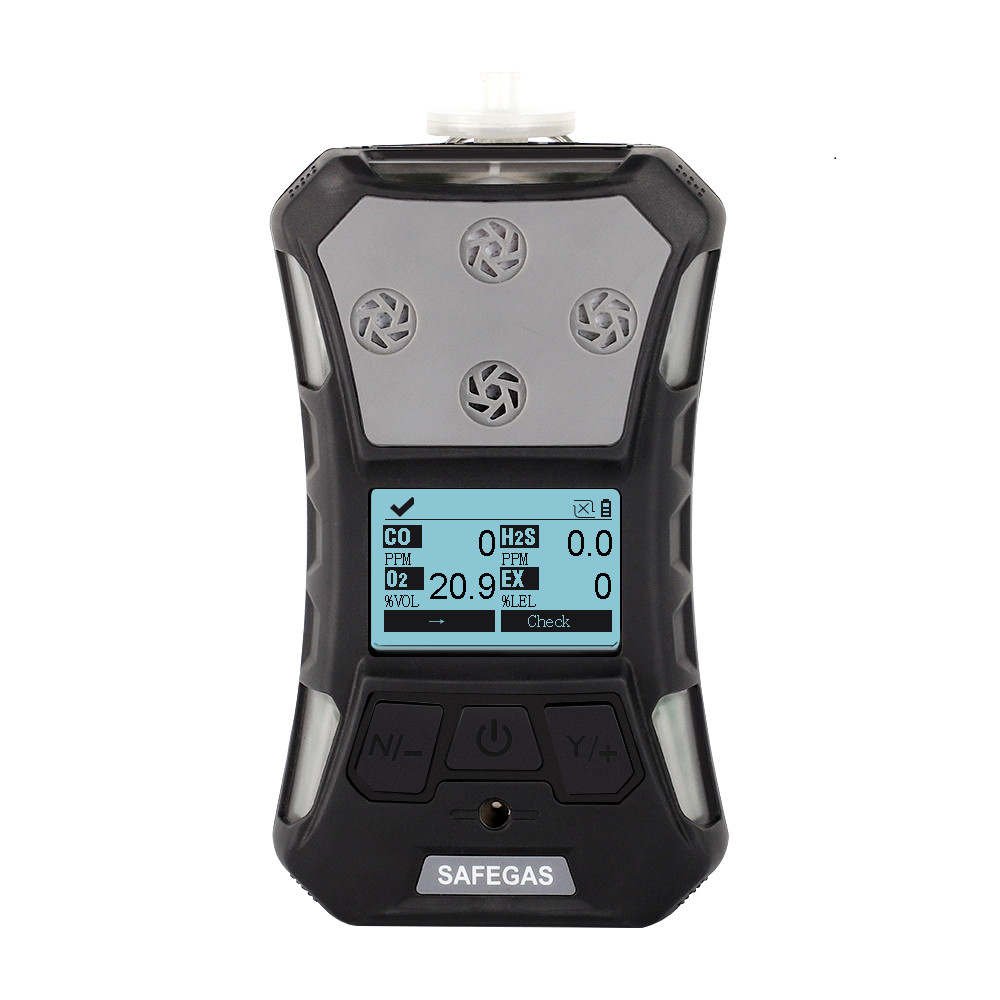

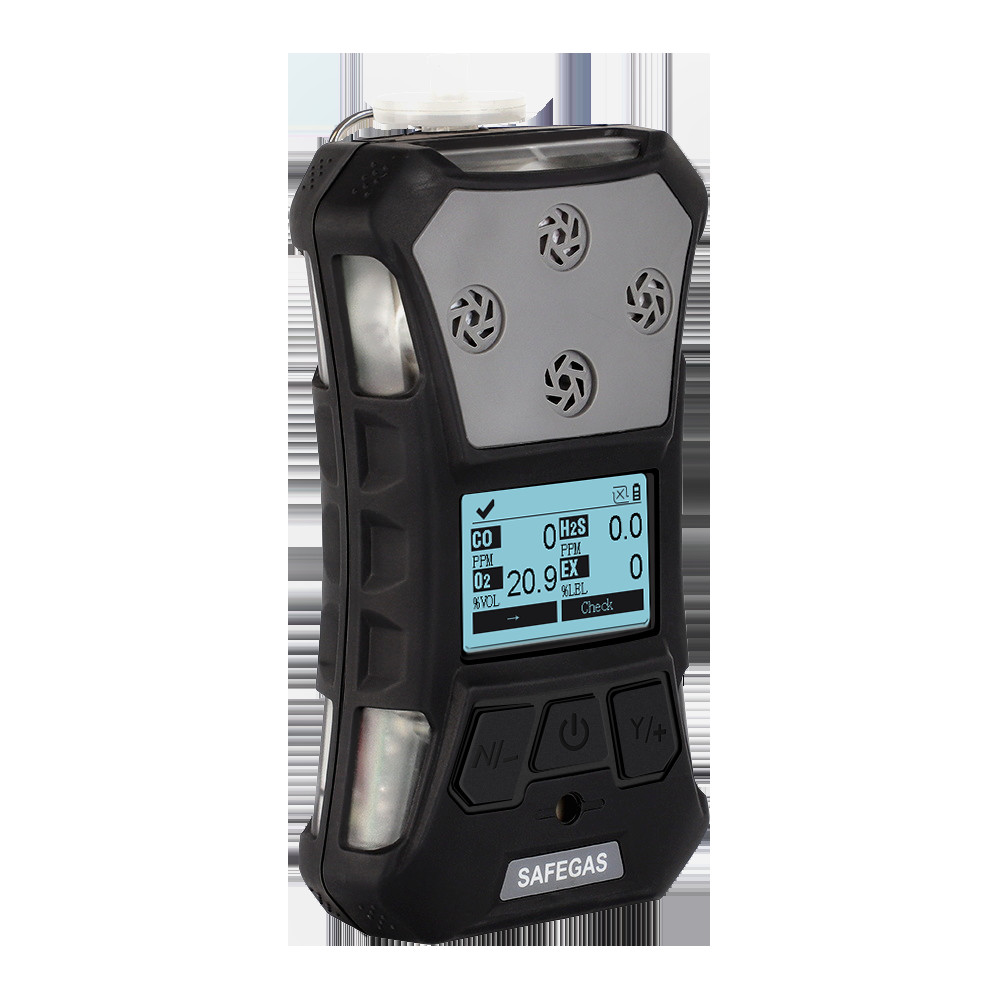

SKY3000 is an IECEX/ATEX/EMC certified portable multi gas detector with a rating of IP67. It is suction type with built-in pump and sensors used from world top brands, ensuring fast response and high accuracy.
Product advantages
1. It can measure up to 5 gases at the same time, supporting multiple numerical display including real-time data, TWA, STEL, MAX, MIN.
2. The screen can be automatically turned 180 degrees, which is convenient for viewing in special operating environments.
3. Pump suction and diffusion dual use, to provide operators with more reliable protection.
4. With a water trap filter, it can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields.
5. Optional Bluetooth function, data can be transmitted to the mobile phone or PC in real time
6. It has storage function for 100,000 readings, data can be exported to PC by one-click, convenient for users to analyze.
7. Automatic prompts for voltage and pump failure alarms makes it more user friendly.
8. PPM and mg/m³ gas unit switch, the concentration value is automatically converted by the system.
9. Man down alarm function
When you wears the detector and enters the detection environment, if the detector remain still within 30-360s, the alarm will be started automatically. When you are in danger, it can notify your partner to save you.
Specifications
Gas Detected | CO HCN CLO2 CL2 EO NOX etc | ||
Detection principle | Electrochemical, catalytic combustion, PID | ||
Sampling Method | Pumping suction | ||
Measure Range | Customized | ||
Resolution | Customized | ||
Precision | ≤±2%F.S except for special gases | ||
Response Time | ≤30 seconds | Recovery Time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
Operating language | Chinese/English | Gas unit | Units are switchable |
Temperature | -20℃-50℃ | Humidity | 0-90%RH |
Explosion-Proof | IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga | Degree of protection | IP67 |
Alarm mode | Sound, light, vibration | Environmental pressure | 86~106Kpa |
Dimensions | 157*84.5*59.5mm | Weight | 365g |
Factory Advantages
A Professional: We have been focused on gas detection devices for more than 10 years and been cooperating with PB group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc famous companies. We are with rich experience to provide you professional solutions.
B Innovation: Strong R&D team (invest 40% revenues into research and experienced engineers team) makes our products stand out in the market.
C Quality: International top brands sensor and IC /100% production test, make sure a good quality.
D Professional technical support: Provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.
E Completed certifications: ATEX / IECEX / SIL / CE / CNEX / ISO9001/, meet government standard as well guarantee your safety health.
F Services: We provide 24*7 hours service, if there have any question, Celia will reply you in 1 hours. Meanwhile, we can provide OEM services.
G Delivery: We can ship it out in 2-3 days. For some mass production and special customised gas analyzer, we can ship it out in 7 days.
Application:
Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy, Health Care, Foodstuff, Antiseptic.
Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
Livestock Farm, Refuse Processing Plant, Perm Place.
Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics, Brewing And Fermentation, Agricultural Production.
Product package: Aluminum Case
