| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX，CE，IECEX, SIL |
| Model Number: | SG100 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase Packing |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 100 pieces/day |
| Model: | SG100 | Range: | 0-5, 20, 50, 100, 200, 500, 1000, 2000, 5000ppm |
|---|---|---|---|
| Resolution: | 0.1ppm, 0.01ppm, 1ppm | Sampling Mode: | Diffusion |
| Testing Principle: | Electrochemistry | Color: | Black |
| Remote: | Infrared Remote Control, Magnetic Bar | Weight: | 1kg |
| Size: | 157.8*128.8*69.6mm | Signal Transmission: | RS485, 4-20mA, Relay |
| High Light: | PH3 single gas detector,PH3 Gas Detector With PID Sensor,24h Monitoring PH3 Gas Detector |
||

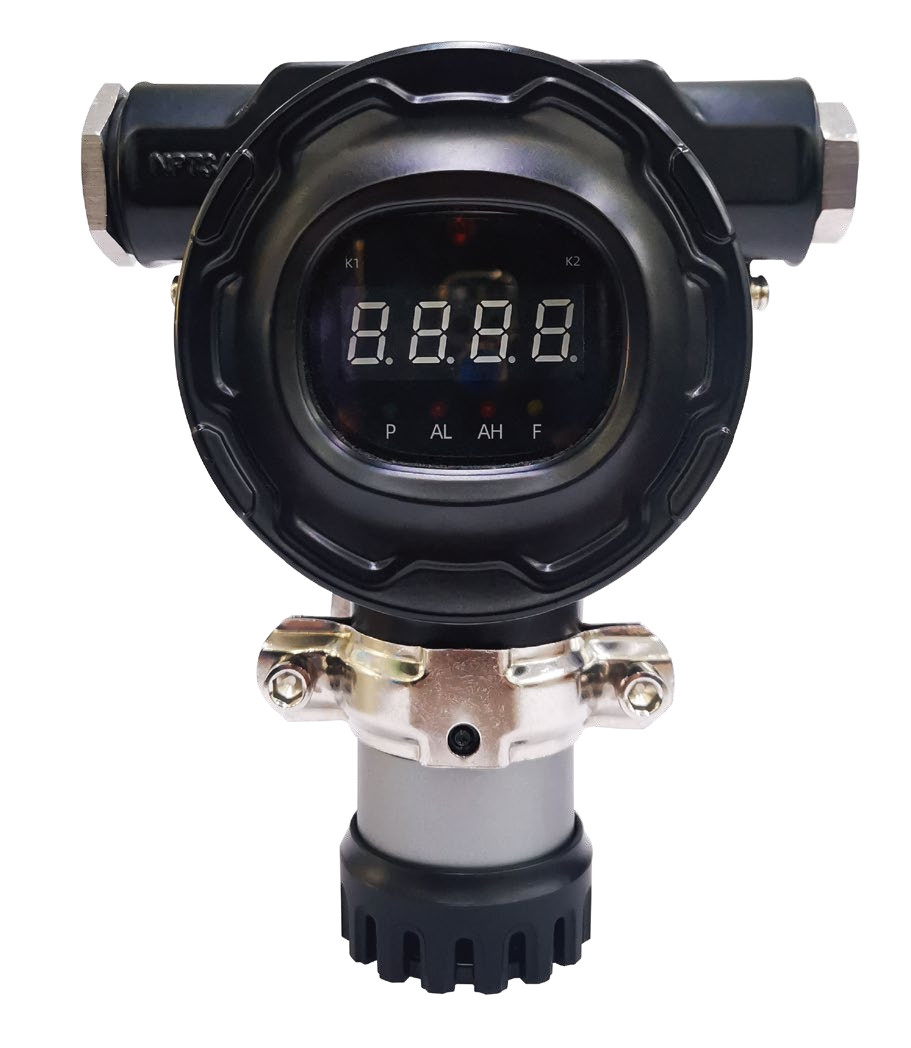

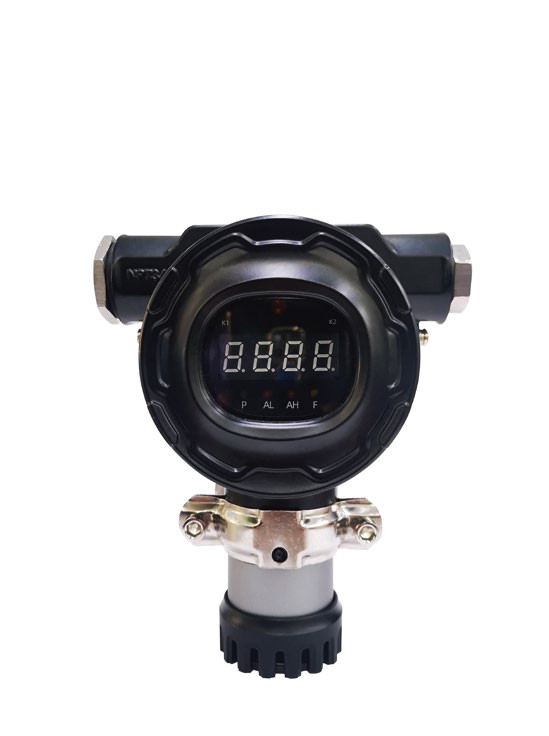

Wall-Mounted 24h monitoring PH3 single gas detector high accuracy with PID sensor during fumigation
SG100 overview
SG100 series is an IECEX/ATEX/EMC certified single-gas detector with a rating of IP67, which is a 24-hours online gas monitor. It has standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output, making it compatible with most control systems. Adopt magnetic wand design, it’s safe and easy to operate in explosion areas.
With IECEx, ATEX certificates, explosion level reaches Ex db IIC T6 GB/Ex db ia IIC T6 GB/Ex da db ia IIC T6 GB.
Product Advantages

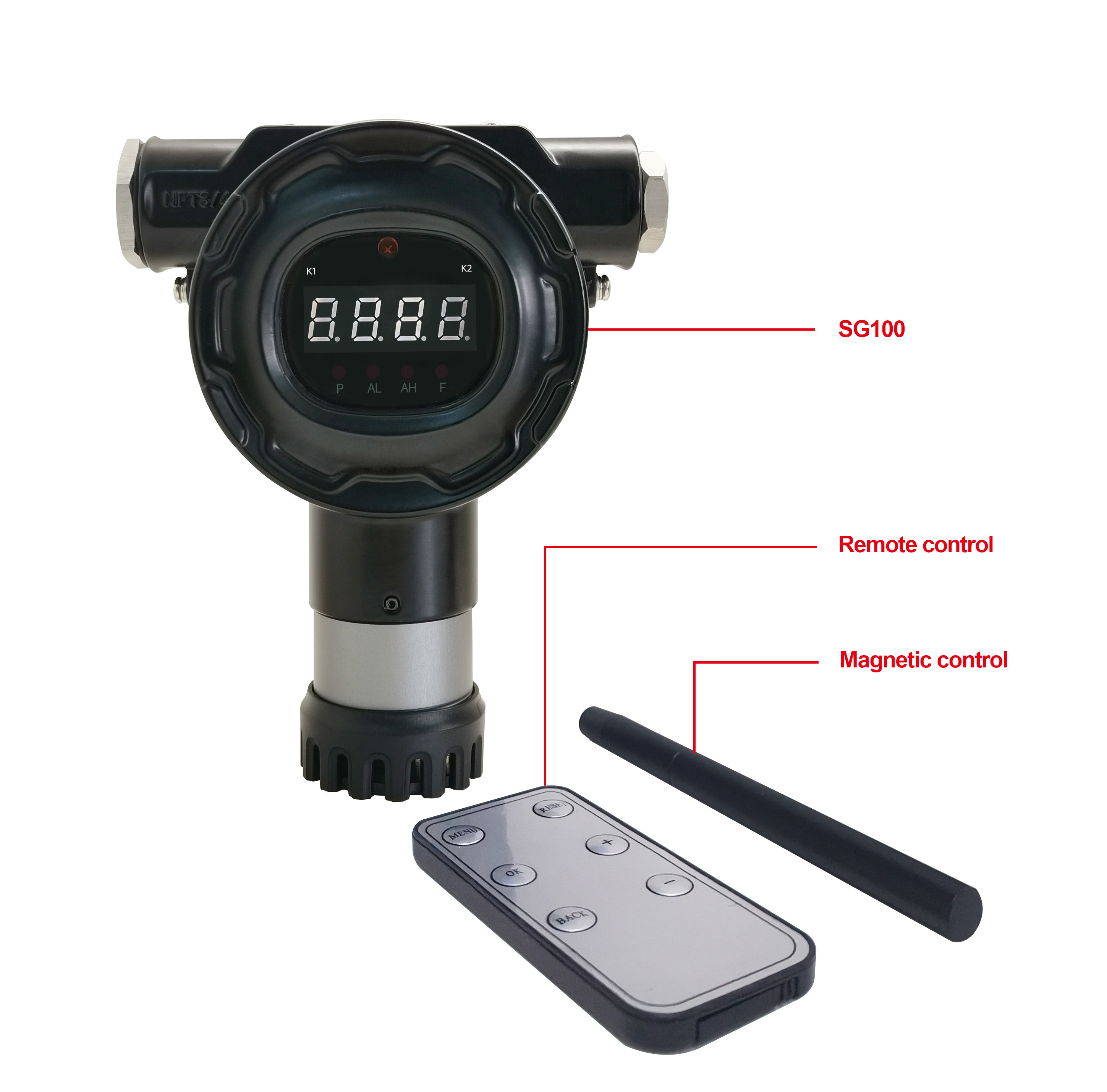

Picture details
Specification
| Detected Gas | PH3 |
| Measure Range | 0-5, 20, 50, 100, 200, 500, 1000, 2000, 5000ppm |
| Install Method | Wall-mounted, piping type, flow-type |
| Output signal | 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
| Precision | ≤±1%F.S. (to be specialized) |
| Zero shift | ≤±1%(F.S./year) |
| Display | 4 digits Nixie tube display. |
| Connection mode | G3/4 external thread explosion-proof flexible pipe |
| Thread Size | Standard M20*1.5, 3/4NPT |
| Temperature | –20℃～50℃ (electrochemistry principle), –40℃～70℃ (catalytic combustion principle) |
| Humidity | 10-95%RH (non-condensing) |
| Explosion-Proof | Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Degree of protection | IP66/IP67 |
| Material | Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-24V DC |
| Dimensions | 158×129×70mm |
| Weight | ≤1kg |
| Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty | 12 months |
Safegas- Company profile
Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 13 years. With gas detector as the core product, we have completed
production line and solutions according to different industries.
What is our advantage
1.As a professional manufacturer of gas detectors, we controls the whole process from design-development-production-sales, ensuring the consistency of product quality. We have more than 100 patents of independent intellectual property rights in design and development; In production, we have skilled technical workers and a complete industrial line, can grasp the production and quality of products throughout the process; In addition, our company has rich sales experience in overseas, the professional sales team can provide customers with 7*24h service.
2.We have a professional R&D team, who have been engaged in the gas detection industry for about 25 years, with absolute professional technical knowledge and a lot of experience in dealing with technical problems, to provide after-sales service for customers.
3.We implement a strict quality management system and produce gas detectors based on the principle of quality first, so we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.
4.Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such
as mines, underground and oil plants, etc. We are the first and only manufacturer in China to obtain this certification. Products without explosion-proof certification are prohibited to be used in hazardous areas.
5.As our core components, IC or sensors are used imported brands such as Honeywell, CITY and Alpha, etc., which make our products with high precision and stabilize the life of the products. It ensures the accuracy of detection and escorts the life safety of customers.
6. Our complete product line and stable inventory provide customers with fast delivery time. We can ship it out within 3 days for the quantity of less than 10 pieces. Even for the mass production of 100 pieces, we can complete within half a month.
