| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Safegas |
| Certification: | CE，IECEX, EMC, ATEX |
| Model Number: | Micmeta |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1-3 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 1000 pieces/month |
| Model Number: | Micmeta-EX | Sampling Mode: | Diffusion |
|---|---|---|---|
| Sampling Principle: | Catalytic Combustion, Electrochemistry, Infrared | Measuring Range: | 0-100%LEL (Customized) |
| Resolution: | 1%LEL (Customized） | Alarm Type: | Sound, Vibration, Light |
| Color: | RED & BLACK | Instrument Size: | 113*60*32mm (L*H*W) |
| Weight: | 200g (with Battery) | ||
| High Light: | IP68 LPG Gas Detector,Security LPG Gas Detector |
||
IP68 Security Grade LPG Gas Detector 0-100%LEL IECEx ATEX Certified
Product overview
MicMeta is an IECEx/ATEX/EMC certificated multi gas detector with a rating of IP68. With explosion proof grade Ex ia I Ma, Ex ia IIC T4, MicMeta can be used in coal mines. It’s light weight, small size and with 2 buttons for easy use. The standard gas type is multi 4 (CO H2 S O2 LEL) gases and also support hundreds of gases for optional customization. It’s with wirelessfunction so user can access to data remotely. With standard data logger, real time data and alarm events can be export to PC directly.
Product specification
| Sampling method | Diffusion |
| Gas type | LEL |
| Measure range | 0-100%LEL |
| Resolution | 1%LEL |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |

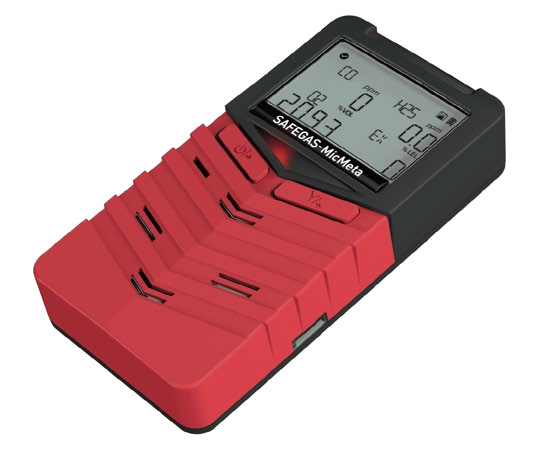

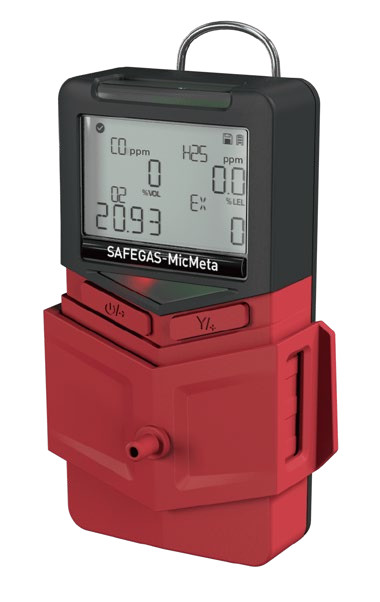

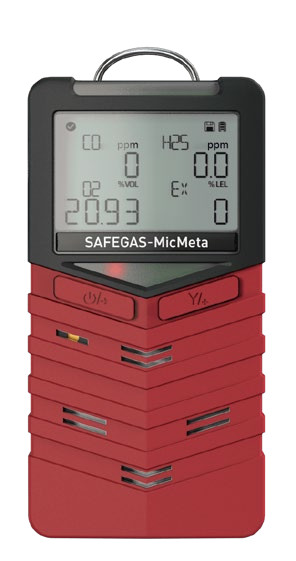

Product picture
Product advantages
Small size, light weight, durable
There are 2 buttons, easy to use.
Bright wide-angle visual alarm bar
IP66/IP68 rating ensures maximum dust and water resistance
Durable, the instrument can effectively resist a drop of 1.5 meters
Through EMC anti-static interference test, it can work normally in the environment of intercom
The back clip, ergonomic and wear-resistant design, won't weigh you down
Product application
Chemical
Oil and gas
Oil and gas (downstream)
Environmental
Pharmaceutical
Industrial hygiene
Food and beverage
Telecommunications
Fire ground “Toxic Twins” detection
Multi-gas leak detection in industries such as chemical
etc.
