| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX/IECEX/CE/EMC |
| Model Number: | SKY3000 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100 pieces/day |
| Model Number:: | SKY3000 | Sensor Principle: | Electrochemical, Catalytic Combustion, PID |
|---|---|---|---|
| Measure Range: | Customized | Resolution: | Customized |
| Response Time: | ≤30 Seconds | Precision: | ≤±2%F.S Except For Special Gases |
| Working Hours: | More Than 15 Hours In Continuous Pumping Mode | Disaply: | Monochrome Graphics (160 X96) ,screen Can Be Automatically Flipped |
| Language: | Chinese/English/ Russian | Backlight: | The Backlight Time Can Be Manually Set, And Will Be Turned On Automatically When An Alarm Is Issued |
| High Light: | Freon Gas Leak Detector,Refrigerant Freon Gas Leak Detector,Freon Gas Leak Detector IP67 |
||
Refrigerant Freon Gas Leak Detector with Atmospheric Special Sensor IP67 Degree
Product Profile

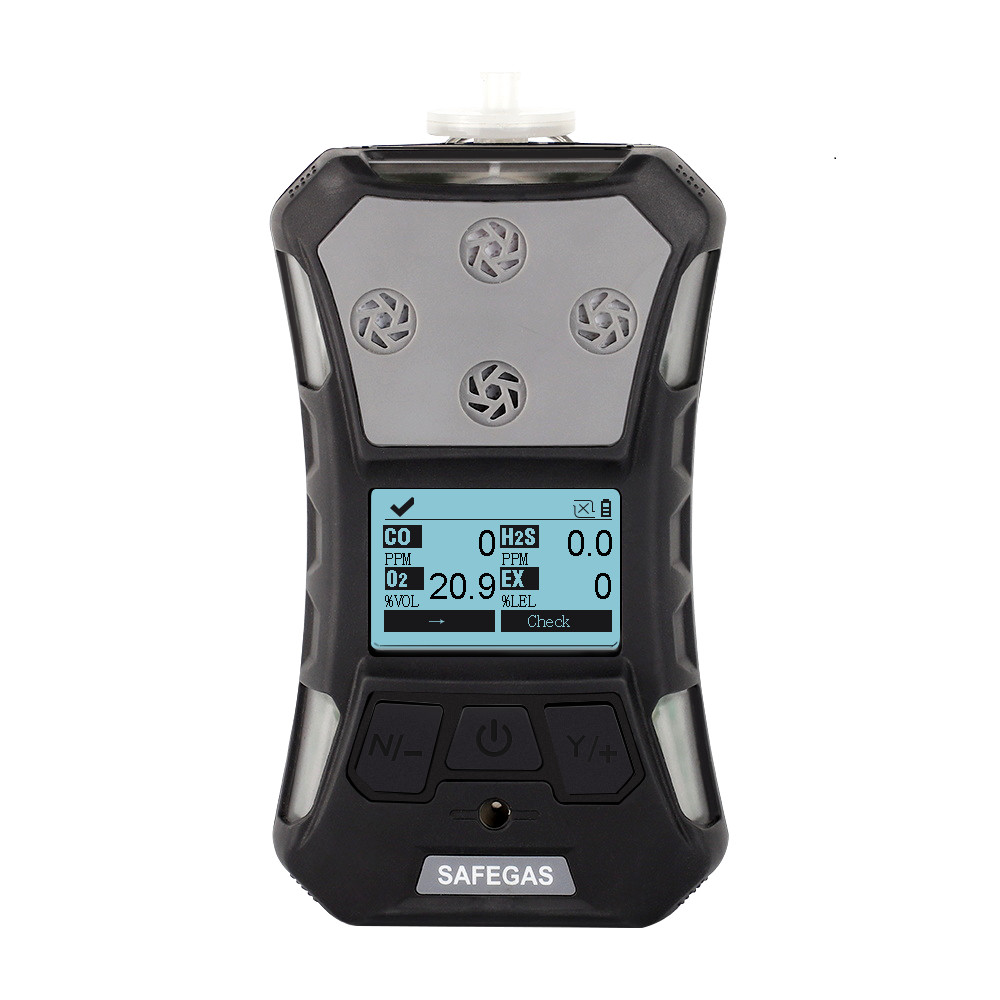

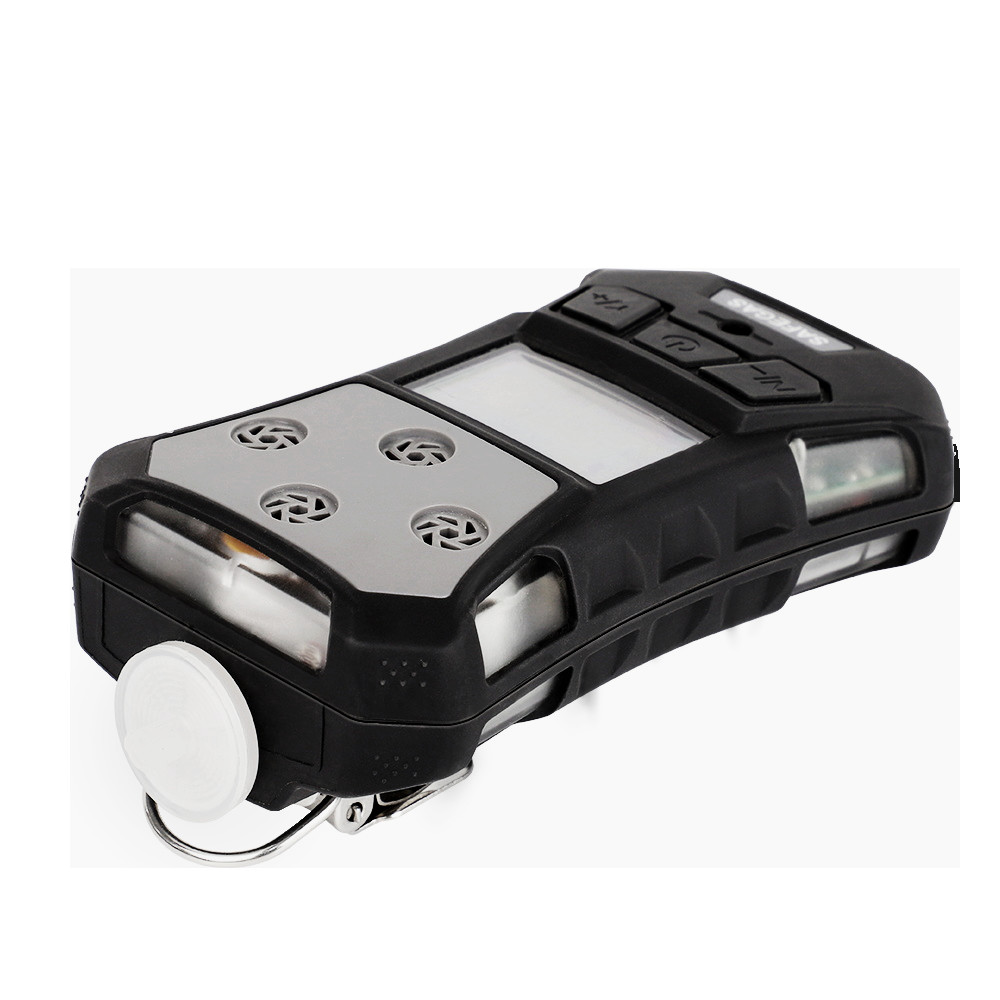

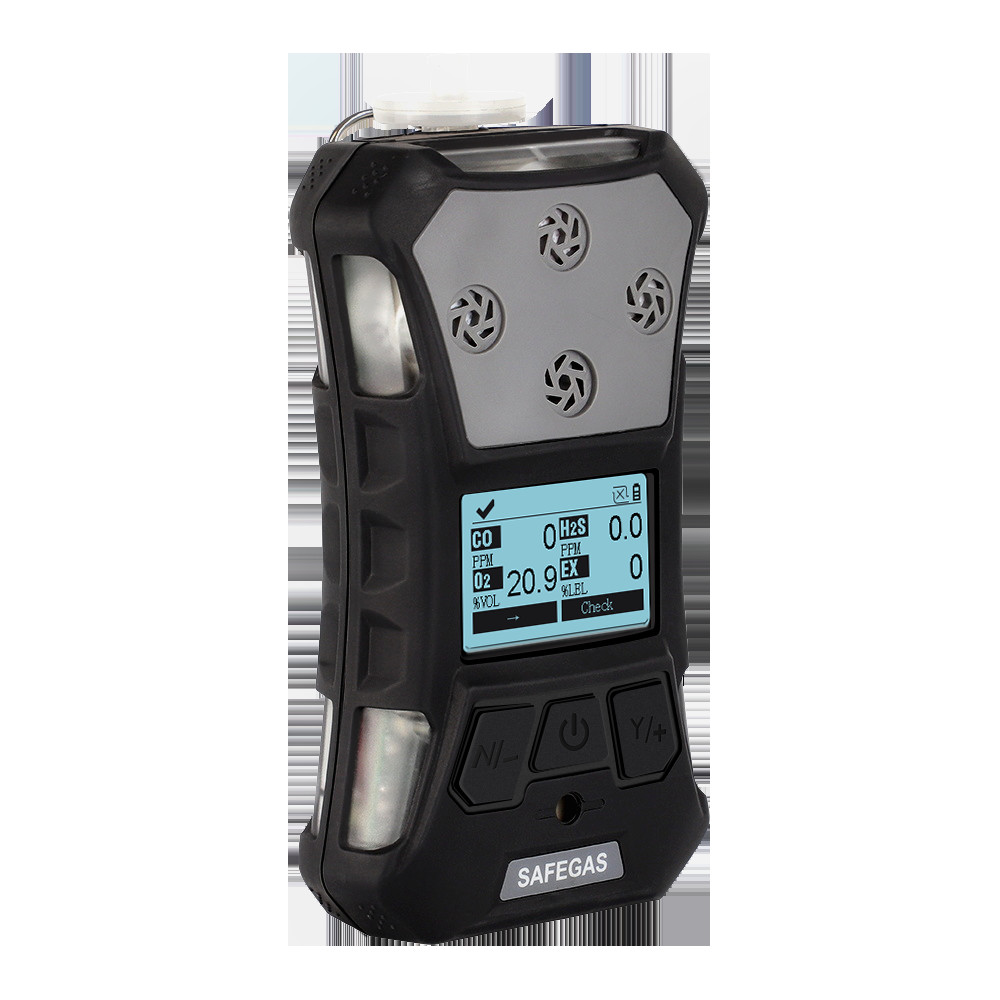

SKY3000 is an IECEX/ATEX/EMC certified portable multi gas detector with a rating of IP67. It is suction type with built-in pump and sensors used from world top brands, ensuring fast response and high accuracy.
Functions:
1. Simultaneous upto 5 gases can be monitored, multiple numerical display including real-time data, TWA, STEL, MAX, MIN multiple numerical.
2. The screen can be automatically turned 180 degrees, which is convenient for viewing in special operating environments
3. Pump suction and diffusion dual use, to provide operators with more reliable protection
4. With a water trap filter, it can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields.
5. Optional Bluetooth function, data can be transmitted to the mobile phone or PC in real time
6. Storage function, one-click data export, convenient for users to analyze
7. Automatic prompts for voltage and pump failure alarms makes it more user friendly.
8. PPM and mg/m³ gas unit switch, the concentration value is automatically converted by the system.
Specifications
| Gas Detected | CO HCN CLO2 CL2 EO NOX etc | ||
| Detection principle | Electrochemical, catalytic combustion, PID | ||
| Sampling Method | Pumping suction | ||
| Measure Range | Customized | ||
| Resolution | Customized | ||
| Precision | ≤±2%F.S except for special gases | ||
| Response Time | ≤30 seconds | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃-50℃ | Humidity | 0-90%RH |
| Explosion-Proof | IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga | Degree of protection | IP67 |
| Alarm mode | Sound, light, vibration | Environmental pressure | 86～106Kpa |
| Dimensions | 157*84.5*59.5mm | Weight | 365g |
Safegas-Factory Information
Established in 2010, Shenzhen Yuan Te Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10years of rapid development, Yuante becomes the influential supplier.
Accessories & Configuration List
Standard Accessories
SKY3000
Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
Filter
Storage function(USB cable)
Optional Accessories
Probe
Tube
Bluetooth App
Product package: Aluminum Case
