Detail Information

Model Number:	YT-95H-SF6	Detected Gas:	SF6
Sensor Principle:	Infrared	Measure Range:	Specified According To Application
Resolution:	Specified According To Application	Install Method:	Wall-mounted, Piping Type, Flow-type
Power Supply:	24V DC	Gross Weight:	3 KG
Product Size:	18015090mm	Warranty:	1 Year
Highlight:	Sulfur Hexafluoride Fixed Gas Detector , SF6 Fixed Gas Detector , 24h-Online SF6 Gas Detector

Product Description

24h-Online Diffusion Type for Power Industry Sf6 Sulfur Hexafluoride Fixed Gas Detector

Product Overview

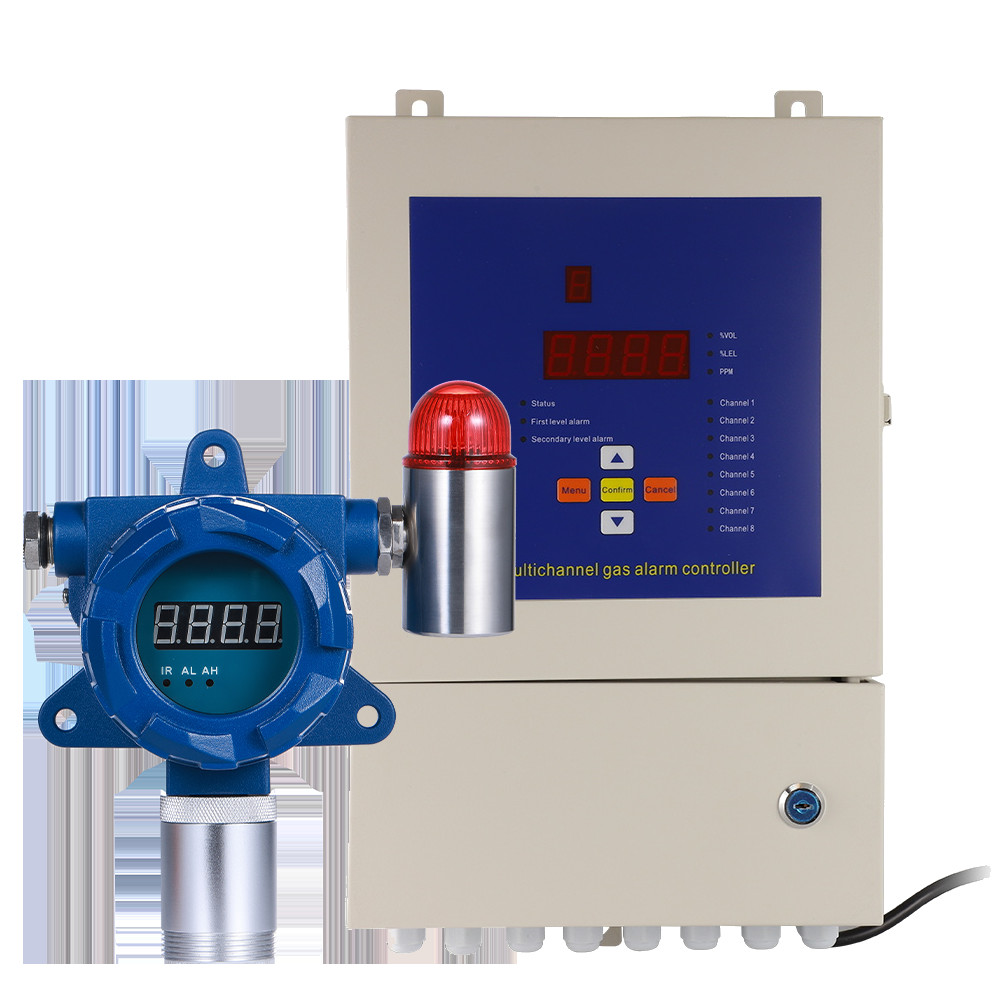

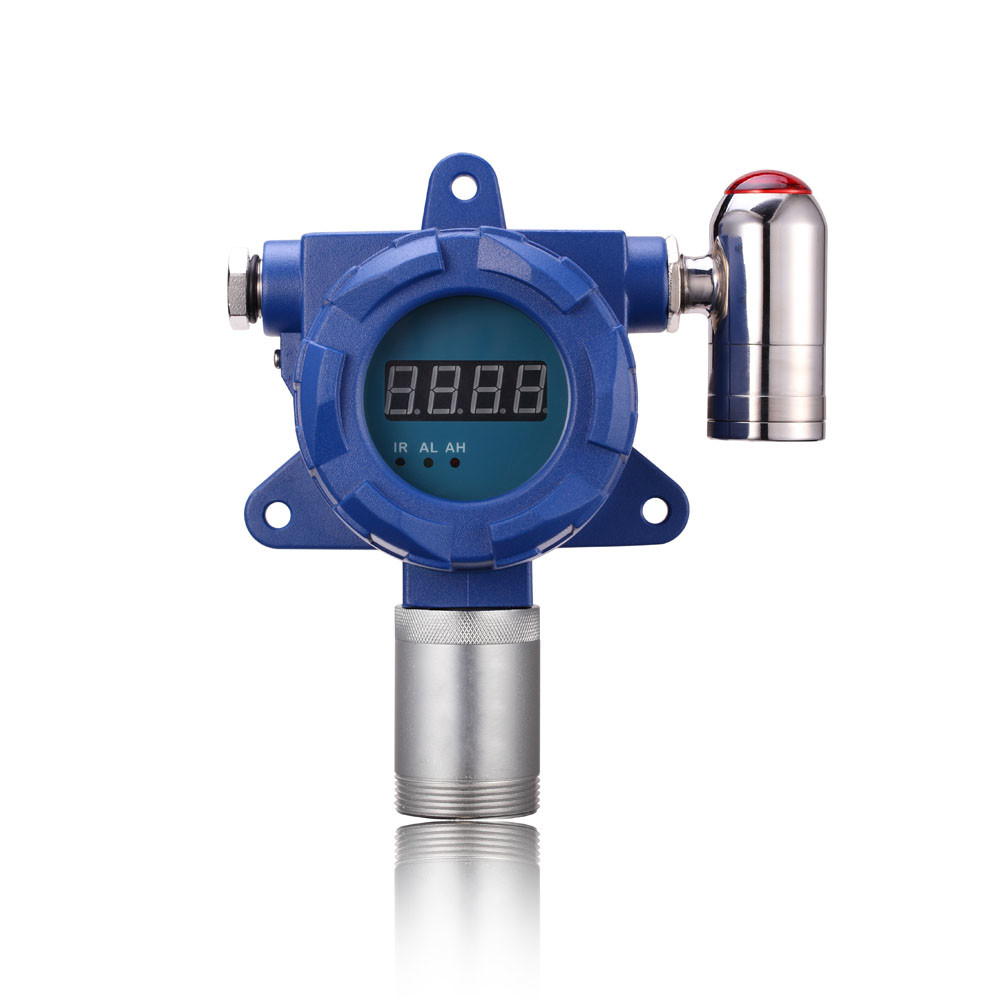

YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations.

Product Advantages

Non-contacted control the device
Diversified output signals
Variety of installation methods
Data transmission
High quality case

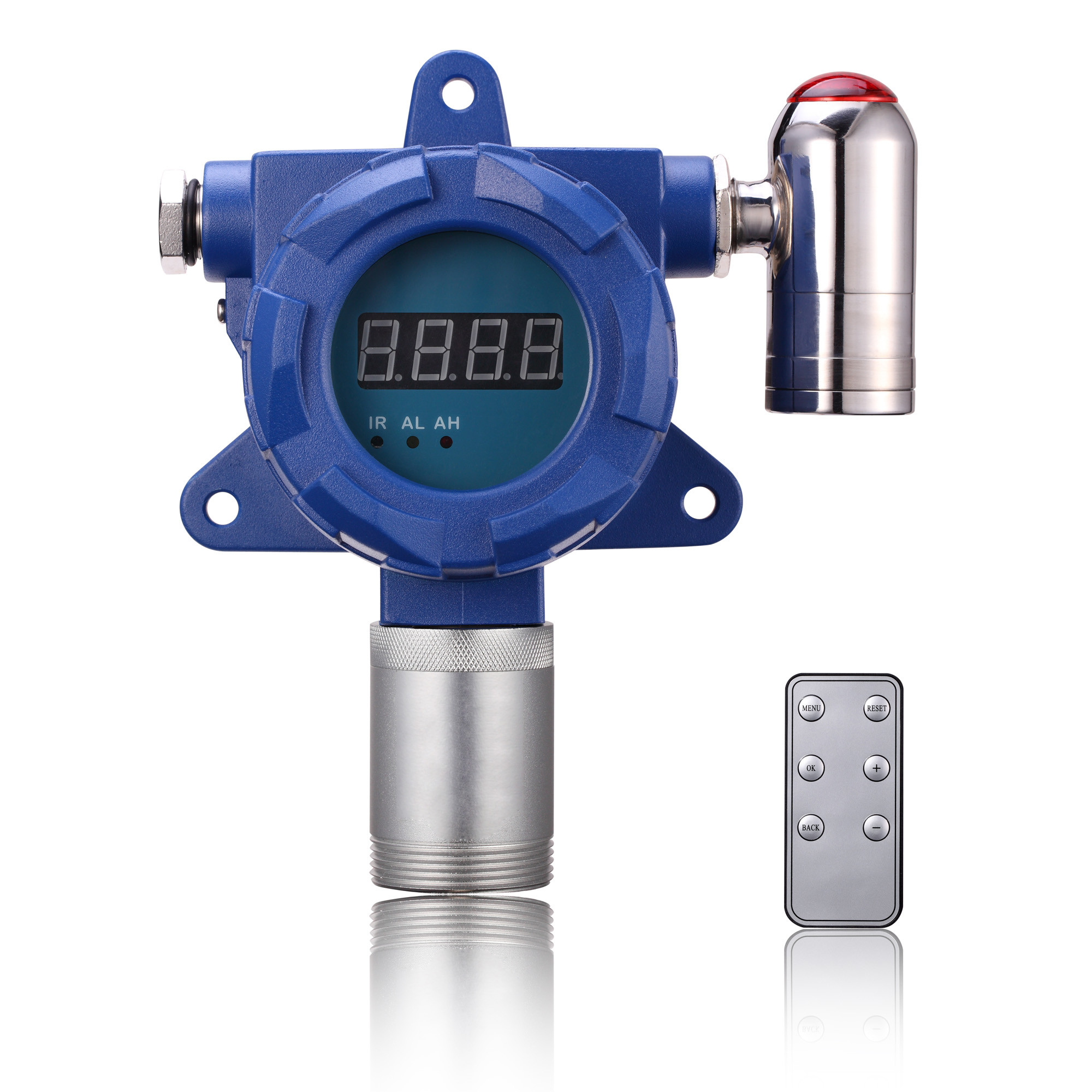

With infrared ray controller, which can remote control alarm
point settings, zero calibration, and address modification.
4-20mA current signal output, compatible with
different kinds of controllers.
RS485 MODBUS signal output.Relay signal output,
to turn on/off ventilator, generators or other external

Specification

Gas detected	SF6
Detection principle	PID
Install method	Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range	0-1000, 2000ppm
Resolution	0-1ppm
Precision	≤± 1-2% FS
Signal output	4-20mA, 0-5V, RS485, relay(optional)
Response time	≤10S	Recovery time	≤10S
Repeatability	≤±1%	Linearity error	≤±1%
Zero shift	≤±1%(FS/year)	Display	High-light nixie tube display
Connection mode	G1/2 external thread explosion-proof flexible pipe	Unit	%VOL
Temperature	-20 to 50°C	Humidity	0-95%RH
Explosion-proof	II 2G Ex db IIC T6 Gb IP65	Degree of protection	IP65
Alarm	Sound, light	Operating time	24H
Dimensions	18015090mm	Weight	≤2kg

Other normal gas types (Gases are not listed can be customized):

Flammable gas(EX)

Oxygen(O2)

Carbon monoxide(CO)

Hydrogen (H2)

Methane (CH4)

Carbon Dioxide(CO2)

Chlorine dioxide(CLO2)

Ozone(O3)

Ammonia(NH3)

Nitrogen(N2)

Tag:

Place of Origin:	China
Brand Name:	SZYUANTE
Certification:	ATEX/CE
Model Number:	YT-95H-SF6

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Aluminum Suitcase
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	100 pieces/week
